TRANSMISSION (MODEL K6/K7/K8/K9)

VL1500T BOULEVARD C90 2009 (K9) USA (E03)

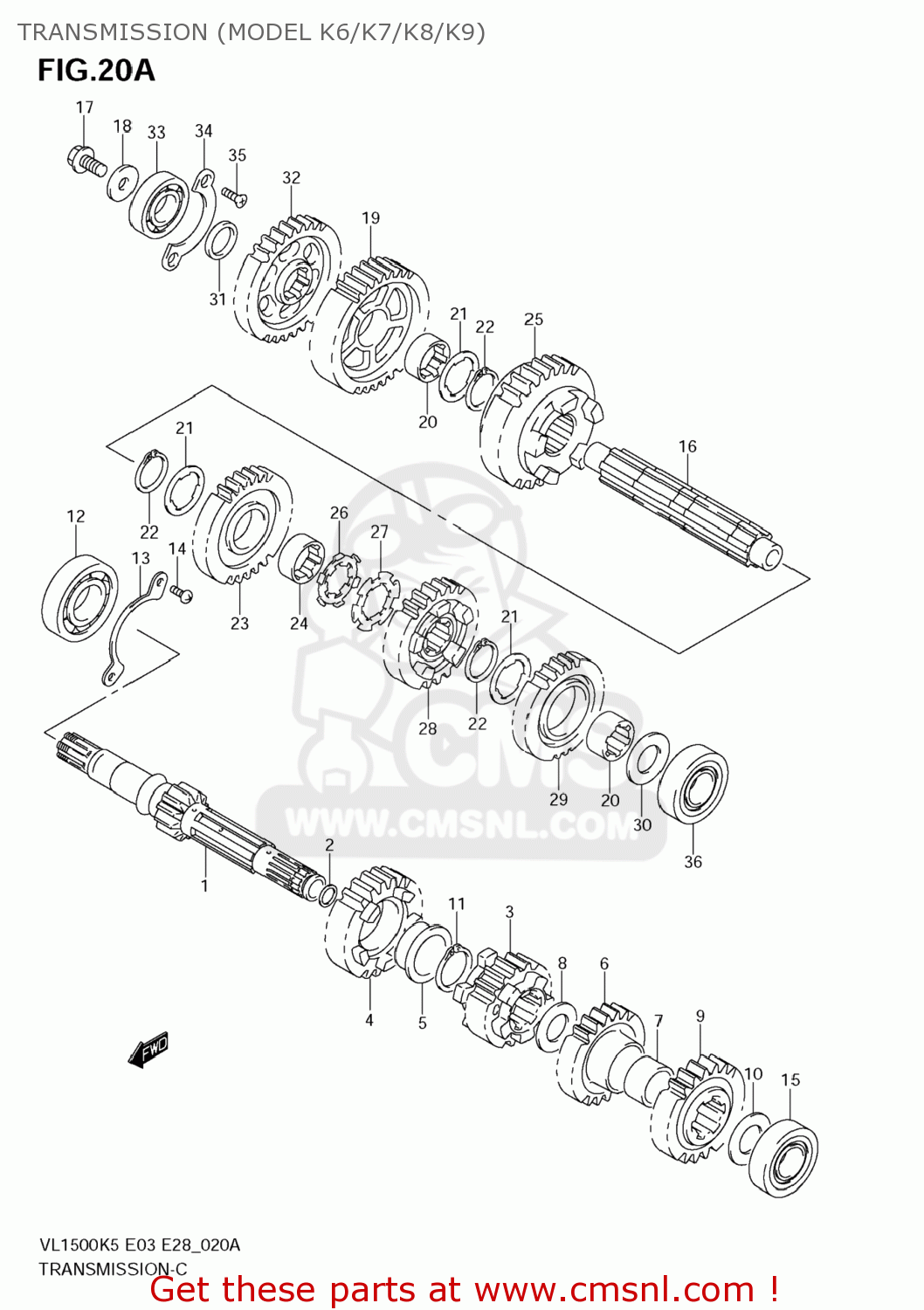

Transmission (model k6/k7/k8/k9) diagram VL1500T BOULEVARD C90 2009 (K9) USA (E03)

TRANSMISSION (MODEL K6/K7/K8/K9) VL1500T BOULEVARD C90 2009 (K9) USA (E03)
TRANSMISSION (MODEL K6/K7/K8/K9) VL1500T BOULEVARD C90 2009 (K9) USA (E03)
TRANSMISSION (MODEL K6/K7/K8/K9) VL1500T BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412038B20
ref: 1
SHAFT,COUNTER(NT:12)
2412038B20
€ 285.00
2
0928017004
ref: 2
O RING(D:1.9,ID:16.6)
0928017004
€ 3.00
3
2422110F00
ref: 3
GEAR,2ND DRIVE(NT:17)
2422110F00
€ 160.00
4
2423110F00
ref: 4
GEAR,3RD DRIVE(NT:21)
2423110F00
€ 155.00
5
0930128001
ref: 5
BUSH(28X32X2)
0930128001
€ 19.50
6
2424138B30
ref: 6
GEAR,4TH DRIVE
2424138B30
€ 181.00
7
2424238B10
ref: 7
BUSH,4TH DRIVE GEAR
2424238B10
€ 27.50
8
0918122195
ref: 8
SHIM(22X32X1)
€ 4.00
9
2425138B20
ref: 9
GEAR,5TH DRIVE(NT:26)
€ 121.50
10
0918120223
ref: 10
SHIM(20X32X1)
0918120223
€ 3.00
11
083313128A
ref: 11
CIRCLIP
€ 2.50
12
0926225080
ref: 12
BEARING(25X62X17)
0926225080
€ 21.50
13
2474138A00
ref: 13
RETAINER,CNTR SHAFT BEARING
2474138A00
€ 4.00
14
021120612B
ref: 14
SCREW
021120612B
€ 1.50
15
0926220080
ref: 15
BEARING(20X52X15)
0926220080
€ 21.50
16
2413138B20
ref: 16
SHAFT,DRIVE
2413138B20
€ 245.00
17
0910310112
ref: 17
BOLT(10X24)
0910310112
€ 4.00
18
0821110305
ref: 18
WASHER
0821110305
€ 3.00
19
2431110F00
ref: 19
GEAR,1ST DRIVEN(NT:36)
2431110F00
€ 119.50
20
2433224A00
ref: 20
BUSH
2433224A00
€ 18.00
21
0916728001
ref: 21
WASHER,LOCK
0916728001
€ 3.00
22
083313128A
ref: 22
CIRCLIP
€ 2.50
23
2432110F00
ref: 23
GEAR,2ND DRIVEN(NT:31)
2432110F00
€ 136.00
24
2433249000
ref: 24
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
25
2433110F00
ref: 25
GEAR,3RD DRIVEN(NT:28)
2433110F00
€ 181.00
26
0916928001
ref: 26
WASHER
0916928001
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
2434110F00
ref: 28
GEAR,4TH DRIVEN(NT:25)
2434110F00
€ 177.50
29
2435110F00
ref: 29
GEAR,5TH DRIVEN(NT:23)
€ 110.50
30
0821120382
ref: 30
WASHER
0821120382
€ 3.00
31
0916022032
ref: 31
WASHER(22X32X3)
0916022032
€ 4.00
32
2462138B00
ref: 32
GEAR,OVER DRIVING DRIVE(NT:34)
€ 183.50
33
0926222029
ref: 33
BEARING(22X56X16)
€ 45.50
34
2474138401
ref: 34
RETAINER,CNTR SHAFT BEARING
€ 5.50
35
0912606011
ref: 35
SCREW(6X12)
0912606011
€ 2.00
36
0926220080
ref: 36
BEARING(20X52X15)
0926220080
€ 21.50
