SECONDARY DRIVE GEAR

VL1500T BOULEVARD C90 2009 (K9) USA (E03)

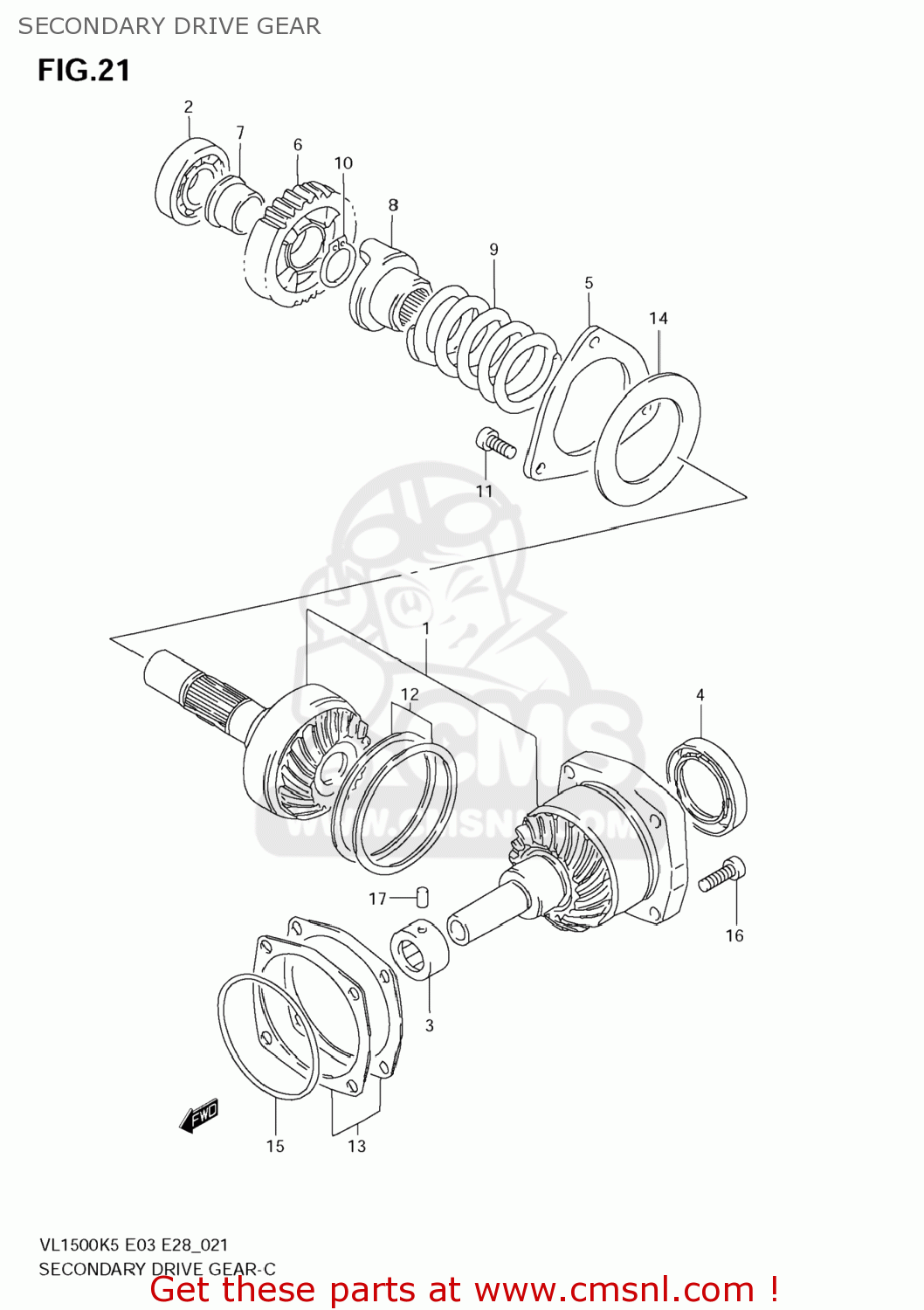

Secondary drive gear diagram VL1500T BOULEVARD C90 2009 (K9) USA (E03)

SECONDARY DRIVE GEAR VL1500T BOULEVARD C90 2009 (K9) USA (E03)
SECONDARY DRIVE GEAR VL1500T BOULEVARD C90 2009 (K9) USA (E03)
SECONDARY DRIVE GEAR VL1500T BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2490010810
ref: 1
GEAR & HOUSING SET,SECONDARY
€ 965.00
2
0926225080
ref: 2
BEARING(25X62X17)
0926225080
€ 21.50
3
0926320038
ref: 3
BEARING(20X34X16)
0926320038
€ 30.50
4
0928344010
ref: 4
SEAL,OIL(44X68X8)
0928344010
€ 51.00
5
2493138B00
ref: 5
STOPPER,SEC DRIVE BEARING
2493138B00
€ 39.00
6
2463138B00
ref: 6
GEAR,OVER DRIVING DRIVEN
€ 183.50
7
2463238B01
ref: 7
BUSHING,OD DRIVEN GEAR
2463238B01
€ 24.50
8
2492238B01
ref: 8
DOG,OUTPUT CAM
2492238B01
€ 43.50
9
2492410F00
ref: 9
SPRING,SECONDARY DAMPER
€ 46.00
10
083313126A
ref: 10
CIRCLIP
083313126A
€ 2.50
11
071300820B
ref: 11
BOLT
071300820B
€ 3.00
12
2493538820
ref: 12
SHIM SET,SEC DRIVE
€ 95.00
12
2493538820
ref: 12
SHIM SET,SEC DRIVE
€ 95.00
13
2494538810
ref: 13
SHIM SET,SEC DRIVEN
2494538810
€ 33.00
13
2494538810
ref: 13
SHIM SET,SEC DRIVEN
2494538810
€ 33.00
14
0916057001
ref: 14
WASHER(57X90X3)
€ 17.00
15
0928078003
ref: 15
O RING(D:3.7,ID:76.5)
0928078003
€ 6.00
16
071300825B
ref: 16
BOLT
071300825B
€ 3.50
17
0422107129
ref: 17
PIN
0422107129
€ 1.50
