AIR CLEANER (MODEL K9)

VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

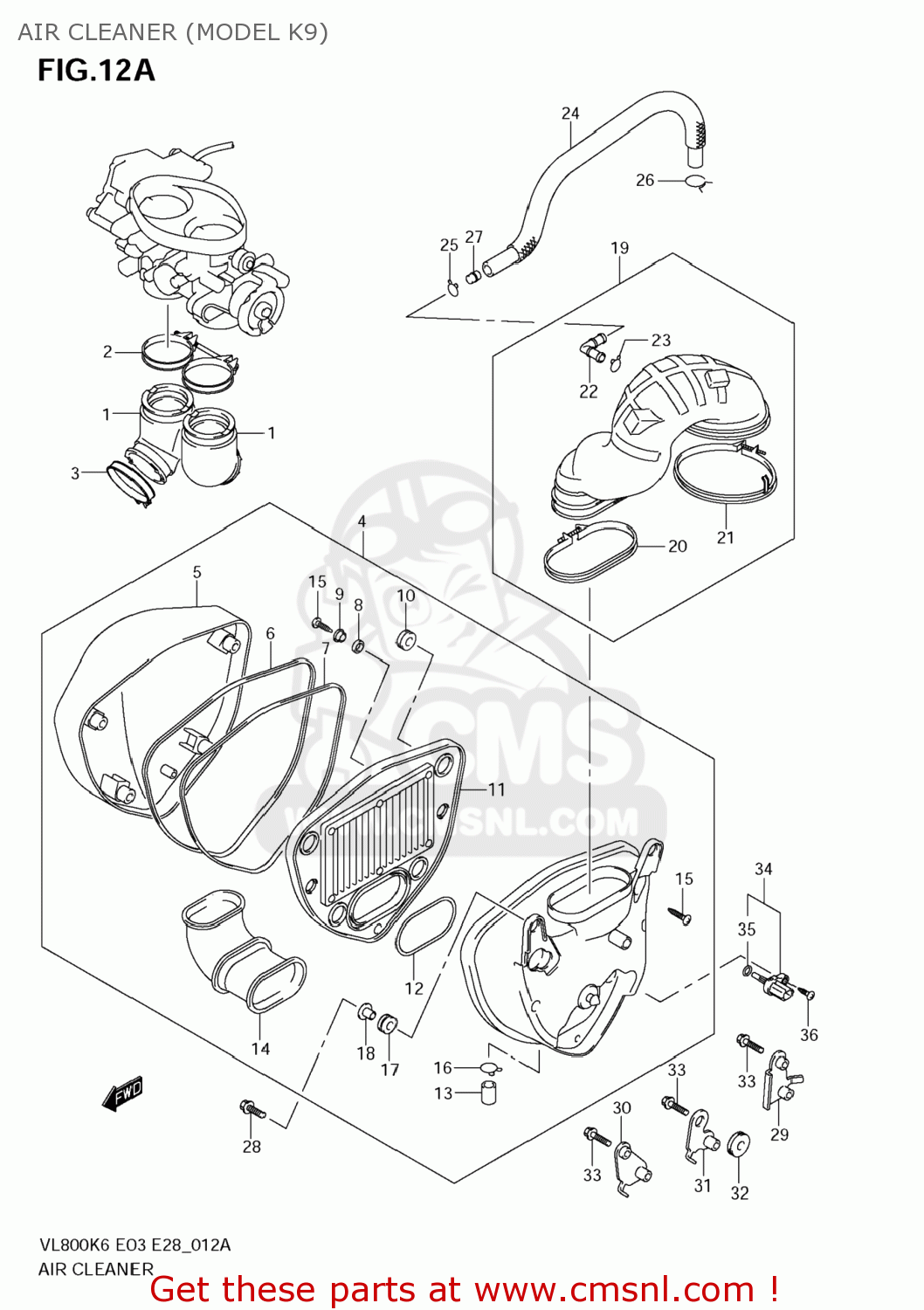

Air cleaner (model k9) diagram VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1311141F10
ref: 1
13111-41F11

PIPE,INTAKE

€ 31.00

2

1317039G00
ref: 2

CLAMP,INTAKE PIPE

€ 19.00

3

1317015G00
ref: 3

CLAMP,INTAKE PIPE

€ 4.00

4

1370139G20
ref: 4

CASE ASSY,AIR CLEANER

€ 329.00

5

1374139G20
ref: 5

CAP,AIR CLEANER

€ 156.50

6

1372739G20
ref: 6

GASKET (NAS)

€ 11.50

7

1372639G20
ref: 7

GASKET (NAS)

€ 11.50

8

1374739G20
ref: 8

CUSHION

€ 2.50

9

0916906082
ref: 9

WASHER

€ 2.50

10

1374741F00
ref: 10

CUSHION

€ 2.50

11

1378039G20
ref: 11

FILTER,AIR CLEANER

€ 36.50

12

1374639G20
ref: 12

GASKET,FILTER (NAS)

€ 8.00

13

1385447D50
ref: 13

PLUG

€ 5.50

14

1389139G20
ref: 14

TUBE,INLET

€ 20.00

15

035410525B
ref: 15

SCREW

€ 2.50

16

0940114301
ref: 16

CLIP

€ 2.00

17

0932009016
ref: 17

CUSHION

€ 2.50

18

1381229C50
ref: 18

COLLAR,CLEANER CASE

€ 1.50

19

1388039G20
ref: 19
13880-39G21

TUBE ASSY,OUTL

€ 130.50

20

1382641F20
ref: 20

CLAMP

€ 14.50

21

1382639G20
ref: 21

CLAMP

€ 22.00

22

1385814D10
ref: 22
13858-14D20

JOINT

€ 6.00

23

0940115101
ref: 23

CLIP

€ 2.00

24

1385339G20
ref: 24

TUBE,BREATHER

€ 18.00

25

0940115101
ref: 25

CLIP

€ 2.00

26

0940116301
ref: 26

CLAMP

€ 2.50

27

1385914D40
ref: 27

JET,BREATHER

€ 3.00

28

0913906063
ref: 28

SCREW(6X20)

€ 4.00

29

1376139G20
ref: 29

BRACKET,AIR CLEANER NO.1

€ 12.00

30

1376239G20
ref: 30

BRACKET,AIR CLEANER NO.2

€ 12.00

31

1376339G20
ref: 31

BRACKET,AIR CLEANER NO.3

€ 11.50

32

0932008028
ref: 32

CUSHION

€ 2.50

33

015470625A
ref: 33

BOLT

€ 2.50

34

1365041F10
ref: 34

SENSOR,AIR TEMP

€ 41.50

35

1365541F10
ref: 35

O RING

€ 7.00

36

035110516B
ref: 36

SCREW

€ 2.50
