WINDSHIELD C50T

VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

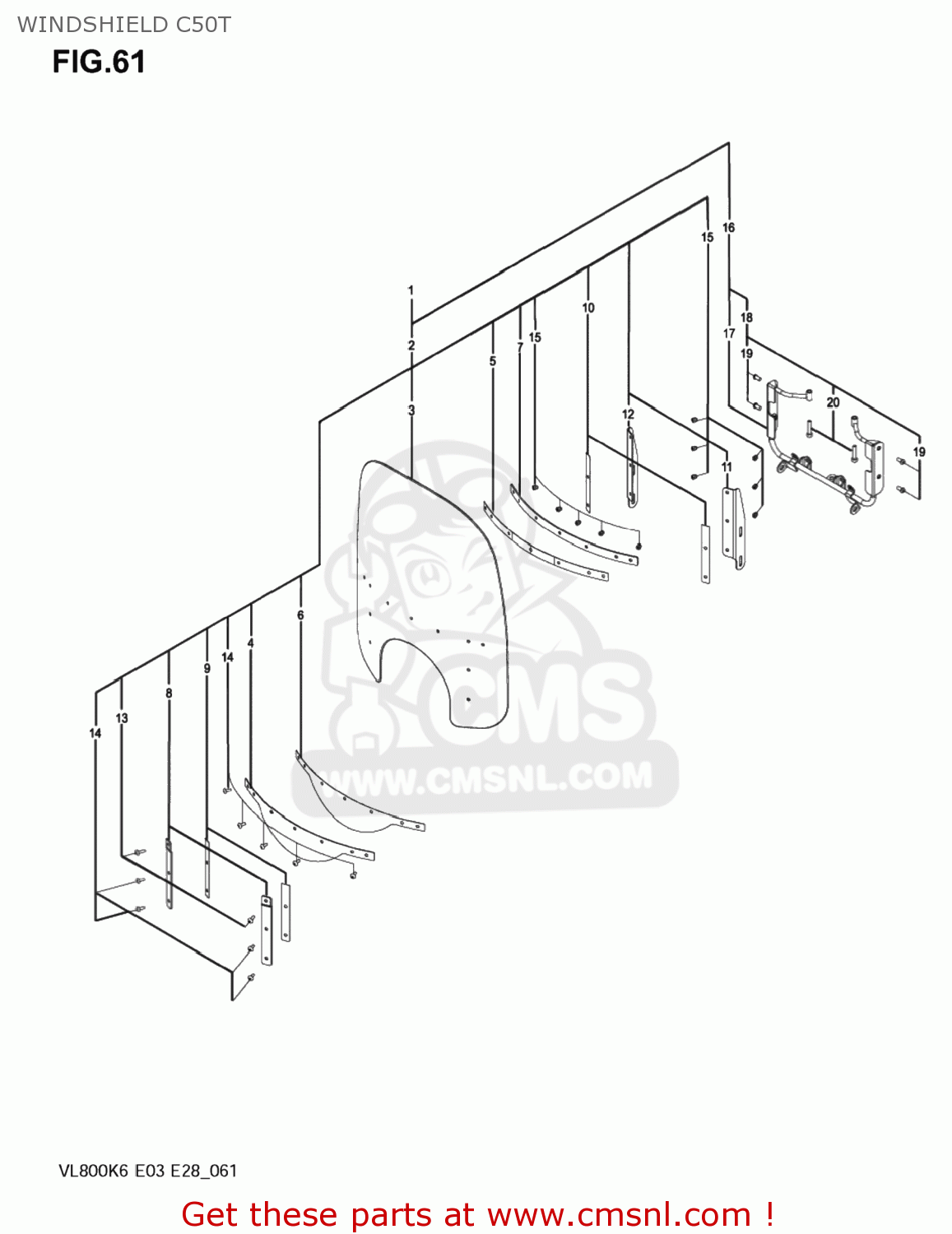

Windshield c50t diagram VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

WINDSHIELD C50T VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

WINDSHIELD C50T VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

990A070022TRG
ref: 1

C50T CLASSIC WN

€ 0.00

3

990A070002003
ref: 3
990A0-70022-003

C50VL8 WINDSHLD

€ 140.50

4

990A070005016
ref: 4

OUTSIDE PLATE,HORIZONTAL

€ 0.00

5

990A070005017
ref: 5

GASKET,HORIZONTAL (NAS)

€ 0.00

6

990A070005018
ref: 6

GASKET,HORIZONTAL (NAS)

€ 0.00

7

990A070005019
ref: 7

INSIDE STRIP,HORIZONTAL

€ 89.50

8

990A070005020
ref: 8

OUTSIDE STRIP,VERTICAL

€ 0.00

9

990A070005021
ref: 9

GASKET,VERT,OUTSIDE STRIP (NAS)

€ 0.00

10

990A070005022
ref: 10

GASKET,VERT,INSIDE STRIP (NAS)

€ 0.00

11

990A070002004
ref: 11

BRACKET,FRAME,VERT,LH

€ 0.00

12

990A070002005
ref: 12

BRACKET,FRAME,VERT,RH

€ 0.00

13

990A070005012
ref: 13

CAP SCREW M6-1.0X20,SS,

€ 3.50

13

990A070005012
ref: 13

CAP SCREW M6-1.0X20,SS,

€ 3.50

14

990A070005013
ref: 14

CAP SCREW M6-1.0X16,SS,

€ 3.50

14

990A070005013
ref: 14

CAP SCREW M6-1.0X16,SS,

€ 3.50

15

990A070005014
ref: 15

NUT,HEX CAP, M6-1.0 88

€ 3.50

16

990A070002006
ref: 16

HARDWARE KIT,C50T WINDSHIELD

€ 0.00

17

990A070002007
ref: 17

BRACE,COMPLETE,WINDSHIELD

€ 0.00

17

990A070002007
ref: 17

BRACE,COMPLETE,WINDSHIELD

€ 0.00

19

990A070005028
ref: 19

CAP SCREW M8-1.25X16,SS

€ 0.00

20

990A070002008
ref: 20

CAP SCREW M8-1.25X40,SS

€ 0.00
