SPEEDOMETER (VL800CK9)

VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

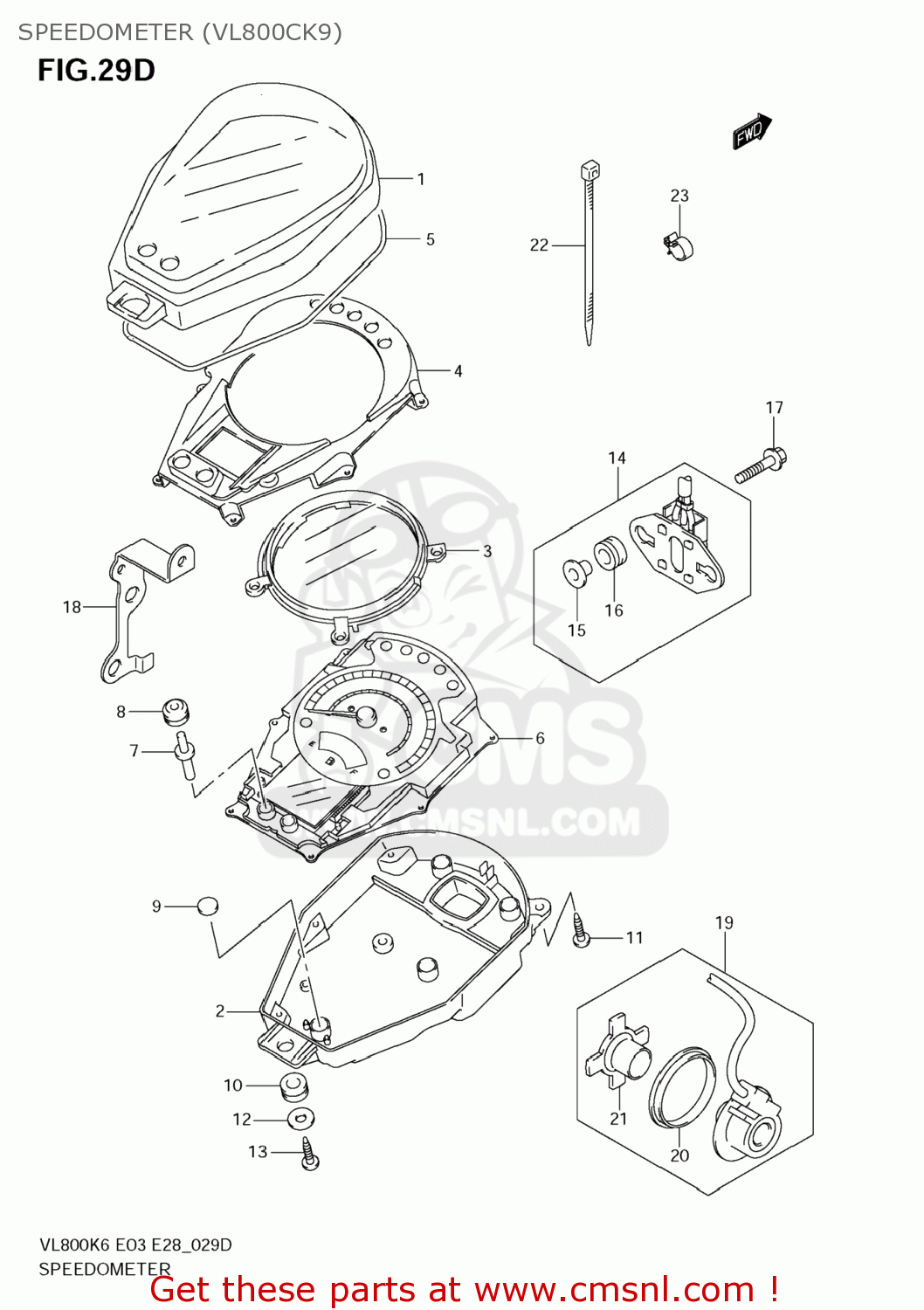

Speedometer (vl800ck9) diagram VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800CK9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800CK9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3415143H00
ref: 1

CASE,UPR

€ 120.50

2

3415643H00
ref: 2

COVER

€ 27.00

3

3419343H00
ref: 3

RING

€ 71.50

4

3412543H00
ref: 4

PLATE,SPEEDOMETER

€ 41.00

5

3415343H00
ref: 5

PACKING (NAS)

€ 18.00

6-1

3412043H10
ref: 6-1

SPEEDOMETER

€ 810.50

6-2

3412043H00
ref: 6-2

SPEEDOMETER

€ 647.50

7

3412416G00
ref: 7

KNOB,SPEEDOMETER

€ 6.00

8

3412644G00
ref: 8

COVER,SPEEDOMETER

€ 7.00

9

3416713E00
ref: 9

SEAL

€ 5.50

10

3499643410
ref: 10

CUSHION,METER

€ 3.00

11

3418329F00
ref: 11

SCREW(3X12)

€ 3.00

12

0916005037
ref: 12

WASHER(5.5X16X1.2)

€ 1.50

13

035410516A
ref: 13

SCREW

€ 1.50

14

3651039F00
ref: 14

RESISTOR ASSY

€ 72.00

15

0918006319
ref: 15

SPACER(6.5X10X11.6)

€ 3.50

16

0932010015
ref: 16

CUSHION

€ 2.50

17

0911606047
ref: 17

BOLT(6X25)

€ 2.00

18

3493841F50
ref: 18

GUIDE,SPEED SENSOR LEAD

€ 7.50

19

3499041F10
ref: 19

SENSOR,SPEED

€ 163.00

20

0928644001
ref: 20

SEAL,OIL(44X55X6)

€ 10.00

21

3498327G00
ref: 21

MAGNETO

€ 26.00

22

0940714407
ref: 22

CLAMP(L:145)

€ 4.00

23

0940306410
ref: 23

CLAMP

€ 2.00
