THROTTLE BODY (MODEL K9)

VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

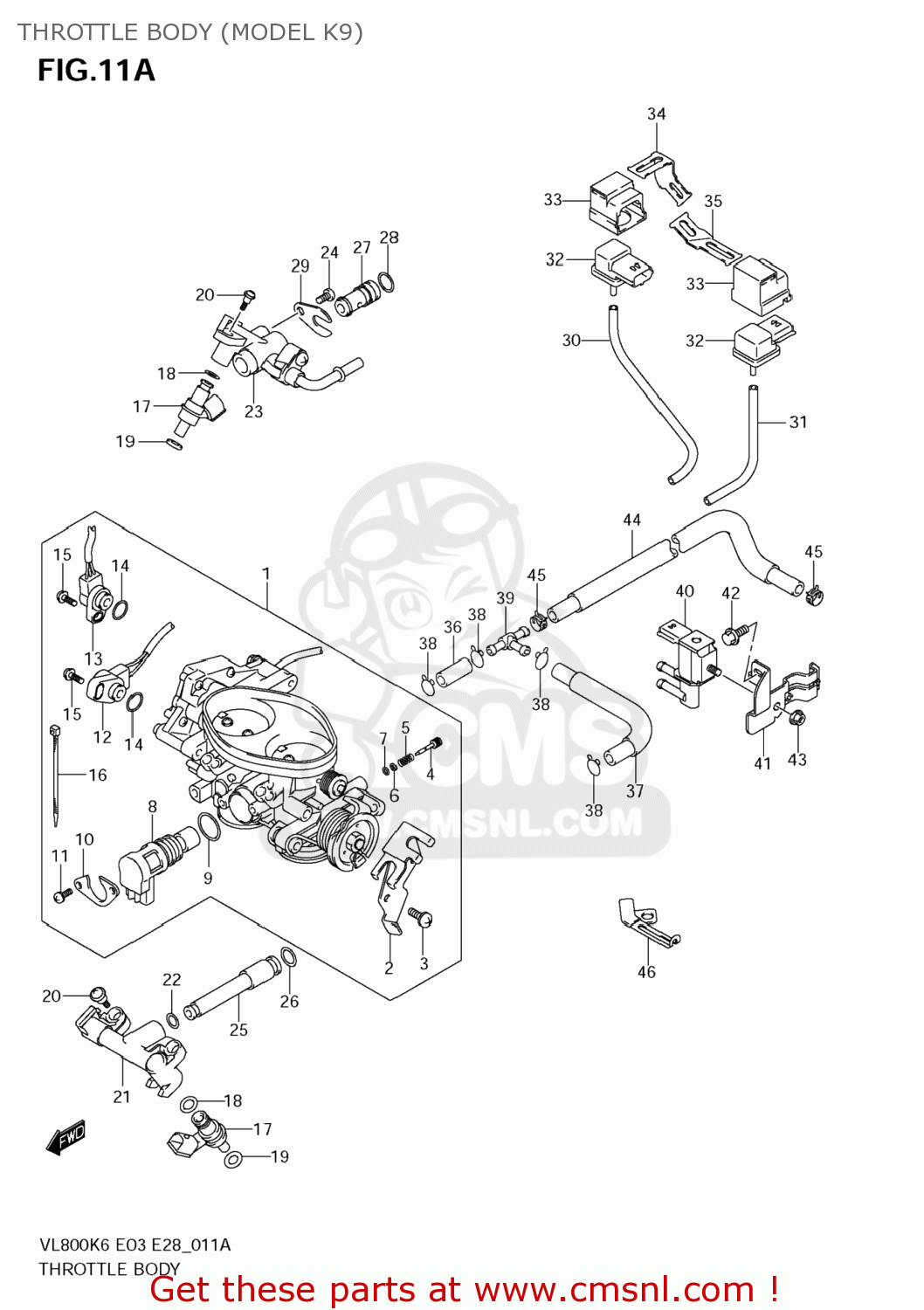

Throttle body (model k9) diagram VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

THROTTLE BODY (MODEL K9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

THROTTLE BODY (MODEL K9) VL800T BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

1340141F20
ref: 1-1
13401-41F21

BODY ASSY,THRO

€ 960.00

1-2

1340141F30
ref: 1-2

BODY ASSY THROT

€ 699.00

2

1356541F20
ref: 2

PLATE,STAY

€ 75.00

3

1360121H00
ref: 3

SCREW

€ 2.50

4

1326918G00
ref: 4

SCREW,AIR ADJUST

€ 7.50

5

1327143E00
ref: 5

SPRING

€ 4.00

6

1329126E00
ref: 6

WASHER

€ 3.00

7

1329526E00
ref: 7

O RING

€ 4.50

8

1811715H10
ref: 8
18117-15H11

VALVE ASSY,ISC

€ 233.00

9

1811905H00
ref: 9

O RING

€ 2.50

10

1342815H00
ref: 10

PLATE,ISC VALVE

€ 19.50

11

1360515H00
ref: 11

SCREW

€ 4.50

12

1358040F20
ref: 12

SENSOR ASSY,TH

€ 163.50

13

1358041F00
ref: 13

SENSOR ASSY,TH

€ 158.50

14

1357540F00
ref: 14

O RING

€ 3.50

15

1360540F00
ref: 15

SCREW

€ 3.00

16

0940714407
ref: 16

CLAMP(L:145)

€ 4.00

17

1571026GA0
ref: 17

INJECTOR ASSY

€ 282.50

18

1572121H00
ref: 18

O RING

€ 7.00

19

1572221H00
ref: 19

RING,SEAL

€ 9.50

20

1360234F50
ref: 20

SCREW,THROTTLE COVER

€ 2.50

21

1347341FA0
ref: 21

PIPE SET,FUEL FR

€ 49.50

22

1572124F00
ref: 22

O RING

€ 7.50

23

1347341FB0
ref: 23

PIPE SET,FUEL RR

€ 63.50

24

1360210F10
ref: 24

SCREW

€ 2.50

25

1347341FC0
ref: 25

JOINT

€ 8.50

26

1572110G00
ref: 26

O RING

€ 7.00

27

1347441F20
ref: 27

PLUG,STRAIGHT

€ 4.00

28

1572141F20
ref: 28

O RING

€ 13.50

29

1347541F20
ref: 29

PLATE,STAY

€ 3.50

30

1368341FA0
ref: 30

HOSE

€ 15.00

31

1368341FD0
ref: 31

TUBE,RUBBER

€ 19.00

32

1859142F00
ref: 32

SENSOR,PRESSURE

€ 367.00

33

1859542F20
ref: 33

HOLDER,SENSOR

€ 15.00

34

1859841F00
ref: 34

BRACKET,BOOST SENSOR FR

€ 3.50

35

1859939G00
ref: 35

BRACKET,BOOST SENSOR RR

€ 3.50

36

1368341FC1
ref: 36

HOSE

€ 4.00

37

1368241F30
ref: 37

TUBE,RUBBER

€ 13.00

38

1369324F00
ref: 38

CLIP

€ 2.00

39

1368548B00
ref: 39

NIPPLE

€ 9.00

40

1811752G00
ref: 40

VALVE ASSY,DUTY FOR PURGE

€ 66.00

41

1811939G00
ref: 41

BRACKET,PURGE VALVE

€ 11.50

42

015500612B
ref: 42

BOLT

€ 2.50

43

083161006A
ref: 43

NUT

€ 2.50

44

1368039G00
ref: 44

HOSE,CANISTER PURGE

€ 26.00

45

0940110409
ref: 45

CLIP

€ 2.50

46

4448041F00
ref: 46

CLAMP,EVAPORATOR HOSE

€ 0.00
