FRONT FENDER (VL800K4/K5)

VL800Z VOLUSIA 2002 (K2) USA (E03)

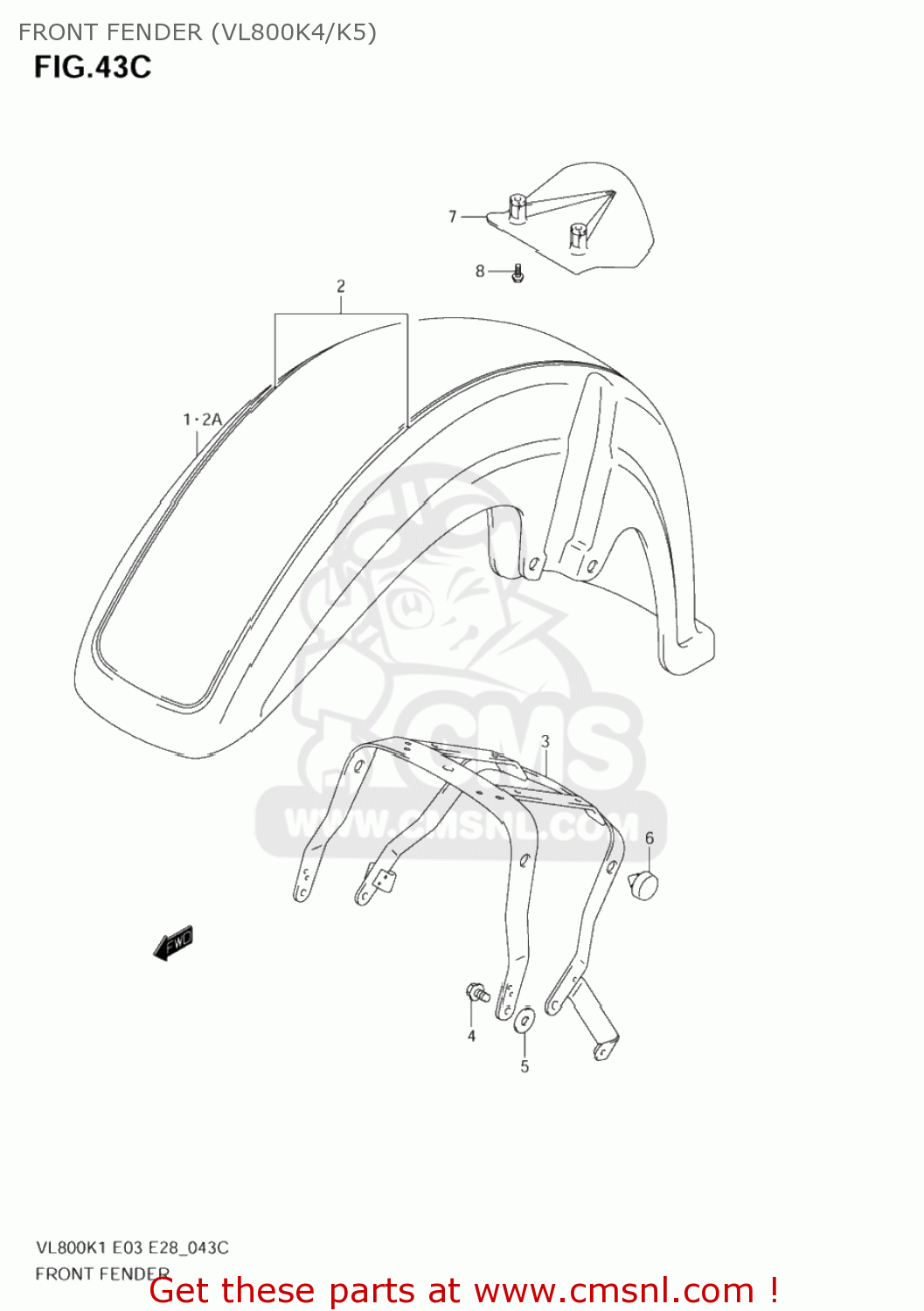

Front fender (vl800k4/k5) diagram VL800Z VOLUSIA 2002 (K2) USA (E03)

FRONT FENDER (VL800K4/K5) VL800Z VOLUSIA 2002 (K2) USA (E03)

FRONT FENDER (VL800K4/K5) VL800Z VOLUSIA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311041F30YAY
ref: 1-1

FENDER,FR

€ 410.50

1-2

5311041F30AAV
ref: 1-2

FENDER,FR

€ 444.50

1-3

5311041F30AAW
ref: 1-3

FENDER,FR

€ 563.00

1-4

5311041F30NY3
ref: 1-4

FENDER,FR

€ 441.00

1-5

5311041F30AVU
ref: 1-5

FENDER,FR

€ 488.00

2A

5311141F00YAY
ref: 2A

FENDER,FR

€ 325.50

2-1

6815041F10ADK
ref: 2-1

TAPE SET,FR FENDER

€ 108.50

2-2

6815041F10ABZ
ref: 2-2

TAPE SET,FR FENDER

€ 81.50

2-3

6815041F10ACA
ref: 2-3

TAPE SET,FR FENDER

€ 81.50

2-4

6815041F10BEL
ref: 2-4
68150-41F10-BSW

TAPE SET,FR FE

€ 104.50

2-5

6815041F10BEM
ref: 2-5

TAPE SET,FR FENDER

€ 80.50

3-1

5312041F10
ref: 3-1
53120-41F12

BRACE,FR FENDER

€ 75.00

3-2

5312041F11
ref: 3-2
53120-41F12

BRACE,FR FENDER

€ 75.00

4

0155006203
ref: 4
01550-0620A

BOLT

€ 2.50

5

5327641F00
ref: 5

WASHER,FR FENDER

€ 6.00

6

0932110007
ref: 6

CUSHION

€ 4.50

7

5318141F00
ref: 7

WING,FR

€ 7.00

8

0911306001
ref: 8

BOLT(6X16)

€ 3.00
