REAR CYLINDER HEAD
VL800Z VOLUSIA 2002 (K2) USA (E03)

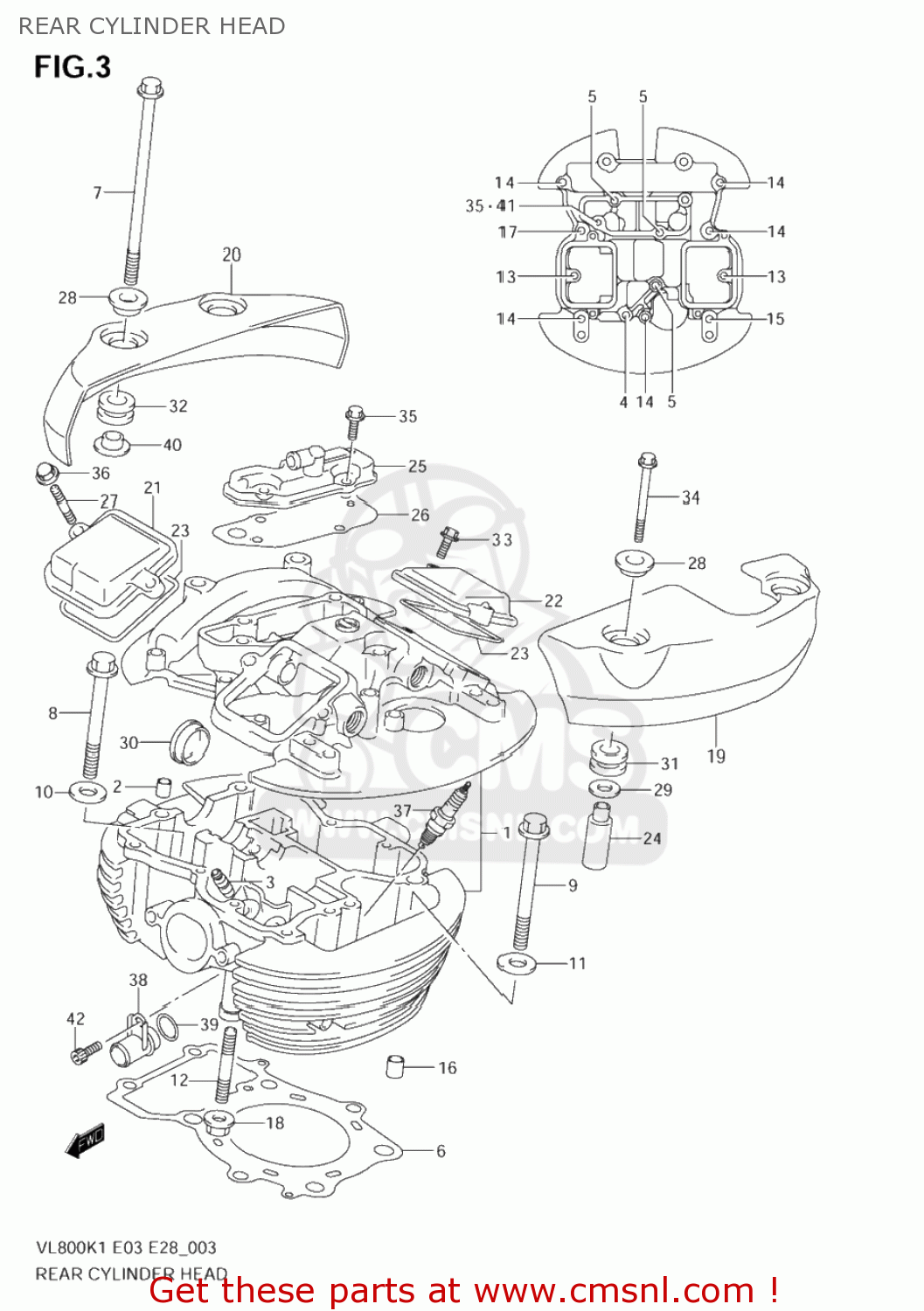

Rear cylinder head diagram VL800Z VOLUSIA 2002 (K2) USA (E03)
REAR CYLINDER HEAD VL800Z VOLUSIA 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110341F01
ref: 1-1
HEAD ASSY,CYLINDER RR
€ 978.50
1-2
1110341FA0
ref: 1-2
HEAD ASSY,CYLINDER RR
€ 978.50
2
0920611004
ref: 2
PIN(8.4X11X14)
€ 6.00
3
1111538A71
ref: 3
11115-41F70
GUIDE,VALVE
€ 18.50
4
0910306101
ref: 4
BOLT(6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114241F00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
€ 27.50
7
0910308370
ref: 7
BOLT(8X250)
€ 11.00
8
0910310133
ref: 8
BOLT(10X155)
€ 7.50
9
0910310134
ref: 9
BOLT(10X165)
€ 7.50
10
0916008130
ref: 10
WASHER(8.5X24X1.6)
€ 2.00
11-1
0916010060
ref: 11-1
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
11-2
0916010039
ref: 11-2
WASHER(10.5X22X2.3)
€ 2.50
12-1
0910808144
ref: 12-1
BOLT,STUD
€ 4.50
12-2
0142108403
ref: 12-2
TAPEIND
€ 2.50
13
0155006253
ref: 13
01550-0625A
BOLT
€ 2.50
14
0155006303
ref: 14
01550-0630A
BOLT
€ 2.50
15
0155006403
ref: 15
01550-0640A
BOLT
€ 2.00
16
0421113189
ref: 16
PIN
€ 2.50
17
0712006303
ref: 17
07120-0630B
BOLT
€ 3.00
18
0831610083
ref: 18
08316-1008B
NUT
€ 3.00
19-1
1117341F00
ref: 19-1
CAP,CYLINDER HEAD COVER RL
€ 130.50
19-2
1117341FA0
ref: 19-2
CAP,CYLINDER HEAD COVER RR,L
€ 99.50
20
1117441F00
ref: 20
CAP,CYLINDER HEAD COVER RR
€ 103.00
21
1117538A11
ref: 21
CAP,INSPECTION INTAKE
€ 14.50
22
1117638A11
ref: 22
CAP,INSPECTION EXHAUST
€ 14.50
23
1117738A00
ref: 23
GASKET,INSPECTION CAP (NAS)
€ 5.00
24
1117910F10
ref: 24
SPACER,CYL HEAD COVER CAP NO.2
€ 8.00
25-1
1118641F00
ref: 25-1
COVER,BREATHER
€ 16.00
25-2
1118641FA0
ref: 25-2
COVER,BREATHER
€ 14.50
26-1
1118741F00
ref: 26-1
11187-41F10
GASKET,BREATHE (NAS)
€ 6.00
26-2
1118741F10
ref: 26-2
GASKET,BREATHER COVER (NAS)
€ 6.00
27
0910806102
ref: 27
BOLT,STUD
€ 3.00
28
0916006084
ref: 28
WASHER(6.5X18X1.6)
€ 2.00
29
0916009016
ref: 29
WASHER(9.5X20X1)
€ 2.00
30
0924130004
ref: 30
PLUG(OD:30)
€ 6.50
31
0932009016
ref: 31
CUSHION
€ 2.50
32
0932013015
ref: 32
CUSHION
€ 3.00
33
0154706203
ref: 33
01547-0620B
SCREW
€ 2.50
34
0154706507
ref: 34
BOLT
€ 2.50
35
0155006203
ref: 35
01550-0620A
BOLT
€ 2.50
36-1
0831320063
ref: 36-1
08313-2006A
NUT
€ 2.00
36-2
0915906093
ref: 36-2
NUT
€ 2.00
37-1
0948200354
ref: 37-1
PLUG,SPARK(DPR7EA-9)
€ 4.00
37-2
0948200355
ref: 37-2
09482-00354
SPARK PLUG X22E
€ 4.00
37-3
0948200330
ref: 37-3
PLUG,SPARK(DPR9EA-9)
€ 4.00
37-4
0948200331
ref: 37-4
PLUG,SPARK(X27EPR-U9)
€ 4.00
37-5
0948200334
ref: 37-5
PLUG,SPARK(DPR8EA-9)
€ 4.00
37-6
0948200335
ref: 37-6
PLUG,SPARK(X24EPR-U9)
€ 4.00
38-1
1789141F00
ref: 38-1
17891-41F10
UNION,CYL HEAD
€ 11.50
38-2
1789141F10
ref: 38-2
UNION,CYL HEAD JOINT
€ 11.50
39
0928016005
ref: 39
O RING(D:2.4,ID:15.8)
€ 1.50
40
0930108007
ref: 40
BUSH
€ 4.00
41
0916806023
ref: 41
GASKET(5.8X13X1.2) (NAS)
€ 2.00
42
0713006123
ref: 42
07130-0612A
BOLT,STRANGER
€ 2.50
