STARTING MOTOR
VL800Z VOLUSIA 2002 (K2) USA (E03)

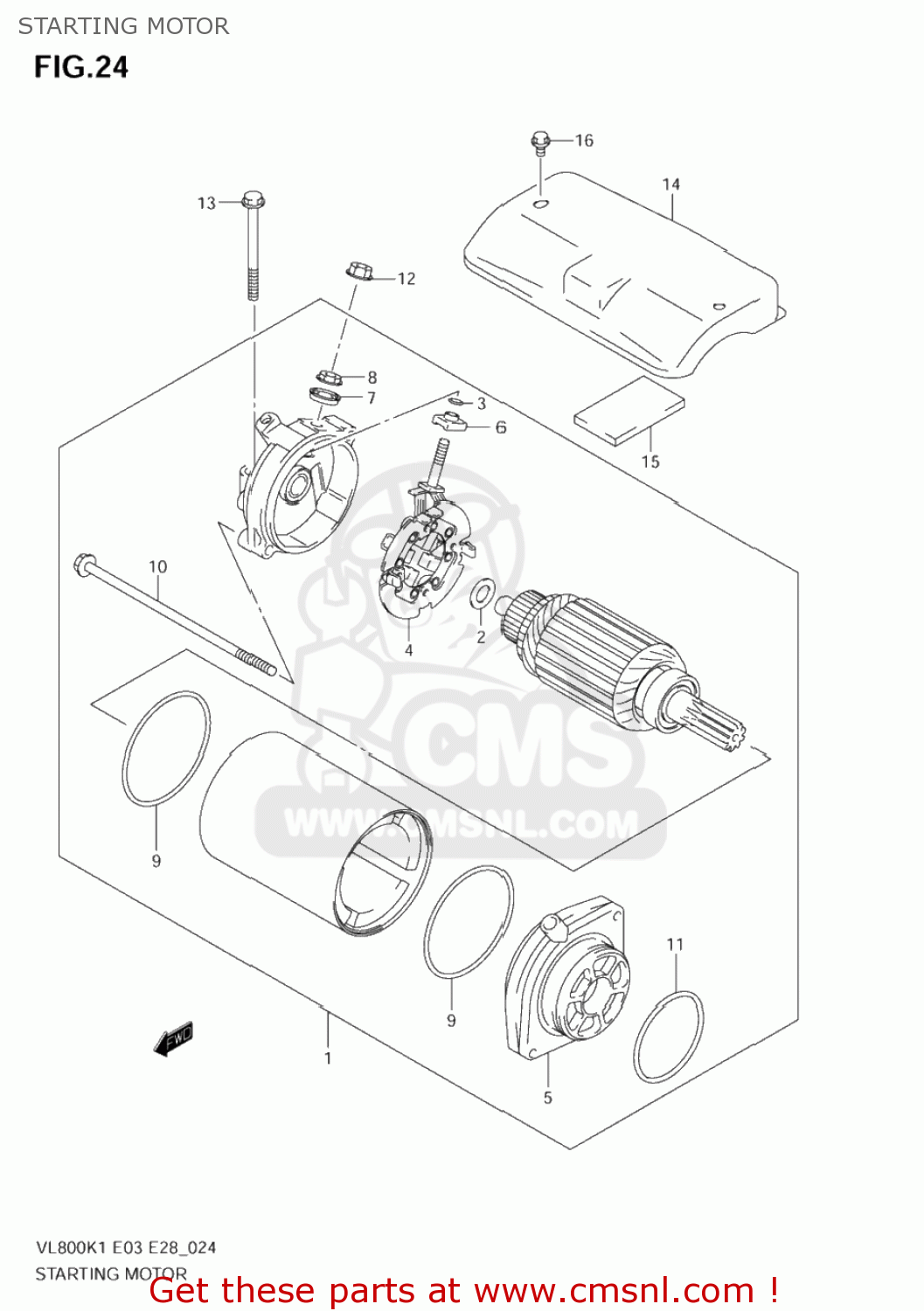

Starting motor diagram VL800Z VOLUSIA 2002 (K2) USA (E03)
STARTING MOTOR VL800Z VOLUSIA 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110045C01
ref: 1
MOTOR ASSY,STARTING
€ 472.00
2
3117043400
ref: 2
SHIM SET,STARTING MOTOR
€ 3.50
3
3114338300
ref: 3
O RING
€ 3.50
4
3113245C00
ref: 4
HOLDER SET,BRUSH
€ 46.00
5
3115038A00
ref: 5
BRACKET SET
€ 79.50
6
3117238300
ref: 6
BUSHING
€ 4.00
7
3117388C00
ref: 7
BUSHING
€ 6.00
8
0831000067
ref: 8
NUT
€ 2.50
9
3126444110
ref: 9
O RING
€ 8.00
10
3128124B10
ref: 10
BOLT
€ 5.00
11
3115638A00
ref: 11
O RING
€ 8.00
12
0836135068
ref: 12
08361-3506A
NUT
€ 2.00
13
0154706603
ref: 13
01547-0660B
BOLT
€ 3.50
14
3121041F00
ref: 14
COVER,STARTING MOTOR
€ 11.00
15
3121238A10
ref: 15
DAMPER,MOTOR COVER
€ 4.50
16
0154705083
ref: 16
01547-0508B
BOLT
€ 2.50
