FUEL PUMP (MODEL K5)

VL800Z VOLUSIA 2002 (K2) USA (E03)

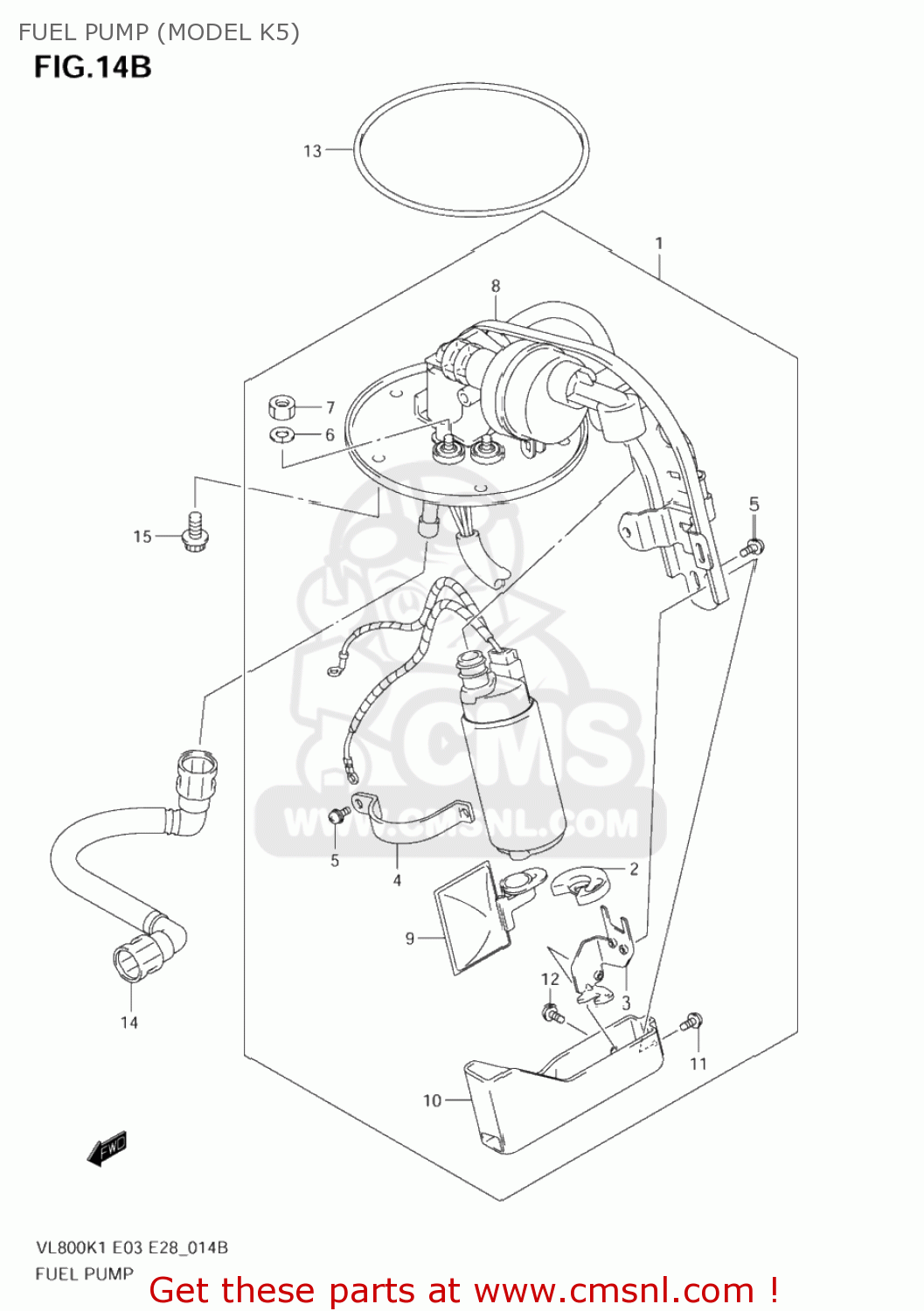

Fuel pump (model k5) diagram VL800Z VOLUSIA 2002 (K2) USA (E03)

FUEL PUMP (MODEL K5) VL800Z VOLUSIA 2002 (K2) USA (E03)
FUEL PUMP (MODEL K5) VL800Z VOLUSIA 2002 (K2) USA (E03)
FUEL PUMP (MODEL K5) VL800Z VOLUSIA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1510041F10
ref: 1
PUMP ASSY,FUEL
1510041F10
€ 765.00
2
1511141F10
ref: 2
CUSHION
€ 10.50
3
1511241F10
ref: 3
HOLDER
€ 17.50
4
1511510F00
ref: 4
BAND,FUEL PUMP
€ 12.00
5
1511610F10
ref: 5
SCREW
€ 3.50
6
1517235F00
ref: 6
WASHER,SPRING
€ 4.00
7
1517335F00
ref: 7
NUT
€ 4.50
8
1541041F10
ref: 8
PLATE ASSY
€ 225.00
9
1542041F10
ref: 9
STRAINER
1542041F10
€ 60.50
10
1542541F10
ref: 10
VESSEL
€ 21.50
11
1542941F10
ref: 11
SCREW
€ 3.50
12
1542941F20
ref: 12
SCREW
€ 3.50
13
1520135F00
ref: 13
O RING,FUEL PUMP
1520135F00
€ 26.00
14
1581041F00
ref: 14
HOSE,FUEL
1581041F00
€ 67.00
15
0712006123
ref: 15
07120-0612B
BOLT
€ 3.50
