BATTERY

VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

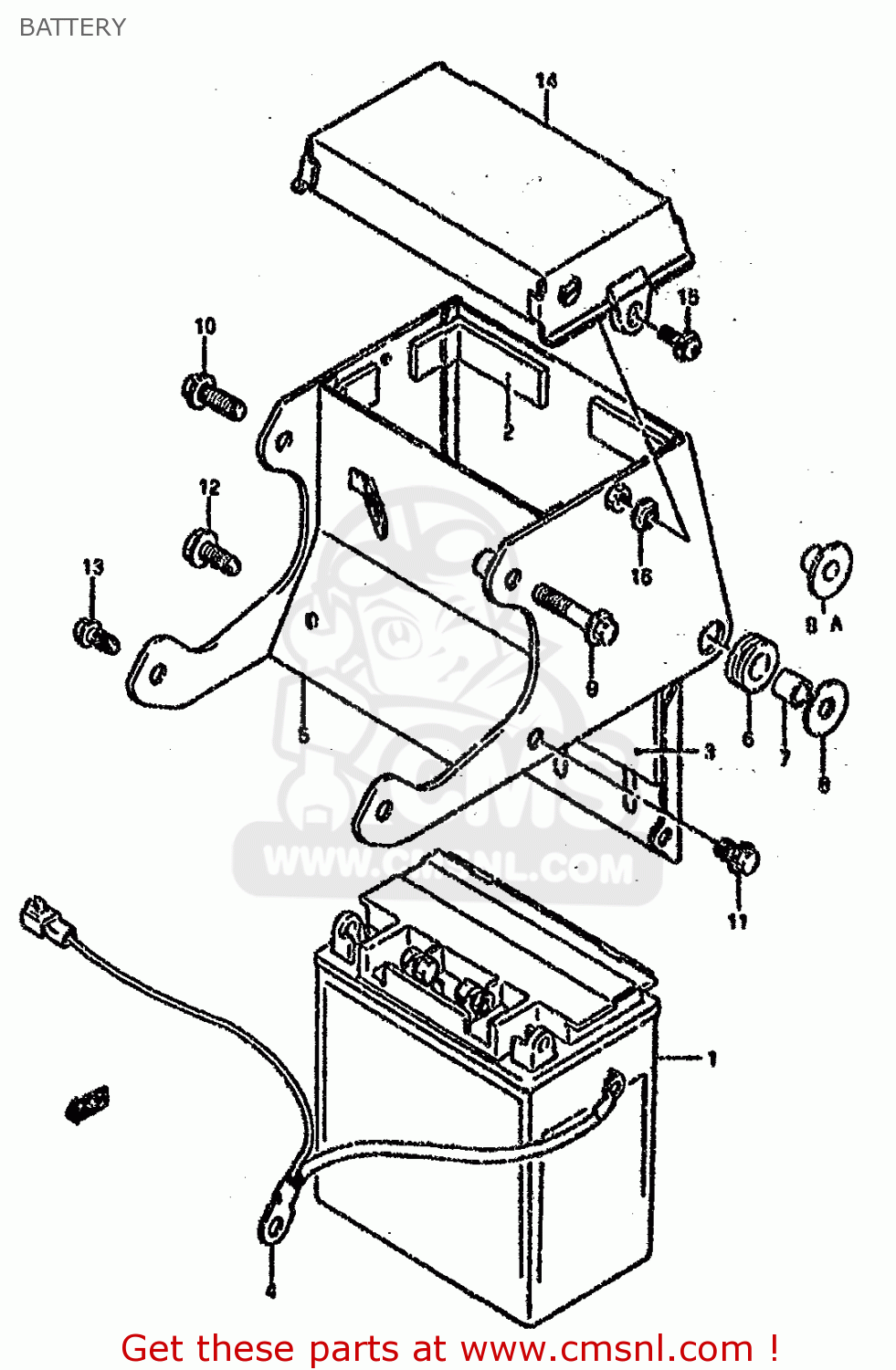

Battery diagram VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

BATTERY VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

BATTERY VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3361038B00
ref: 1-1
33611-38B00 BATTERY

BATTERY ASSY (12V,14AH)

€ 74.50

1-2

3361038B10
ref: 1-2
E4,E17,E21,E22,E34 3

BATTERY ASSY (12V,14AH)

€ 74.50

2

3365238A10
ref: 2

PROTECTOR(20X90)X2

€ 4.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3386038B00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 14.00

5

4154038B00
ref: 5

HOLDER COMP,BATTERY

€ 97.00

6

0932012042
ref: 6

CUSHION

€ 4.00

7

0918008001
ref: 7
MODEL H/J

SPACER (8.8X12X11)

€ 2.00

8

0916008004
ref: 8
MODEL H/J

WASHER

€ 2.50

8A

0930108009
ref: 8A
MODLE K/L/M/N/P/R/S

BUSH

€ 6.50

9

0910308222
ref: 9

BOLT(8X40)

€ 3.00

10-1

0151708205
ref: 10-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.00

10-2

0155008203
ref: 10-2
MODEL R/S

BOLT

€ 3.00

11-1

0151708125
ref: 11-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.50

11-2

0155008203
ref: 11-2
MODEL R/S

BOLT

€ 3.00

12-1

0180708185
ref: 12-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.00

12-2

0155008203
ref: 12-2
MODEL R/S

BOLT

€ 3.00

13-1

0151706164
ref: 13-1
MODEL H/J/K/L/M/N/P

BOLT

€ 2.50

13-2

0155006163
ref: 13-2
MODEL R/S

BOLT

€ 2.50

14

3365838B00
ref: 14

COVER,BATTERY

€ 12.00

15

0913805012
ref: 15

SCREW(5X12)

€ 2.50

16

0916905014
ref: 16

WASHER

€ 10.00
