FRAME (MODEL S)

VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

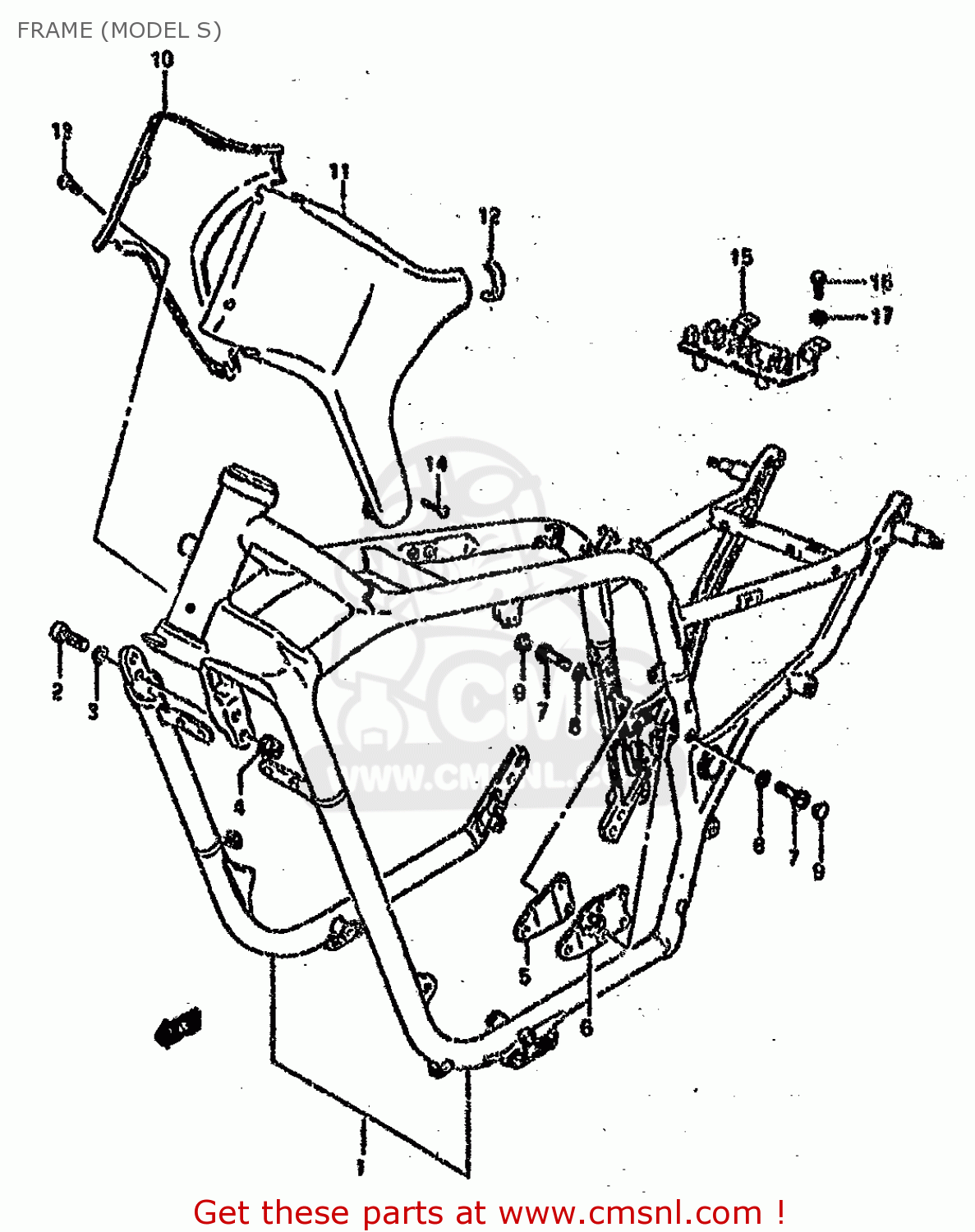

Frame (model s) diagram VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

FRAME (MODEL S) VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
FRAME (MODEL S) VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
FRAME (MODEL S) VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
41101388221ZV
ref: 1-1
FRAME SET
€ 1,654.00
1-2
411013882233J
ref: 1-2
FRAME SET
€ 1,654.00
1-3
411013882220F
ref: 1-3
FRAME SET(MAROON)
€ 1,045.50
2
0910610019
ref: 2
BOLT(10X33)
0910610019
€ 4.00
3
0916410005
ref: 3
WASHER
0916410005
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5-1
4195138B001ZV
ref: 5-1
PLATE,ENGINE MOUNTING NO
€ 9.50
5-2
4195138B0033J
ref: 5-2
PLATE,ENG MTG NO.4,R
€ 9.50
5-3
4195138B0020F
ref: 5-3
PLATE,ENG MTG NO.4,R
€ 15.00
6-1
4196038B001ZV
ref: 6-1
PLATE,ENGINE MOUNT NO.4,L
€ 27.50
6-2
4196038B0033J
ref: 6-2
PLATE,ENGINE MOUNT NO.4,L
4196038B0033J
€ 23.00
6-3
4196038B0020F
ref: 6-3
PLATE,ENGINE MOUNT NO.4,L
€ 28.50
7
0910608072
ref: 7
BOLT(8X32)
0910608072
€ 5.00
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10-1
4735038B011ZV
ref: 10-1
COVER,FRAME HEAD,R
€ 137.00
10-2
4735038B0133J
ref: 10-2
COVER,FRAME HEAD,R(BLACK)
€ 137.00
10-3
4735038B0120F
ref: 10-3
COVER COMP,FRAME HEAD
€ 139.50
11-1
4736038B111ZV
ref: 11-1
COVER COMP,FRAME HEAD
€ 119.00
11-2
4736038B1133J
ref: 11-2
COVER,FRM.HD.,
€ 119.00
11-3
4736038B1120F
ref: 11-3
COVER,FRAME HEAD,L(MAROON)
€ 109.50
12
4735938B00
ref: 12
PROTECTOR,FRAME HEAD COVER
4735938B00
€ 2.00
13
0214206103
ref: 13
SCREW 6X10
0214206103
€ 2.00
14
0211204253
ref: 14
SCREW
0211204253
€ 2.00
15
4741138B02
ref: 15
HOLDER,COUPLER
4741138B02
€ 11.50
16
0214206163
ref: 16
SCREW
0214206163
€ 2.50
17
0916906010
ref: 17
WASHER
0916906010
€ 3.00
6-4
4196038B000FJ
ref: 6-4
MODEL M
PLATE,ENGINE MOUNTING
€ 23.00
6-5
4196038B0020F
ref: 6-5
MODEL M/P/R
PLATE,ENGINE MOUNT NO.4,L
€ 28.50
6-6
4196038B0013Z
ref: 6-6
MODEL N/P
PLATE COMP,ENGINE MOUNTING
€ 23.00
6-7
4196038B0024D
ref: 6-7
MODEL N
PLATE,MOUNTING NO.4,LEFT (MAROON)
€ 15.00
7
0910608072
ref: 7
BOLT(8X32)
0910608072
€ 5.00
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10-1
4735038B000FH
ref: 10-1
MODEL K
COVER, FRAME HEAD RH (CHARCOAL)
€ 0.00
10-2
4735038B000FJ
ref: 10-2
MODEL K/M
COVER,FRAME HEAD,RIGHT (BLUE)
€ 137.00
10-3
4735038B0033J
ref: 10-3
MODEL L
COVER,FRAME HEAD,RIGHT
€ 137.00
10-4
4735038B0133J
ref: 10-4
MODEL R
COVER,FRAME HEAD,R(BLACK)
€ 137.00
10-5
4735038B0020F
ref: 10-5
MODEL M/P
COVER,FRAME HEAD,RIGHT
€ 139.50
10-6
4735038B0120F
ref: 10-6
MODEL R
COVER COMP,FRAME HEAD
€ 139.50
10-7
4735038B0013Z
ref: 10-7
MODEL N/P
COVER,FRAME HEAD,RIGHT
€ 137.00
10-8
4735038B0024D
ref: 10-8
MODEL N
COVER,FRAME HEAD,RIGHT
€ 139.50
11-1
4736038B100FH
ref: 11-1
MODEL K
COVER, FRAME HEAD LH(CHARCOAL)
€ 0.00
11-2
4736038B100FJ
ref: 11-2
MODEL L
COVER,FRAME HEAD,LEFT (BLUE)
€ 119.00
11-3
4736038B1033J
ref: 11-3
MODEL L
COVER,FRAME HEAD,LEFT
€ 119.00
11-4
4736038B1133J
ref: 11-4
MODEL R
COVER,FRM.HD.,
€ 119.00
11-5
4736038B1020F
ref: 11-5
MODEL M/P
COVER,FRAME HEAD,LEFT
€ 109.50
11-6
4736038B1120F
ref: 11-6
MODEL R
COVER,FRAME HEAD,L(MAROON)
€ 109.50
11-7
4736038B1013Z
ref: 11-7
MODEL N/P
COVER,FRAME HEAD,LEFT
€ 119.00
11-8
4736038B1024D
ref: 11-8
MODEL N
COVER,FRAME HEAD,LEFT
€ 109.50
12
4735938B00
ref: 12
PROTECTOR,FRAME HEAD COVER
4735938B00
€ 2.00
13-1
0214205104
ref: 13-1
MODEL K/L/M/N/P
SCREW 5X10
0214205104
€ 2.50
13-2
0214206103
ref: 13-2
MODEL R
SCREW 6X10
0214206103
€ 2.00
14-1
0211204254
ref: 14-1
MODEL K/L/M/N/P
SCREW
€ 2.00
14-2
0211204253
ref: 14-2
MODEL R
SCREW
0211204253
€ 2.00
15
4741138B02
ref: 15
HOLDER,COUPLER
4741138B02
€ 11.50
16-1
0113706165
ref: 16-1
MODEL K/L/M/N/P
BOLT
€ 2.50
16-2
0155006163
ref: 16-2
MODEL R
BOLT
0155006163
€ 2.50
17
0916906025
ref: 17
WASHER,LOCK
€ 3.00
