STARTING MOTOR

VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

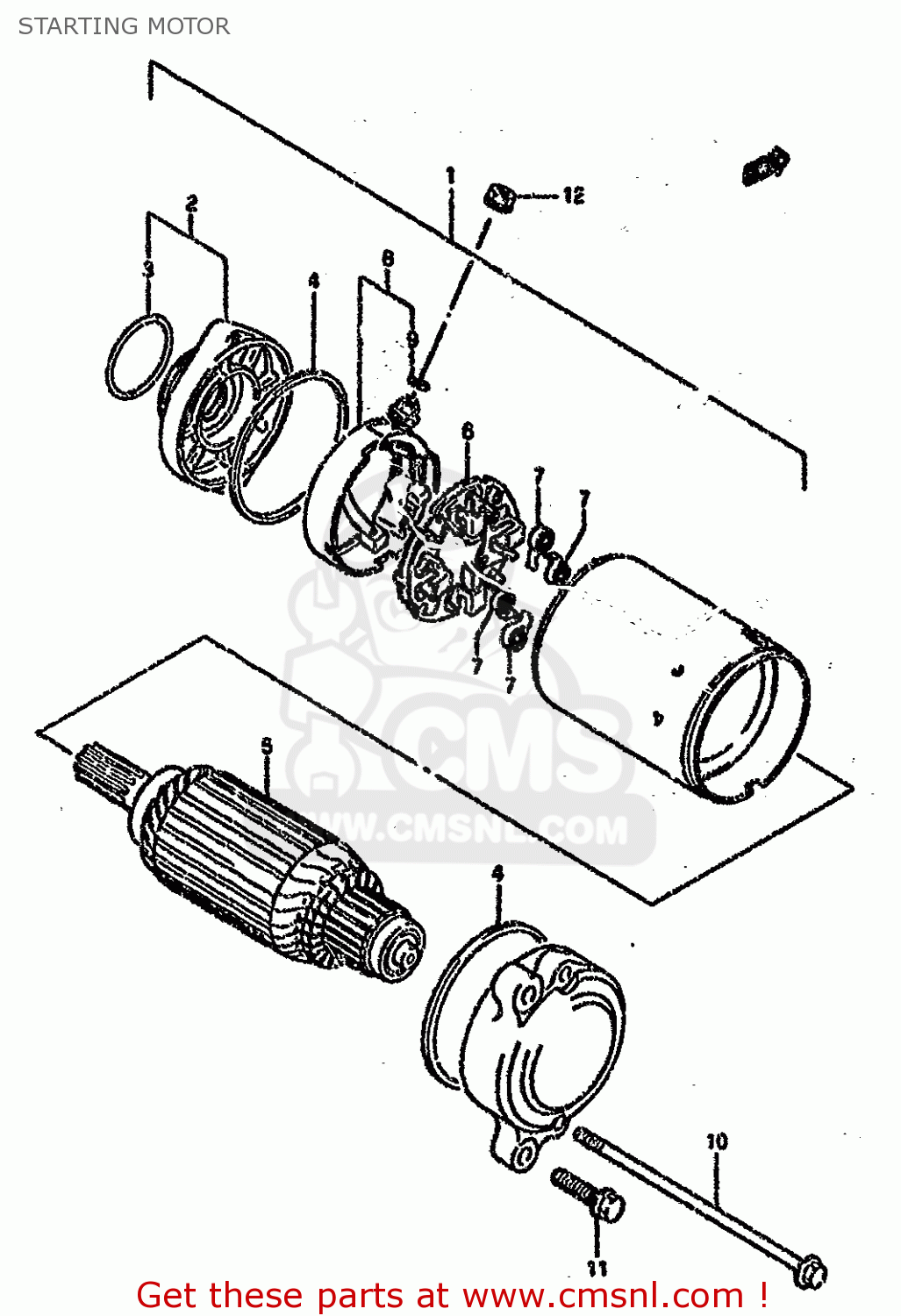

Starting motor diagram VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

prices are in EUR

ref

part #

description

quantity

3110038B01
ref: 1

MOTOR ASSEMBLY,STARTING

€ 973.50

3115038B00
ref: 2

BRACKET SET

€ 114.50

3115638B00
ref: 3

O-RING

€ 9.50

3126431300
ref: 4

O RING

€ 7.50

3131038B01
ref: 5

ARMATURE

€ 278.50

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 9

O RING

€ 3.00

3128124B10
ref: 10
31281-38B00

BOLT

€ 5.00

0154706257
ref: 11

BOLT

€ 2.50

0836135066
ref: 12

NUT

€ 2.00
