SECONDARY DRIVE GEAR

VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

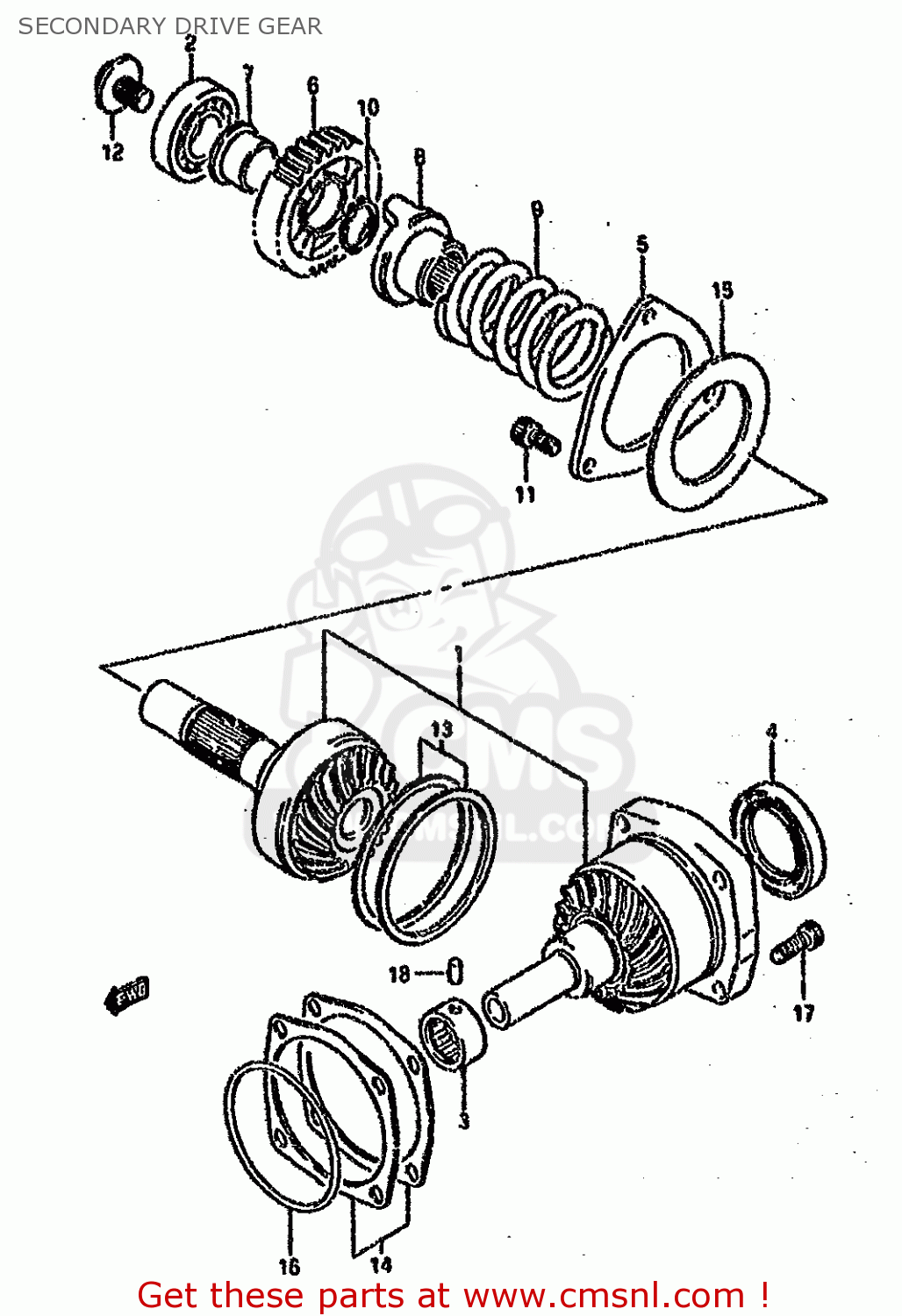

Secondary drive gear diagram VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

SECONDARY DRIVE GEAR VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

SECONDARY DRIVE GEAR VS1400GLP 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

2490038830
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,064.50

2

0926225080
ref: 2

BEARING(25X62X17)

€ 21.50

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

0928344010
ref: 4

SEAL,OIL(44X68X8)

€ 51.00

5

2493138B00
ref: 5

STOPPER,SEC DRIVE BEARING

€ 39.00

6

2463138B00
ref: 6

GEAR,OVER DRIVING DRIVEN

€ 183.50

7

2463238B00
ref: 7

BUSHING,ODOMETER DRIVEN GEAR

€ 24.50

8

2492238B00
ref: 8

DOG,OUTPUT CAM

€ 43.50

9

0944057001
ref: 9

SPRING

€ 49.50

10

0833131266
ref: 10

CIRCLIP

€ 2.50

11-1

0711008206
ref: 11-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.00

11-2

0713008203
ref: 11-2
MODEL R/S

BOLT

€ 3.00

12

0910314005
ref: 12

BOLT(14X21)

€ 17.00

13

2493538820
ref: 13
T:1/1.15/1.2/1.25/1.

SHIM SET,SEC DRIVE

€ 95.00

14

2494538810
ref: 14
T:0.3/0.35/0.4/0.5/0

SHIM SET,SEC DRIVEN

€ 33.00

15

0916057001
ref: 15

WASHER(57X90X3)

€ 17.00

16

0928078003
ref: 16

O RING(D:3.7,ID:76.5)

€ 6.00

17-1

0711008256
ref: 17-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.50

17-2

0713008253
ref: 17-2
MODEL R/S

BOLT

€ 3.50

18

0422107129
ref: 18

PIN

€ 1.50
