FRONT BRAKE HOSE

VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

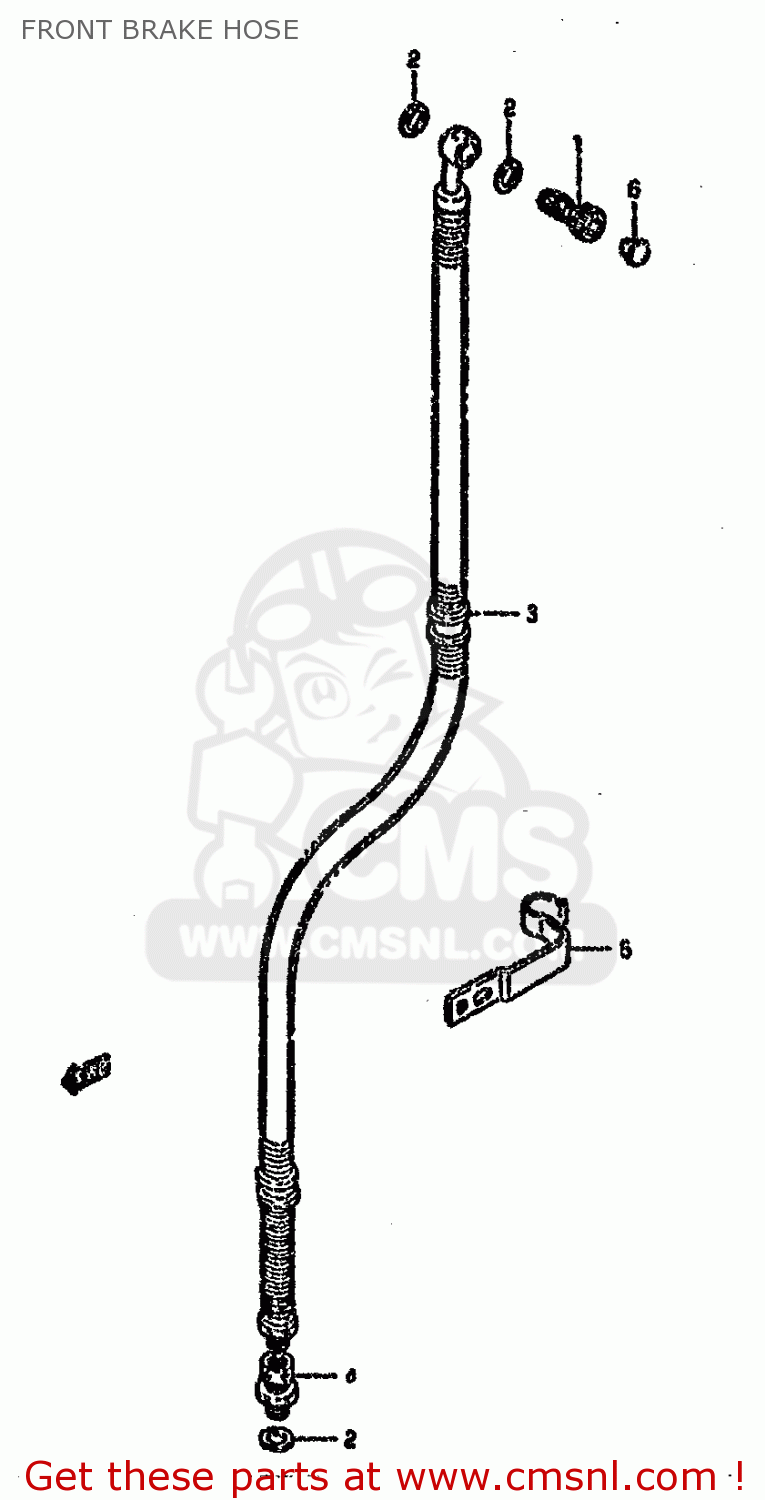

Front brake hose diagram VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

0936010027
ref: 1

BOLT UNION

€ 9.00

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

3-1

5948038B02
ref: 3-1
VS1400GLFH/GLFJ/GLFL

HOSE,FR BRAKE

€ 172.00

3-2

5948038B11
ref: 3-2
VS1400GLPH/GLPJ,MODE

HOSE,FR BRAKE

€ 171.50

5929043500
ref: 4

ADAPTER,BRAKE HOSE

€ 34.50

5926838B01
ref: 5

GUIDE,BRAKE HOSE

€ 8.50

0925008014
ref: 6

CAP(OD:12)

€ 3.50
