STARTER CLUTCH

VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

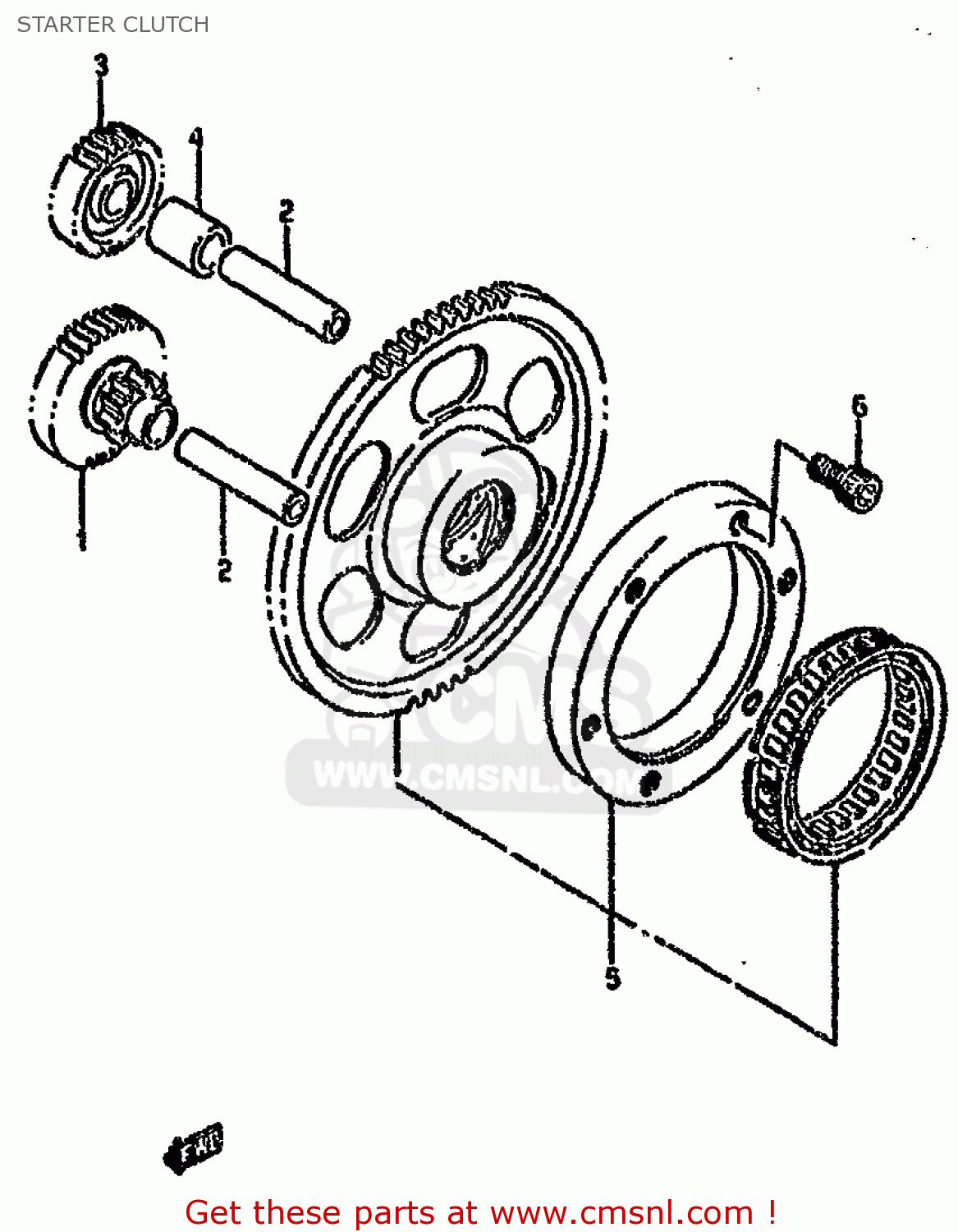

Starter clutch diagram VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1261138B01
ref: 1

GEAR,STARTER IDLE NO.1

€ 84.00

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

1261238B02
ref: 3

GEAR,STARTER IDLE NO.2

€ 57.50

0918011005
ref: 4

SPACER(11.2X17.5X22)

€ 7.50

1260038840
ref: 5

CLUTCH SET,STARTER

€ 363.00

6-1

0910608043
ref: 6-1
MODEL H/J/K/L/M/N/P/

BOLT

€ 3.00

6-2

0713008163
ref: 6-2
MODEL S

BOLT

€ 3.00
