FRONT WHEEL

VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

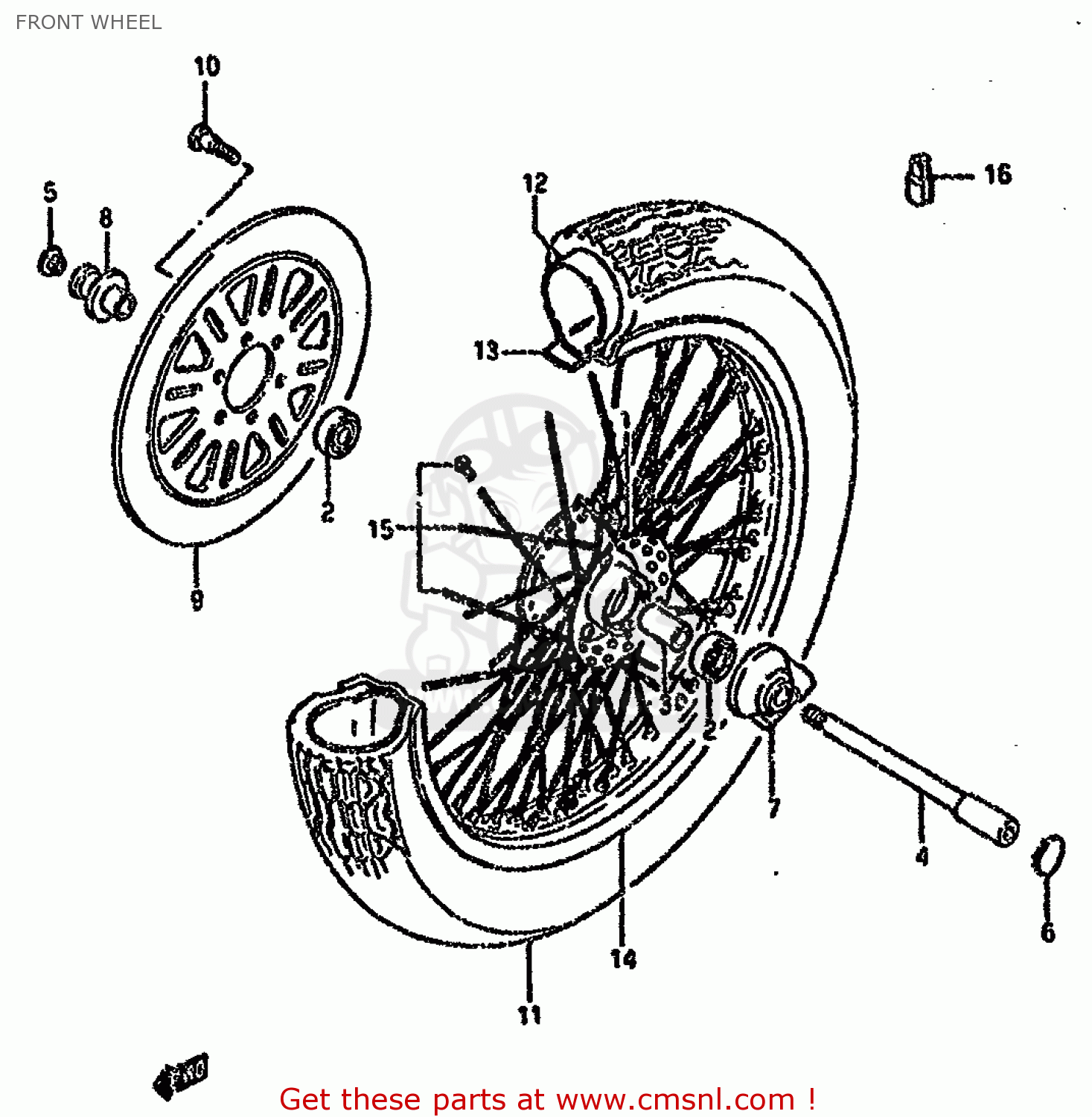

Front wheel diagram VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

FRONT WHEEL VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

FRONT WHEEL VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

5411038B00
ref: 1

HUB ASSY,FR

€ 323.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138B02
ref: 4

AXLE,FR

€ 60.50

5

5479138B01
ref: 5

CAP,FR AXLE

€ 4.50

6

5479238B00
ref: 6

CAP,FR AXLE

€ 97.00

7-1

5460038B01
ref: 7-1
MODEL H/J/K/L/M/N/P/

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 124.50

7-2

5460038A11
ref: 7-2
MODEL S

BOX ASSY,SPEEDOMETER

€ 124.50

8

5475038B00
ref: 8

SPACER,FR AXLE

€ 25.50

9

5921138B00
ref: 9

DISC,FR BRAKE

€ 232.50

10-1

0910608062
ref: 10-1
MODEL H/J/K/L/M/N/P

BOLT

€ 6.00

10-2

0910608125
ref: 10-2
MODEL R/S

BOLT 8X33

€ 6.00

11-1

5510038B00
ref: 11-1

TIRE COMP,FRONT 110/90-19

€ 0.00

11-2

5510038B10
ref: 11-2
MODEL J E1

TIRE, FRONT (110/90-19 62H) (BRIDGESTONE

€ 0.00

12

5520044610
ref: 12

TUBE

€ 41.00

13

5526115010
ref: 13

PROTECTOR,WHL INR TUBE

€ 2.50

14

5531138B02
ref: 14

RIM,FRONT WHEEL (2.15X1

€ 481.50

15

5532038B00
ref: 15

SPOKE SET,FR WHEEL

€ 176.50

16-1

5541238A00
ref: 16-1

BALANCER,WHEEL

€ 6.50

16-2

5541338A00
ref: 16-2

BALANCER,WHEEL (30G)

€ 8.00
