REAR FENDER (MODEL S)

VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

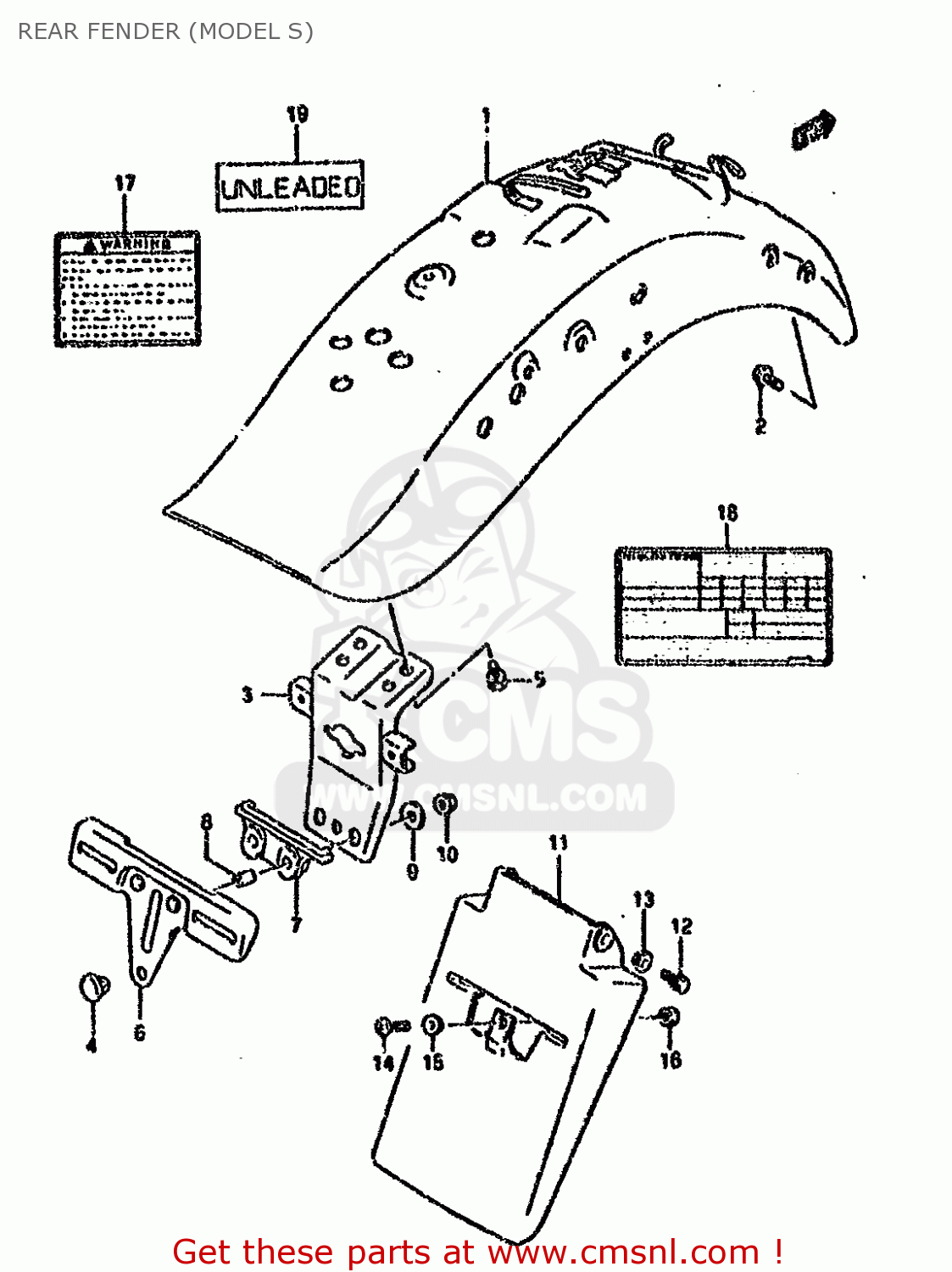

Rear fender (model s) diagram VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)

REAR FENDER (MODEL S) VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)
REAR FENDER (MODEL S) VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)
REAR FENDER (MODEL S) VS1400GLP 1994 (R) (E02 E04 E17 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6311038B101ZV
ref: 1-1
FENDER, REAR (GREEN)
€ 253.00
1-2
6311038B1020F
ref: 1-2
FENDER,RR
6311038B1020F
€ 261.00
1-3
6311038B1033J
ref: 1-3
FENDER, REAR (BLACK)
€ 223.50
1-4
6311038B201ZV
ref: 1-4
E22
FENDER,RR
€ 0.00
1-5
6311038B2020F
ref: 1-5
E22
FENDER,RR
€ 261.00
1-6
6311038B2033J
ref: 1-6
E22
FENDER,RR
6311038B2033J
€ 347.50
2
0155008203
ref: 2
BOLT
0155008203
€ 3.00
3
6346038B10
ref: 3
BRACKET,LICENSE LAMP
6346038B10
€ 56.50
4
0932108005
ref: 4
CUSHION
0932108005
€ 2.50
5
0157006123
ref: 5
BOLT
0157006123
€ 1.50
6
6346338B00
ref: 6
PLATE,REAR LICENSE
6346338B00
€ 27.50
7
6346438B00
ref: 7
CUSHION,RR LICENSE PLATE
6346438B00
€ 14.50
8
0918005028
ref: 8
SPACER (5.5X7.5X14.3)
€ 4.00
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
0916005501
€ 2.00
10
0831620053
ref: 10
NUT
0831620053
€ 2.00
11
6331138B00
ref: 11
EXTENSION,RR FENDER
6331138B00
€ 26.50
12
0157006163
ref: 12
BOLT
0157006163
€ 2.50
13
0916906045
ref: 13
WASHER
0916906045
€ 2.50
14
0211206123
ref: 14
SCREW
0211206123
€ 1.50
15
0916906033
ref: 15
WASHER
0916906033
€ 1.50
16
0831921068
ref: 16
NUT 6MM
0831921068
€ 2.00
17-1
6831940C00
ref: 17-1
E2,E22,E24
LABEL
6831940C00
€ 8.00
17-2
6831940C20
ref: 17-2
E22
LABEL, WARNING SAFETY
€ 8.00
17-3
6831940C30
ref: 17-3
E4,E34,E37
LABEL, WARNING SAFETY
€ 8.50
17-4
6831940C40
ref: 17-4
E34,E37
LABEL, WARNING SAFETY
€ 8.00
17-5
6831940C51
ref: 17-5
E34,E37
LABEL
€ 8.00
18-1
6833238B30
ref: 18-1
E2,E4,E24
LABEL (TIRE AIR PRESSURE)
€ 4.50
18-2
6833238B40
ref: 18-2
E22,E34,E37
LABEL,TIRE AIR PRESSURE
€ 4.50
19-1
8693273060
ref: 19-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
19-2
6862317D00
ref: 19-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
20-1
9901138B5801U
ref: 20-1
E2,E4,E22,E24,E34,E3
O.M. VS1400GLS
€ 16.50
20-2
9901138B58009
ref: 20-2
E22,E34
O.M. VS1400GLS
9901138B58009
€ 16.50
20-3
9901138B58029
ref: 20-3
E34 DRAWING NOT SHOW
MANUAL, OWNERS
9901138B58029
€ 27.50
3
0832121086
ref: 3
MODEL H/J
WASHER,LOCK,8.
0832121086
€ 2.50
4
0832211086
ref: 4
MODEL H/J
WASHER 8MM
0832211086
€ 1.50
5-1
6346038B10
ref: 5-1
E2,E4,E15,E16,E17,E1
BRACKET,LICENSE LAMP
6346038B10
€ 56.50
5-2
6346038B00
ref: 5-2
MODEL J/L/N/P E1
BRACKET,RR COMBINATION LAMP
6346038B00
€ 74.00
6
0932108005
ref: 6
CUSHION
0932108005
€ 2.50
7-1
0110706126
ref: 7-1
MODEL H/J/K/L
BOLT
€ 2.00
7-2
0113406126
ref: 7-2
MODEL M/N/P
BOLT
€ 1.50
7-3
0157006123
ref: 7-3
MODEL R
BOLT
0157006123
€ 1.50
8
0832121066
ref: 8
MODEL H/J/K/L
WASHER,LOCK
0832121066
€ 2.00
9
6346338B00
ref: 9
PLATE,REAR LICENSE
6346338B00
€ 27.50
10
6346438B00
ref: 10
CUSHION,RR LICENSE PLATE
6346438B00
€ 14.50
11
0918005028
ref: 11
SPACER (5.5X7.5X14.3)
€ 4.00
12
0916005041
ref: 12
WASHER
€ 2.00
13-1
0831626056
ref: 13-1
MODEL H/J/K/L/M/N/P
NUT
€ 2.00
13-2
0831620053
ref: 13-2
MODEL R
NUT
0831620053
€ 2.00
14-1
6331138B00
ref: 14-1
E16,E17,E22
EXTENSION,RR FENDER
6331138B00
€ 26.50
14-2
6331138B10
ref: 14-2
E15,E18
EXTENSION, REAR FENDER
€ 35.00
15
0110706167
ref: 15
E15,E16,E17,E18,E22
BOLT
0110706167
€ 3.00
16
0832131067
ref: 16
E15,E16,E17,E18,E22
WASHER,LOCK
0832131067
€ 2.50
17
0916906051
ref: 17
E15,E16,E17,E18,E22
WASHER
€ 2.50
18
0211206128
ref: 18
E15,16,E17,E18,E22
SCREW 6X12
0211206128
€ 2.00
19
0916906033
ref: 19
E15,E16,E17,E18,E22
WASHER
0916906033
€ 1.50
20
0831921068
ref: 20
E15,E16,E17,E18,E22
NUT 6MM
0831921068
€ 2.00
21
6331238B00
ref: 21
E15,E18
PLATE, MUD FLAP
€ 9.50
22
6333243520
ref: 22
E15,E18
MUD FLAP, REAR FENDER
€ 12.50
23
0214205124
ref: 23
E15,E18
SCREW, FRONT & REAR
€ 1.50
24
0916005031
ref: 24
E15,E18
WASHER
€ 1.50
25
0918005015
ref: 25
E15,E18
SPACER (5.5X8X4)
0918005015
€ 3.00
26
0831921055
ref: 26
E15,E18
NUT 8MM
0831921055
€ 1.50
27-1
6831940C00
ref: 27-1
LABEL
6831940C00
€ 8.00
27-2
6831940C20
ref: 27-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
28-1
6833238B30
ref: 28-1
DRAWING NOT SHOWN
LABEL (TIRE AIR PRESSURE)
€ 4.50
28-2
6833238B40
ref: 28-2
E22, DRAWING NOT SHO
LABEL,TIRE AIR PRESSURE
€ 4.50
29-1
8693273060
ref: 29-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
29-2
6862317D00
ref: 29-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
30
1196782000
ref: 30
E2
LABEL,ASBESTOS WARNING
€ 2.00
31-1
9901138B5001U
ref: 31-1
MODEL H
MANUAL, OWNERS
€ 16.50
31-2
9901138B5101U
ref: 31-2
MODEL J
MANUAL, OWNERS
€ 16.50
31-3
9901138B5201U
ref: 31-3
MODEL K
O.M. VS1400GLP
9901138B5201U
€ 16.50
31-4
9901138B5301U
ref: 31-4
MODEL L
MANUAL, OWNERS
€ 0.00
31-5
9901138B5401U
ref: 31-5
MODEL M
O.M. VS1400GLP
€ 16.50
31-6
9901138B54009
ref: 31-6
MODEL M E17,E34
MANUAL, OWNERS
€ 0.00
31-7
9901138B5501U
ref: 31-7
MODEL N
O.M. VS1400GLP
€ 16.50
31-8
9901138B55009
ref: 31-8
MODEL N E17,E34
MANUAL, OWNERS
€ 0.00
31-9
9901138B5601U
ref: 31-9
MODEL P
O.M. VS1400GLP
9901138B5601U
€ 16.50
31-10
9901138B56009
ref: 31-10
MODEL P E17,E34
MANUAL, OWNERS
€ 0.00
31-11
9901138B5701U
ref: 31-11
MODEL R DRAWING NOT
O.M. VS1400GLP
€ 16.50
