CARBURETOR (FRONT)

VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

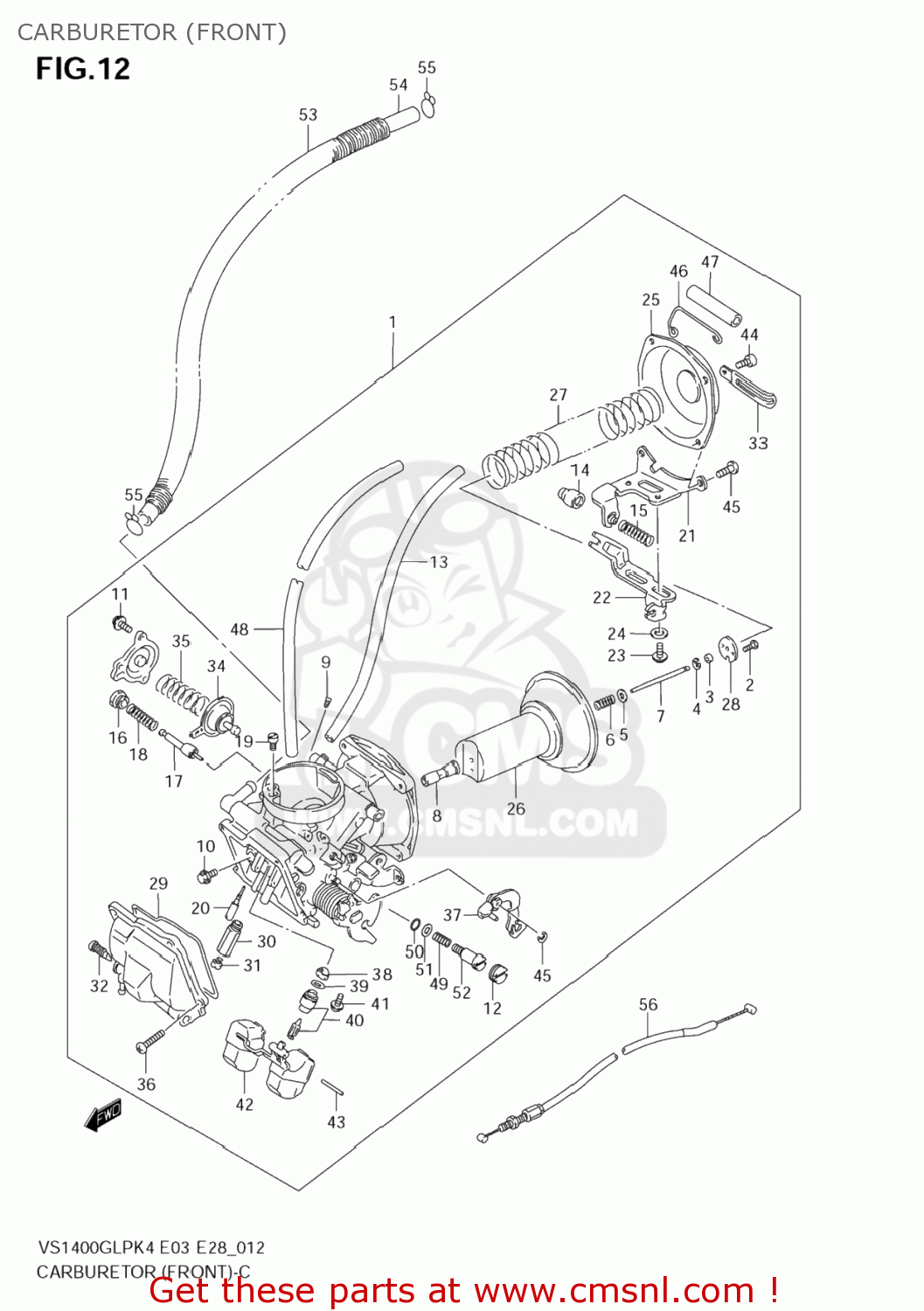

Carburetor (front) diagram VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

CARBURETOR (FRONT) VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)
CARBURETOR (FRONT) VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)
CARBURETOR (FRONT) VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
1321038BE0
ref: 1-1
13210-38BE1
CARBURATEUR.V.
€ 561.00
1-2
1321038BE1
ref: 1-2
CARBURETOR ASSY,FR
€ 561.00
1-3
1321038BF0
ref: 1-3
CARBURETOR ASSY,FR
€ 0.00
1-4
1321038BG1
ref: 1-4
CARBURETOR ASSY,FR
€ 550.00
2
0211233073
ref: 2
SCREW
€ 0.00
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7
1338338B40
ref: 7
NEEDLE,JET
1338338B40
€ 17.50
8
0949400894
ref: 8
JET,NEEDLE(O-9M)
€ 0.00
9
0949328006
ref: 9
JET,PILOT AIR,1.4
0949328006
€ 15.50
10
1360538B00
ref: 10
SCREW
1360538B00
€ 7.50
11
0211204107
ref: 11
SCREW
0211204107
€ 2.00
12
1328105A00
ref: 12
PLUG
1328105A00
€ 3.50
13-1
0935250823600
ref: 13-1
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
13-1
0935250823600
ref: 13-1
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
13-1
0935250823600
ref: 13-1
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
13-2
1368338BG1
ref: 13-2
HOSE
€ 28.00
14
1368104010
ref: 14
CAP
1368104010
€ 3.00
15
1341737100
ref: 15
SPRING
1341737100
€ 4.00
16
1341805A10
ref: 16
HOLDER,GUIDE
1341805A10
€ 12.00
17
1341105300
ref: 17
PLUNGER
1341105300
€ 23.50
18
1341743010
ref: 18
SPRING
1341743010
€ 3.50
19
0949270004
ref: 19
JET,PILOT(70)
0949270004
€ 9.50
20
0949250018
ref: 20
JET,PILOT(50)
0949250018
€ 17.50
21
1362838B00
ref: 21
BRACKET
€ 32.50
22
1342238B00
ref: 22
PLATE
€ 19.50
23
1360205A30
ref: 23
SCREW
1360205A30
€ 4.50
24
1333205A20
ref: 24
WASHER
1333205A20
€ 3.00
25
1350238A00
ref: 25
COVER,DIAPHRAGM
1350238A00
€ 34.00
26
1350005A10
ref: 26
DIAPHRAGM,CARBURETOR
1350005A10
€ 178.00
27
1350338B00
ref: 27
SPRING,DIAPHRAGM
1350338B00
€ 12.00
28
1338937400
ref: 28
PLATE
1338937400
€ 5.50
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
1338505A11
€ 14.00
31
0949125014
ref: 31
JET,MAIN(125)
0949125014
€ 11.50
32
1324713A00
ref: 32
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
33
0940406429
ref: 33
CLAMP(L:45)
€ 2.50
34
1348005A10
ref: 34
DIAPHRAGM ASSY
1348005A10
€ 54.50
35
1348138B40
ref: 35
SPRING
1348138B40
€ 5.50
36
1360248B10
ref: 36
SCREW
1360248B10
€ 3.00
37
1355445C20
ref: 37
LEVER ASSY
1355445C20
€ 38.50
38
1337619F00
ref: 38
FILTER
1337619F00
€ 6.50
39
1337435C00
ref: 39
O RING,NEEDLE VALVE SEAT
1337435C00
€ 6.00
40
1337039A00
ref: 40
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
41
1360205A10
ref: 41
SCREW
1360205A10
€ 4.00
42
1325038B00
ref: 42
FLOAT
1325038B00
€ 32.00
43
1325420010
ref: 43
PIN,FLOAT
1325420010
€ 3.00
44
0211205127
ref: 44
SCREW
0211205127
€ 2.50
45
1341538300
ref: 45
E RING
1341538300
€ 2.00
46
1367138A00
ref: 46
CLIP
1367138A00
€ 10.50
47
0935260103600
ref: 47
HOSE(6X10X600)
0935260103600
€ 18.00
48
1368338B01
ref: 48
HOSE ASSY
€ 19.50
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1329529900
ref: 50
O RING,PILOT AIR SCREW
1329529900
€ 4.00
51
1329129900
ref: 51
WASHER
1329129900
€ 2.00
52
1327947070
ref: 52
SCREW,PILOT
1327947070
€ 11.50
53-1
1368438B10
ref: 53-1
SHIELD,FUEL HOSE HEATER
€ 3.50
53-2
4442321F00
ref: 53-2
13684-38B10
SHIELD,HEAT FUEL HOSE
€ 3.50
54-1
0935465113600
ref: 54-1
HOSE(6.5X11.5X600)
0935465113600
€ 26.00
54-1
0935465113600
ref: 54-1
HOSE(6.5X11.5X600)
0935465113600
€ 26.00
54-2
1368338BE0
ref: 54-2
HOSE
€ 25.00
55
0940111403
ref: 55
CLIP
0940111403
€ 3.00
55
0940111403
ref: 55
CLIP
0940111403
€ 3.00
56-1
1364138B02
ref: 56-1
13641-38B03
CABLE,IDLE SYNCRO
€ 17.50
56-2
1364138B03
ref: 56-2
CABLE,IDLE SYNCRO
1364138B03
€ 17.50
