TURN SIGNAL LAMP

VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

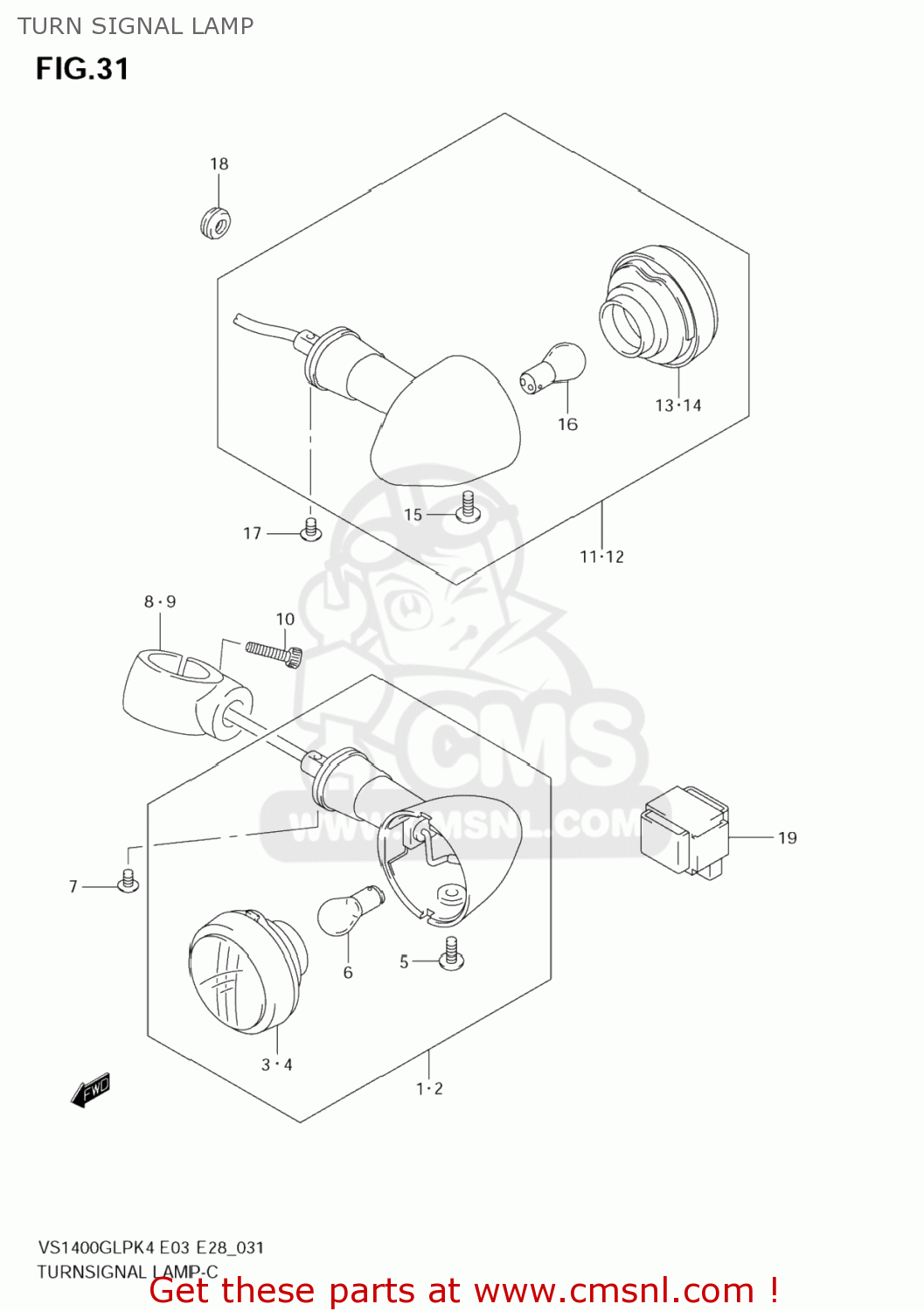

Turn signal lamp diagram VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

TURN SIGNAL LAMP VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

TURN SIGNAL LAMP VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

3560138AB0
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 99.50

1-2

3560138AD0
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,R

€ 57.50

2-1

3560238AB0
ref: 2-1

LAMP ASSY,FR TURN SIGNAL,L

€ 99.50

2-2

3560238AD0
ref: 2-2

LAMP ASSY,FR TURN SIGNAL,L

€ 82.50

3

3561038AA0
ref: 3

LENS

€ 19.50

4

3563038AA0
ref: 4

LENS

€ 19.50

5

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

0214206107
ref: 7

SCREW

€ 2.00

8

3567138B00
ref: 8

BRACKET,FR TURNSIGNAL LAMP,R

€ 106.00

9

3568138B00
ref: 9

BRACKET,FR TURNSIGNAL LAMP,L

€ 106.00

10

0713006167
ref: 10

BOLT

€ 3.00

11

3560338AD0
ref: 11

LAMP ASSY,RR TURNSIGNAL,R

€ 99.50

12

3560438AD0
ref: 12

LAMP ASSY,RR TURNSIGNAL,L

€ 111.50

13

3563038AE1
ref: 13

LENS

€ 19.50

14

3561038AE1
ref: 14

LENS

€ 19.50

15

3562338AA0
ref: 15

SCREW(4X10)

€ 4.00

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

0214206107
ref: 17

SCREW

€ 2.00

18

0930808011
ref: 18

GROMMET

€ 3.00

19

3861026E00
ref: 19

RELAY ASSY

€ 47.00
