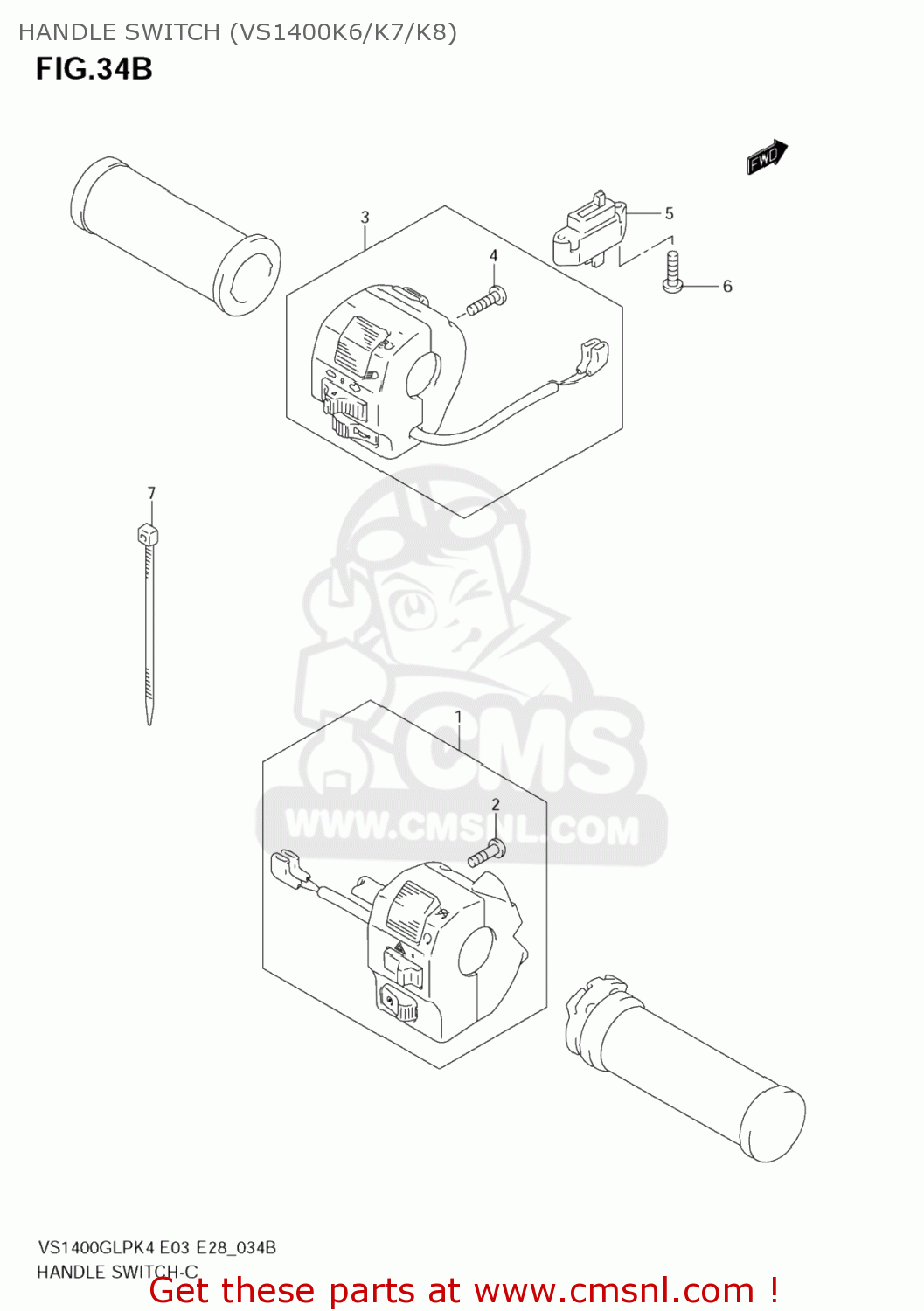

HANDLE SWITCH (VS1400K6/K7/K8)

VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

Handle switch (vs1400k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

HANDLE SWITCH (VS1400K6/K7/K8) VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

HANDLE SWITCH (VS1400K6/K7/K8) VS1400GLP BOULEVARD S83 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3720038BK0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740038BK0
ref: 3

SWITCH ASSY,HANDLE,L

€ 0.00

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00
