AIR CLEANER (REAR)

VS1400GLP INTRUDER 1989 (K) USA (E03)

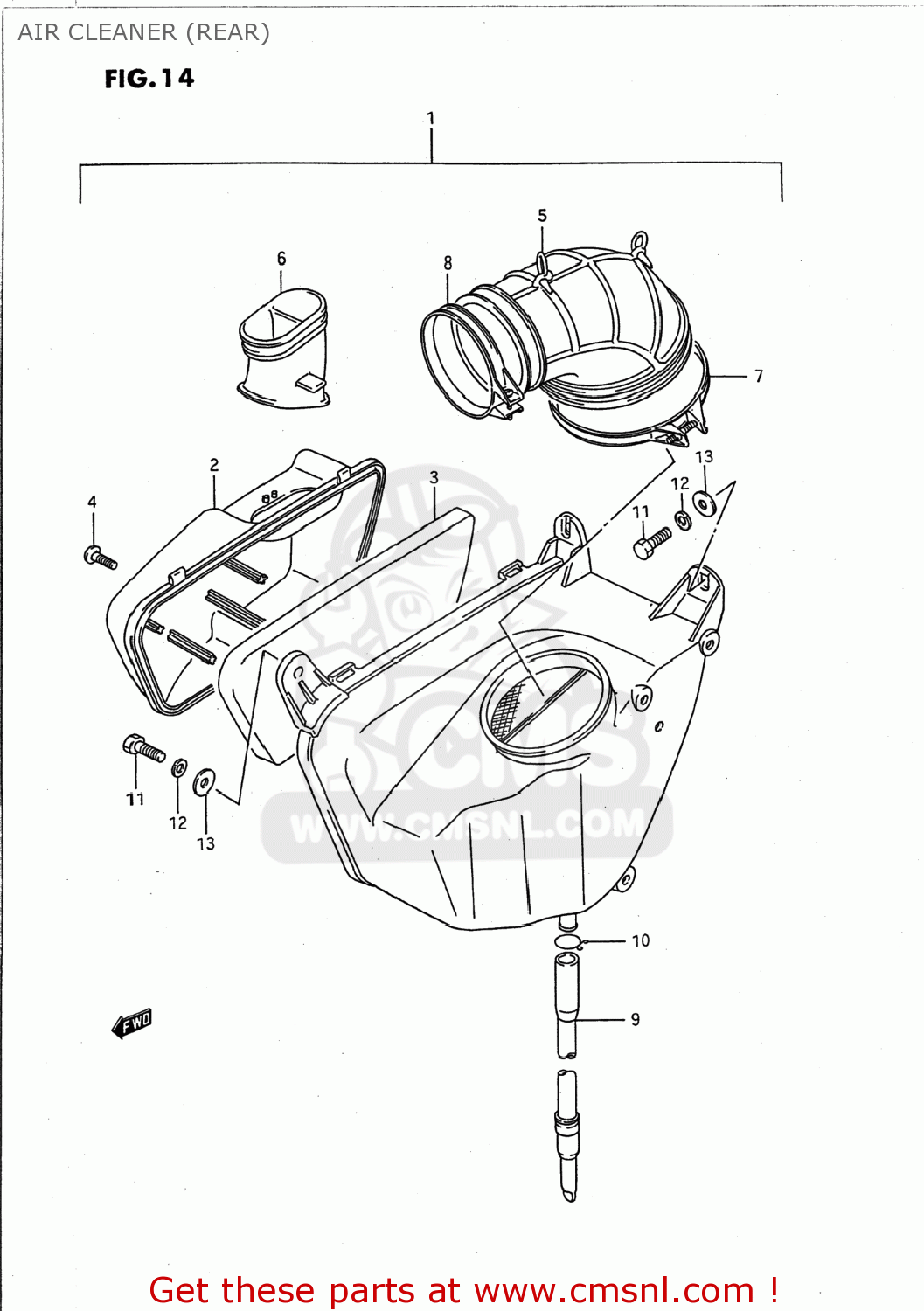

Air cleaner (rear) diagram VS1400GLP INTRUDER 1989 (K) USA (E03)

AIR CLEANER (REAR) VS1400GLP INTRUDER 1989 (K) USA (E03)
AIR CLEANER (REAR) VS1400GLP INTRUDER 1989 (K) USA (E03)
AIR CLEANER (REAR) VS1400GLP INTRUDER 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1370038B50
ref: 1-1
13700-38B70
CLEANER ASSEMBLY,AIR
€ 211.00
1-2
1370038B51
ref: 1-2
13700-38B70
CLEANER ASSEMBLY,AIR
€ 211.00
1-3
1370038B70
ref: 1-3
CLEANER ASSY,AIR RR
1370038B70
€ 211.00
2-1
1374038B50
ref: 2-1
13740-38B51
CAP,AIR CLEANER
€ 29.00
2-2
1374038B51
ref: 2-2
CAP,AIR CLEANER RR
1374038B51
€ 29.00
3-1
1378138B50
ref: 3-1
13781-38B60
ELEMENT,AIR CLEANER
1378138B50
€ 11.00
3-2
1378138B60
ref: 3-2
FILTER,AIR RR
1378138B60
€ 11.00
4-1
0214205164
ref: 4-1
02142-0516A
SCREW
0214205164
€ 2.50
4-2
0214205163
ref: 4-2
02142-0516A
SCREW
0214205163
€ 2.50
5
1388138B50
ref: 5
TUBE,AIR CLEANER OUTLET
1388138B50
€ 25.50
6
1389138B50
ref: 6
TUBE,INLET
1389138B50
€ 21.00
7-1
0940282207
ref: 7-1
09402-82208
CLAMP
€ 7.00
7-2
0940282202
ref: 7-2
09402-82208
CLAMP
0940282202
€ 7.00
8
0940258208
ref: 8
CLAMP
0940258208
€ 5.50
9-1
1387011207
ref: 9-1
13870-11458
DRAIN TUBE
€ 13.50
9-2
1387011458
ref: 9-2
TUBE,DRAIN
1387011458
€ 13.50
10
1382400A00
ref: 10
09401-13409
CLIP
1382400A00
€ 2.50
11-1
0110706207
ref: 11-1
01500-06207
BOLT
0110706207
€ 2.00
11-2
0150006207
ref: 11-2
BOLT
0150006207
€ 2.00
12-1
0832121067
ref: 12-1
08321-01067
WASHER,LOCK
0832121067
€ 2.50
12-2
0832101067
ref: 12-2
WASHER,LOCK
0832101067
€ 2.50
13
0916006019
ref: 13
WASHER(6.5X16X1.2)
0916006019
€ 1.50
