HANDLEBAR (VS1400GLPH

VS1400GLP INTRUDER 1989 (K) USA (E03)

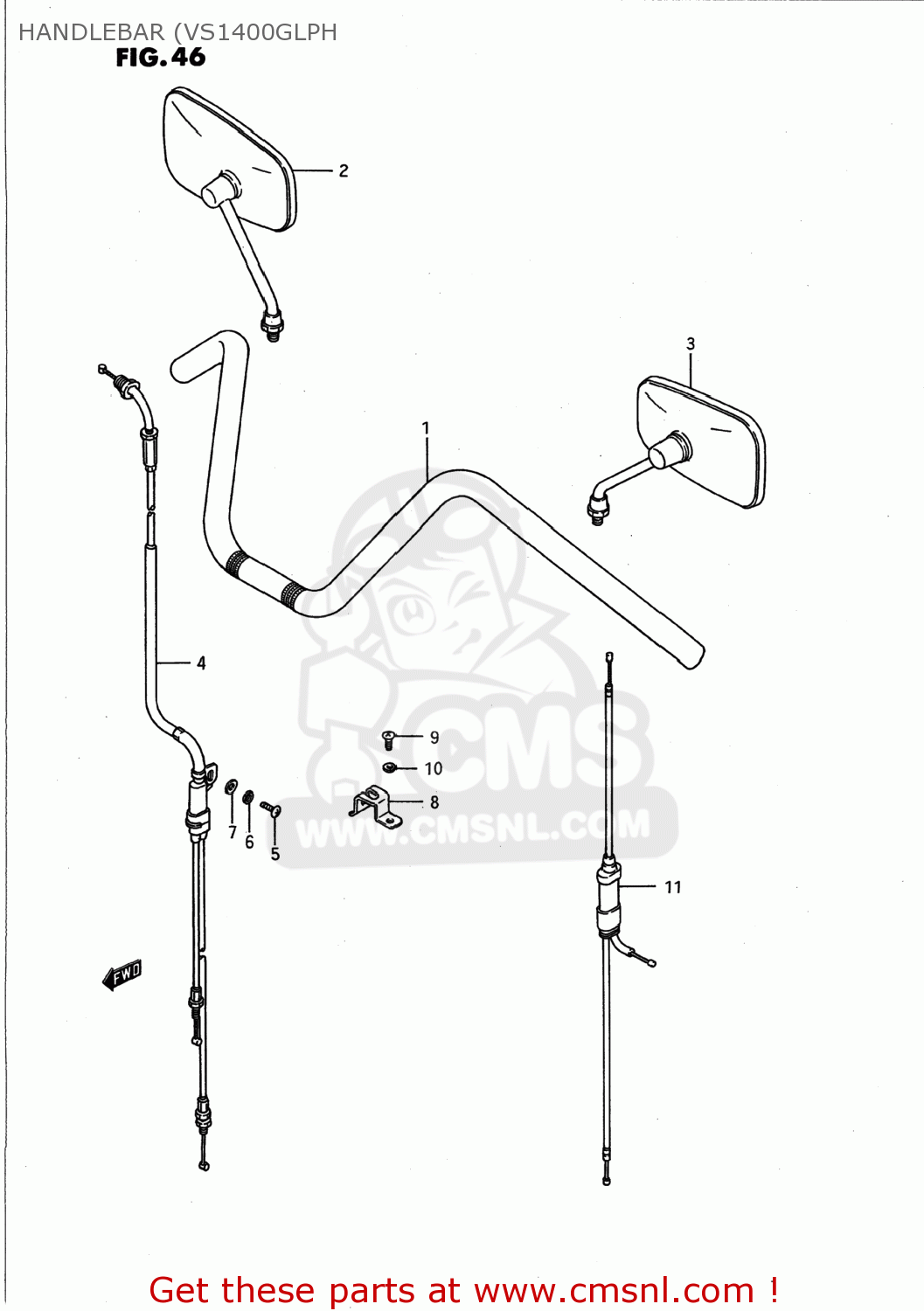

Handlebar (vs1400glph diagram VS1400GLP INTRUDER 1989 (K) USA (E03)

HANDLEBAR (VS1400GLPH VS1400GLP INTRUDER 1989 (K) USA (E03)
HANDLEBAR (VS1400GLPH VS1400GLP INTRUDER 1989 (K) USA (E03)
HANDLEBAR (VS1400GLPH VS1400GLP INTRUDER 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5611138B10
ref: 1-1
56111-38B32
HANDLEBAR,RIGHT
€ 244.50
1-2
5611138B31
ref: 1-2
56111-38B32
HANDLEBAR,RIGHT
€ 244.50
2
5650038B00
ref: 2
56500-38B01
MIRROR ASSEMBLY,REAR VIEW
5650038B00
€ 240.50
3
5660038B00
ref: 3
56600-38B01
MIRROR ASSEMBLY,REAR VIEW
€ 294.00
4
5830038B10
ref: 4
58300-38B11
CABLE ASSEMBLY,THROTTLE
5830038B10
€ 74.50
5-1
0211205168
ref: 5-1
02112-05167
SCREW
0211205168
€ 2.50
5-2
0211275168
ref: 5-2
02112-7516A
SCREW
0211275168
€ 2.50
5-3
0211275163
ref: 5-3
02112-7516A
SCREW
0211275163
€ 2.50
6
0832121057
ref: 6
08321-0105A
LOCK WASHER
0832121057
€ 2.00
7
0832221057
ref: 7
08322-01057
WASHER
0832221057
€ 2.50
8
5862138B00
ref: 8
CLAMP,THROTTLE CABLE CONNECTOR
€ 6.00
9-1
0211205107
ref: 9-1
SCREW
0211205107
€ 2.00
9-2
0211275163
ref: 9-2
02112-7516A
SCREW
0211275163
€ 2.50
10
0832121057
ref: 10
08321-0105A
LOCK WASHER
0832121057
€ 2.00
11
5840038B01
ref: 11
58400-39B00
CABLE ASSEMBLY,STARTER
5840038B01
€ 34.00
