FUEL TANK (MODEL L/M/N)

VS1400GLP INTRUDER 1989 (K) USA (E03)

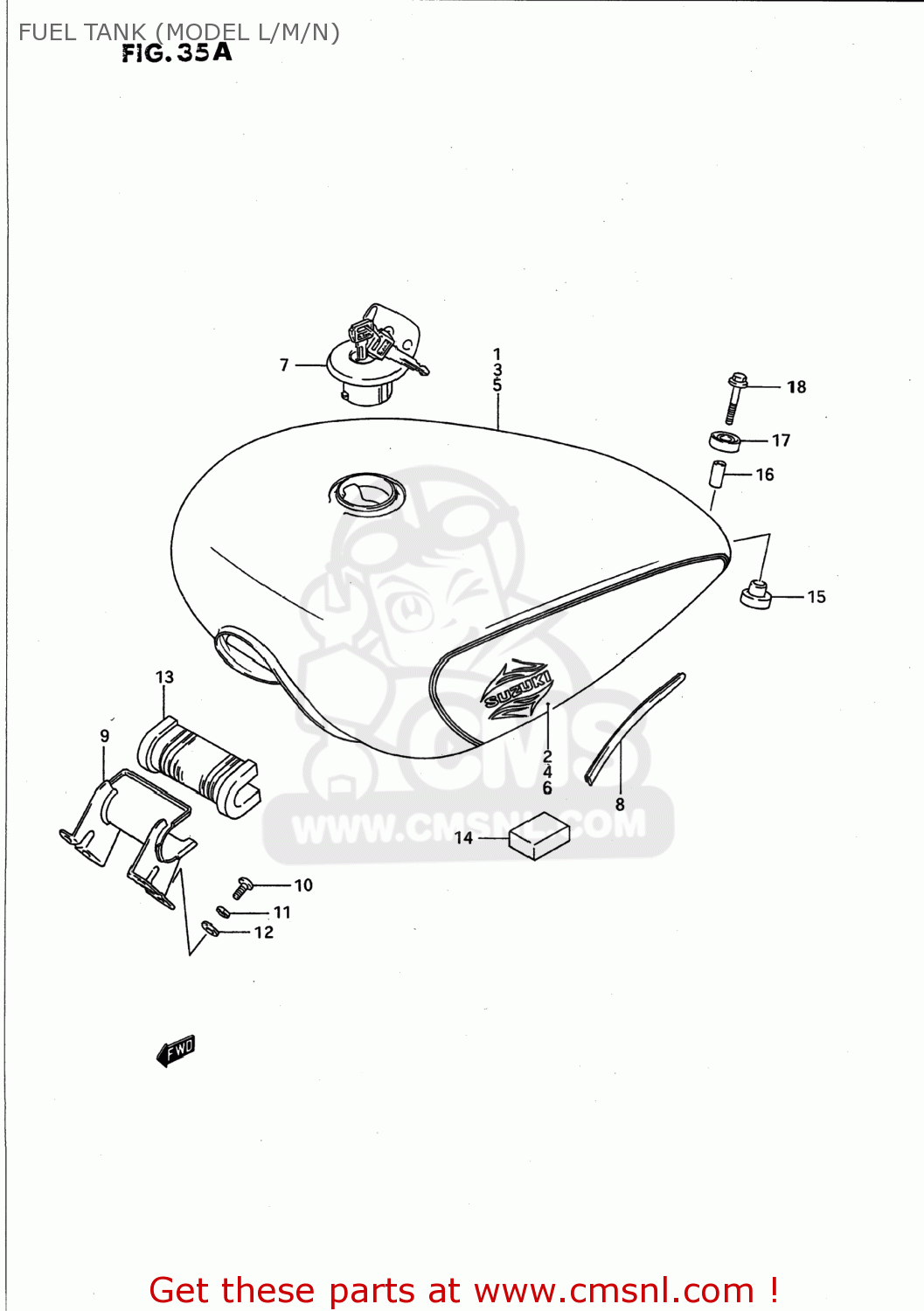

Fuel tank (model l/m/n) diagram VS1400GLP INTRUDER 1989 (K) USA (E03)

FUEL TANK (MODEL L/M/N) VS1400GLP INTRUDER 1989 (K) USA (E03)
FUEL TANK (MODEL L/M/N) VS1400GLP INTRUDER 1989 (K) USA (E03)
FUEL TANK (MODEL L/M/N) VS1400GLP INTRUDER 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410038B6033J
ref: 1-1
44100-38B70-33J
TANK ASSEMBLY,FUEL
€ 648.50
1-2
4410038B600FJ
ref: 1-2
44100-38B70-0FJ
TANK ASSEMBLY,FUEL
€ 462.00
1-3
4410038B8033J
ref: 1-3
44100-38B81-13Z
TANK ASSEMBLY,FUEL
€ 400.00
1-4
4410038B800FJ
ref: 1-4
TANK ASSEMBLY,FUEL
€ 400.00
2-1
6811038B000PB
ref: 2-1
TAPE SET, FUEL TANK
€ 155.00
2-2
6811038B000YU
ref: 2-2
TAPE SET,FUEL TANK
€ 155.00
3-1
4410038B9020F
ref: 3-1
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
3-2
4410039B1020F
ref: 3-2
TANK ASSEMBLY,FUEL
€ 432.50
4
6811038B10G72
ref: 4
TAPE SET,FUEL TANK
6811038B10G72
€ 194.00
5-1
4410038B6013Z
ref: 5-1
44100-38B70-13Z
TANK ASSEMBLY,FUEL
€ 874.00
5-2
4410038B6024D
ref: 5-2
44100-38B70-24D
TANK ASSEMBLY,FUEL
€ 725.50
5-3
4410038B8013Z
ref: 5-3
44100-38B81-13Z
TANK COMP,FUEL
€ 400.00
5-4
4410038B8024D
ref: 5-4
44110-38B13-YD8
TANK ASSEMBLY,FUEL
€ 432.50
6-1
6811038B001KM
ref: 6-1
TAPE SET,FUEL TANK
€ 154.00
6-2
6811038B001KN
ref: 6-2
TAPE SET,FUEL TANK
€ 154.00
7-1
4420038820
ref: 7-1
CAP SET,FUEL TANK
4420038820
€ 107.50
7-2
4420038860
ref: 7-2
CAP SET,FUEL TANK
4420038860
€ 135.50
7-3
4420038870
ref: 7-3
ENGRAVED GAS CAP SET,G
4420038870
€ 136.50
7-4
4420024820
ref: 7-4
CAP SET,FUEL TANK
€ 150.50
8
6824127A00
ref: 8
68241-04X50-00B
MOLDING,FUEL TANK
6824127A00
€ 23.00
9-1
4425038B0033J
ref: 9-1
44250-38B00-019
BRACKET COMP,FUEL TANK
4425038B0033J
€ 32.00
9-2
4425038B0013Z
ref: 9-2
44250-38B00-019
BRACKET,TANK
4425038B0013Z
€ 32.00
9-3
4425038B000FJ
ref: 9-3
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
9-4
4425038B0020F
ref: 9-4
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
9-5
4425038B0024D
ref: 9-5
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
10
0214206164
ref: 10
02142-0616A
SCREW
0214206164
€ 2.50
11
0832121064
ref: 11
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
12
0832221064
ref: 12
08322-0106B
WASHER
0832221064
€ 2.00
13
4451138B01
ref: 13
CUSHION,FUEL TANK FR
4451138B01
€ 12.00
14
4451238B00
ref: 14
56314-48B10
CUSHION
4451238B00
€ 6.00
15
0932010020
ref: 15
CUSHION
0932010020
€ 4.00
16
0918006190
ref: 16
09180-06274
SPACER
0918006190
€ 4.50
17
0932014013
ref: 17
CUSHION
0932014013
€ 3.00
18
0155006353
ref: 18
01550-0635A
BOLT
0155006353
€ 2.50
