HANDLEBAR (VS1400GLFH)

VS1400GLP INTRUDER 1989 (K) USA (E03)

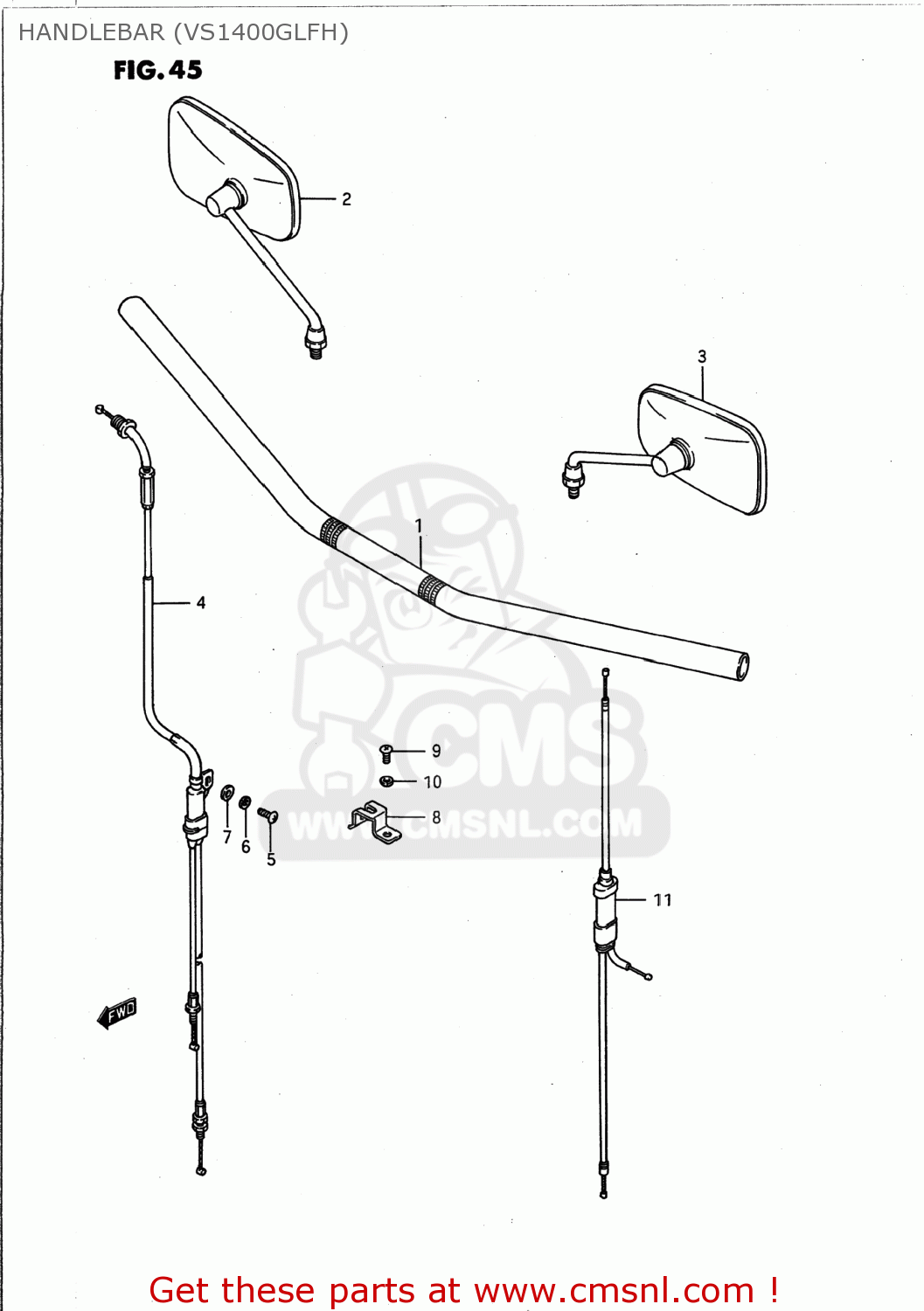

Handlebar (vs1400glfh) diagram VS1400GLP INTRUDER 1989 (K) USA (E03)

HANDLEBAR (VS1400GLFH) VS1400GLP INTRUDER 1989 (K) USA (E03)

HANDLEBAR (VS1400GLFH) VS1400GLP INTRUDER 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5611138B00
ref: 1-1
56111-38B21

HANDLEBAR,RIGHT

€ 255.50

1-2

5611138B21
ref: 1-2

HANDLEBAR

€ 255.50

2

5650038A30
ref: 2

MIRROR ASSY,RR VIEW,R

€ 75.00

3

5660038A30
ref: 3

MIRROR ASSY,RR VIEW,L

€ 75.50

4

5830038B00
ref: 4
58300-38B01

CABLE ASSEMBLY,THROTTLE

€ 88.00

5

0211205168
ref: 5
02112-05167

SCREW

€ 2.50

6

0832121057
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

7

0832221057
ref: 7
08322-01057

WASHER

€ 2.50

8

5862138B00
ref: 8

CLAMP,THROTTLE CABLE CONNECTOR

€ 6.00

9

0211205107
ref: 9

SCREW

€ 2.00

10

0832121057
ref: 10
08321-0105A

LOCK WASHER

€ 2.00

11

5840038B01
ref: 11
58400-39B00

CABLE ASSEMBLY,STARTER

€ 34.00
