CAM CHAIN

VS600GL 1995 (S) ITALY (E34)

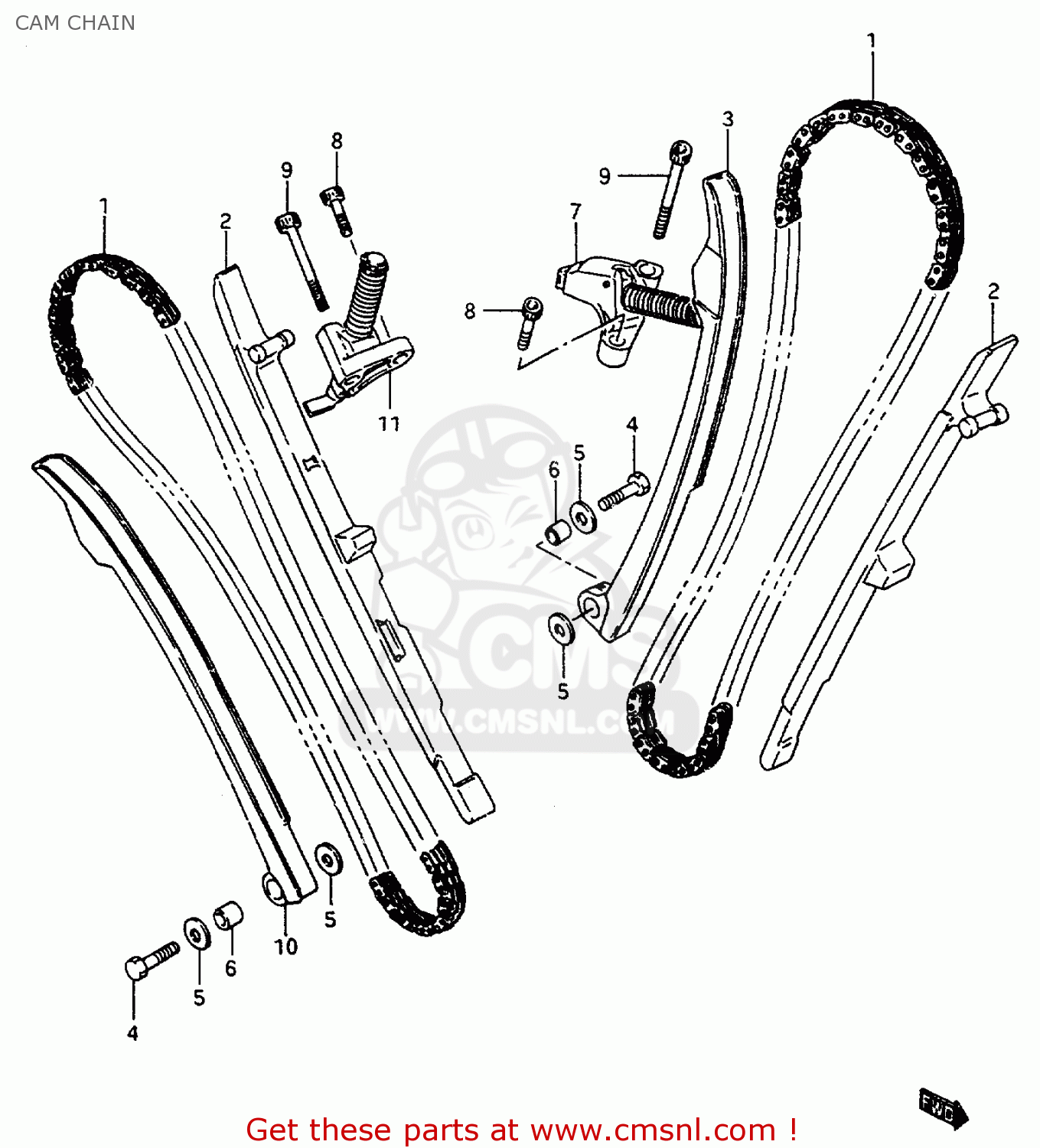

Cam chain diagram VS600GL 1995 (S) ITALY (E34)

CAM CHAIN VS600GL 1995 (S) ITALY (E34)

CAM CHAIN VS600GL 1995 (S) ITALY (E34)

prices are in EUR

ref

part #

description

quantity

1

1276038A11
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 155.00

2

1277138A02
ref: 2

GUIDE,CAM CHAIN

€ 39.00

3

1281138A01
ref: 3

TENSIONER,FR CAM CHAIN

€ 39.00

4

0910006129
ref: 4

BOLT(6X26)

€ 2.00

5

0821106182
ref: 5

WASHER

€ 2.00

6

0918006148
ref: 6

SPACER(6X11X11)

€ 3.50

7

1283138A00
ref: 7

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

8

0713006203
ref: 8

BOLT,CRKCASE,R

€ 3.00

9

0713006453
ref: 9

BOLT

€ 2.50

10

1281638A01
ref: 10

TENSIONER,RR CAM CHAIN

€ 28.00

11

1283238A00
ref: 11

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00
