RADIATOR
VS600GL 1995 (S) ITALY (E34)

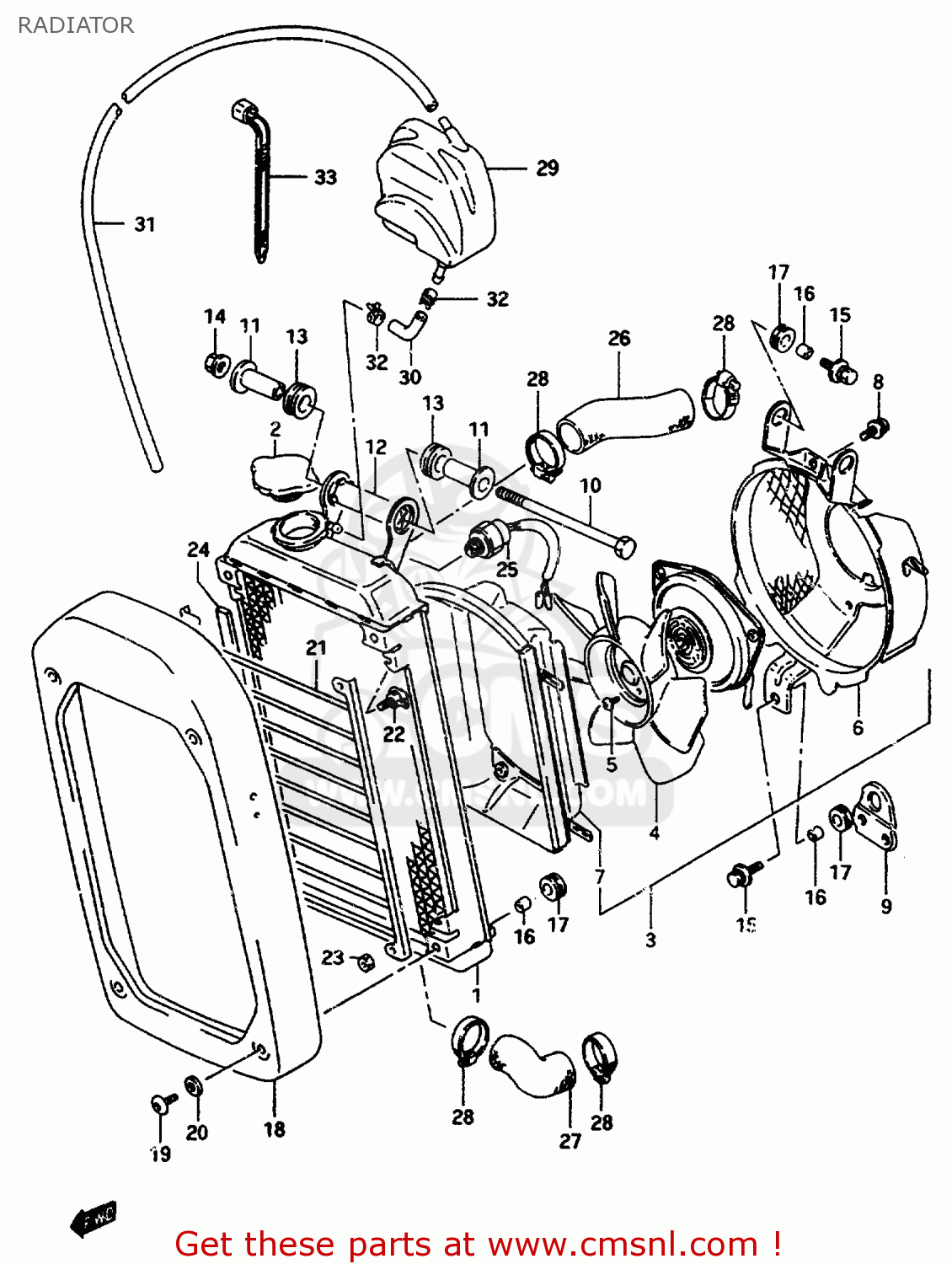

Radiator diagram VS600GL 1995 (S) ITALY (E34)
RADIATOR VS600GL 1995 (S) ITALY (E34)
×
prices are in EUR
ref
part #
description
quantity
1
1771038A01
ref: 1
RADIATOR COMP,WATER
€ 681.00
2
1773012C01
ref: 2
CAP,RADIATOR
€ 40.00
3
1780038A03
ref: 3
FAN ASSY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5
0211204063
ref: 5
SCREW 4X6
€ 2.00
6
1777039A00
ref: 6
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211275103
ref: 8
SCREW
€ 1.50
9
1780838A00
ref: 9
BRACKET,RADIATOR FAN
€ 4.00
10
0910010277
ref: 10
BOLT(10X135)
€ 3.00
11
1778238A01
ref: 11
SPACER,RADIATOR CUSHION NO.2
€ 12.50
12
1778338A00
ref: 12
SPACER,RDTR CUSH NO.2 OUTER
€ 2.00
13
0932015008
ref: 13
CUSHION
€ 3.50
14
0831931105
ref: 14
NUT 10MM
€ 3.00
15
0911806067
ref: 15
BOLT
€ 1.50
16-1
0918006154
ref: 16-1
MODEL S/T
SPACER (6X9X8)
€ 2.00
16-2
0918006261
ref: 16-2
MODEL V
SPACER(6.5X9X8)
€ 2.00
17
0932008037
ref: 17
CUSHION
€ 4.00
18-1
1776138A501ZV
ref: 18-1
MODEL S
COVER, RADIATOR (GREEN)
€ 74.50
18-2
1776138A5033J
ref: 18-2
MODEL S/T/V
COVER,RADIATOR(BLACK)
€ 74.50
18-3
1776138A50Y0V
ref: 18-3
MODEL V
COVER,RADIATOR
€ 74.50
18-4
1776138A5019A
ref: 18-4
MODEL T
COVER,RADIATOR
€ 74.50
18-5
1776138A401ZV
ref: 18-5
MODEL S E18,W/HOLES
COVER, RADIATOR (GREEN)
€ 74.50
18-6
1776138A4033J
ref: 18-6
MODEL S/T/V E18,W/HO
COVER,RADIATOR
€ 74.50
18-7
1776138A4019A
ref: 18-7
MODEL T E18,W/HOLES
COVER,RADIATOR
€ 74.50
18-8
1776138A40Y0V
ref: 18-8
MODLE V E18,W/HOLES
COVER, RADIATOR (GREEN)
€ 74.50
19
0913906076
ref: 19
SCREW(6X10)
€ 2.50
20
0916006093
ref: 20
WASHER (6.2X14X2)
€ 2.00
21
1779038A00
ref: 21
BUMPER COMP,RADIATOR
€ 25.50
22
0911905014
ref: 22
BOLT
€ 2.50
23
0831000053
ref: 23
NUT
€ 2.50
24
1779538A00
ref: 24
CUSHION,RADIATOR BUMPER
€ 3.00
25
1768024A02
ref: 25
SWITCH,RADIATOR FAN
€ 106.50
26
1785138A00
ref: 26
HOSE,RADIATOR INLET
€ 11.50
27
1785838820
ref: 27
HOSE,WATER PUMP OUTLET
€ 16.50
28
0940232511
ref: 28
CLAMP
€ 11.50
29
1791138A00
ref: 29
TANK,RESERVOIR
€ 23.00
30
1798138A01
ref: 30
HOSE,RESERVE TANK INLET
€ 7.00
31
1798238810
ref: 31
HOSE,RESERVOIR TANK OUTLET
€ 16.00
32
0940108411
ref: 32
CLIP
€ 3.00
33
0940714403
ref: 33
CLAMP(L:125)
€ 2.50
