FUEL TANK (MODEL V)
VS600GL 1995 (S) ITALY (E34)

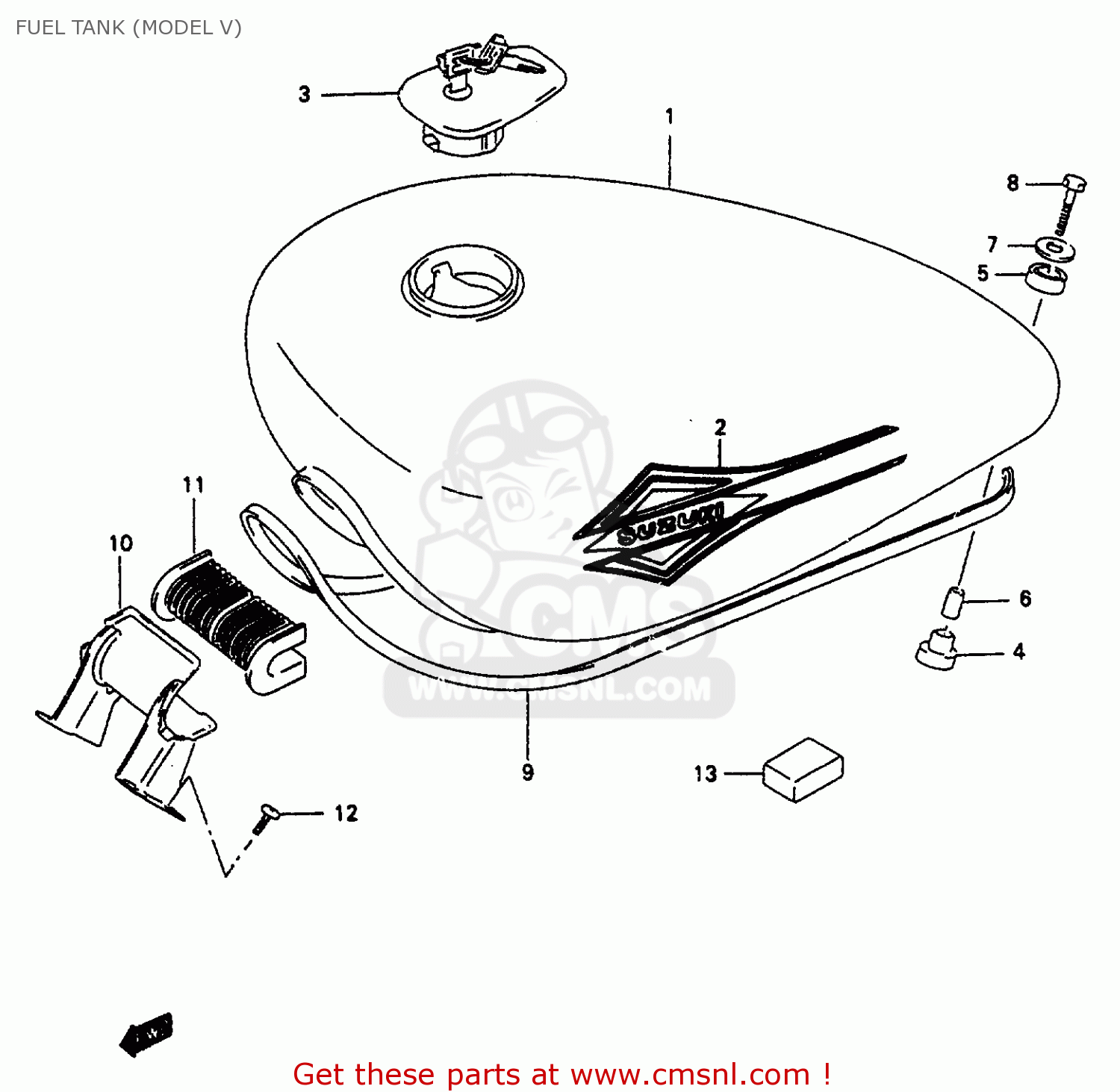

Fuel tank (model v) diagram VS600GL 1995 (S) ITALY (E34)
FUEL TANK (MODEL V) VS600GL 1995 (S) ITALY (E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410039E1033J
ref: 1-1
TANK ASSY, FUEL (BLACK)
€ 633.50
1-2
4410039E10Y0V
ref: 1-2
TANK ASSY, FUEL
€ 533.00
1-3
4410039E2033J
ref: 1-3
E17,E22
TANK ASSY, FUEL (BLACK)
€ 633.50
1-4
4410039E20Y0V
ref: 1-4
E17,E22
TANK ASSY, FUEL (GREEN)
€ 533.00
2-1
6811039E10G4N
ref: 2-1
FOR 33J
TAPE SET, FUEL TANK
€ 45.00
2-2
6811039E10G4P
ref: 2-2
FOR Y0V
TAPE SET, FUEL TANK
€ 52.50
3
4420038820
ref: 3
CAP SET,FUEL TANK
€ 107.50
4
0932010020
ref: 4
CUSHION
€ 4.00
5
0932014013
ref: 5
CUSHION
€ 3.00
6
0918006273
ref: 6
SPACER(6.5X9X21.5)
€ 5.50
7
0916006072
ref: 7
WASHER (6.5X24X1.6)
€ 2.00
8
0912806055
ref: 8
SCREW
€ 2.50
9
6824104X5000B
ref: 9
MOLDING
€ 23.00
10
4425038A01019
ref: 10
BRACKET,FUEL TANK FR
€ 56.00
11
4451138A01
ref: 11
CUSHION,FUEL TANK FR
€ 10.50
12
0211276163
ref: 12
SCREW
€ 2.00
13
4451238B00
ref: 13
CUSHION
€ 6.00
12
0211276163
ref: 12
SCREW
€ 2.00
13
4451238B00
ref: 13
CUSHION
€ 6.00
