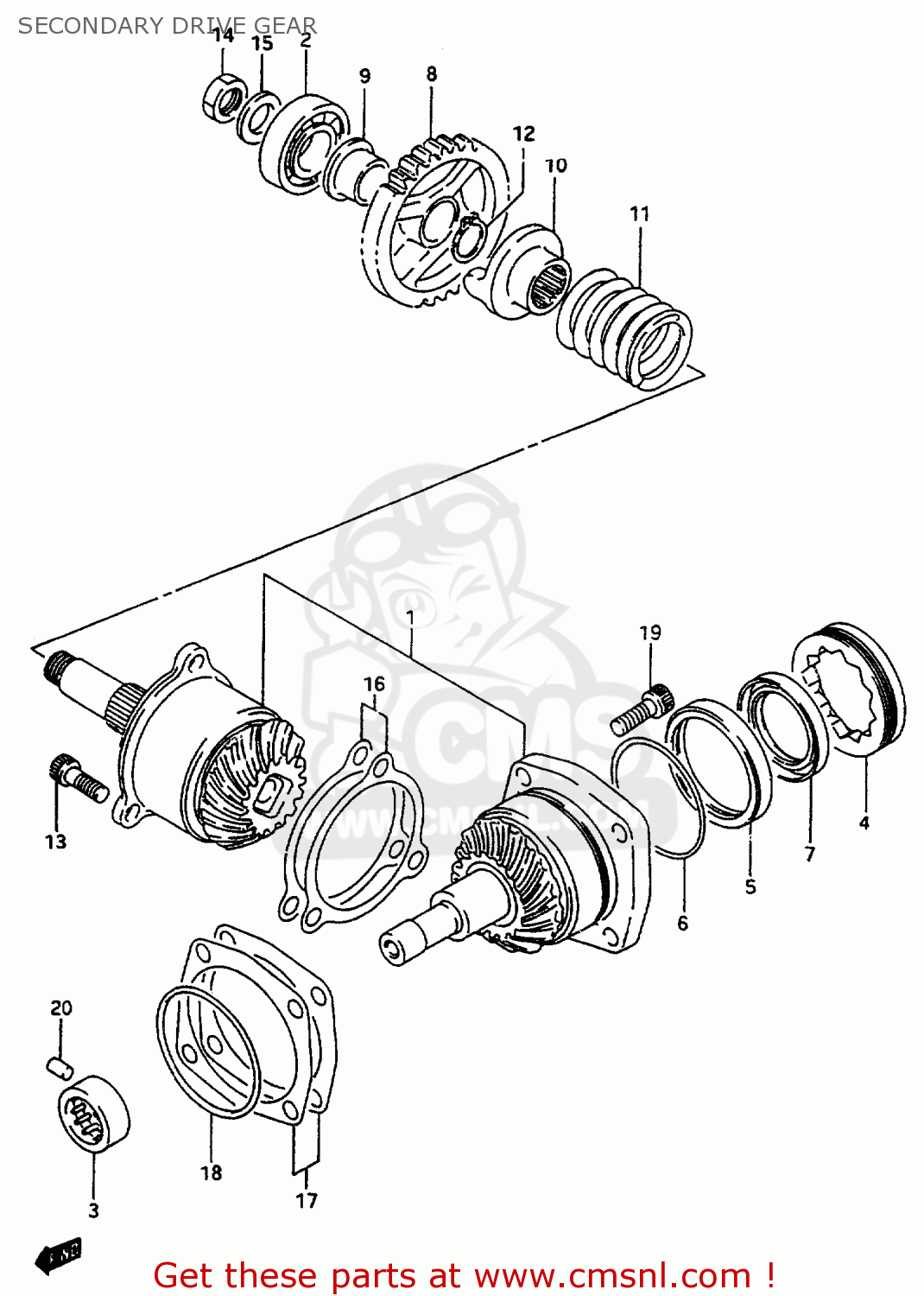

SECONDARY DRIVE GEAR

ref

part #

description

quantity

1

2490038822
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,238.50

2

0926220073
ref: 2

BEARING(20X52X15)

€ 19.00

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

2494238A50
ref: 4

STOPPER,SEC DRIVEN BEARING

€ 34.50

5

2494338A50
ref: 5

HOUSING,OIL SEAL

€ 54.50

6

0928060003
ref: 6

O RING(D:1.2,ID:59.6)

€ 2.00

7

0928338016
ref: 7

SEAL,OIL(38X54X8.5)

€ 12.00

8

2463138A00
ref: 8

GEAR,REDUCTION DRIVEN(NT:30)

€ 95.50

9

2463238A00
ref: 9

BUSH,REDUCTION DRIVEN GEAR

€ 13.00

10

2492238A00
ref: 10

DOG,OUTPUT CAM

€ 42.00

11

0944044002
ref: 11

SPRING

€ 15.50

12

0833131216
ref: 12

CIRCLIP

€ 2.00

13

0713008253
ref: 13

BOLT

€ 3.50

14

0914016005
ref: 14
09140-16014

NUT

€ 4.50

15

0916016029
ref: 15

WASHER(16X29X4)

€ 6.00

16

2493538810
ref: 16
T:0.3/0.35/0.4/0.5/0

SHIM SET,SEC DRIVE GEAR

€ 17.00

17

2494505810
ref: 17
T:0.3/0.35/0.4/0.5/0

SHIM SET,SEC DRIVEN HOUSING

€ 20.00

18

0928067004
ref: 18

O RING(D:2.1,ID:66.2)

€ 2.50

19

0713008253
ref: 19

BOLT

€ 3.50

20

0422107129
ref: 20

PIN

€ 1.50
