CARBURETOR (FRONT)
VS700GLP INTRUDER 1990 (L) USA (E03)

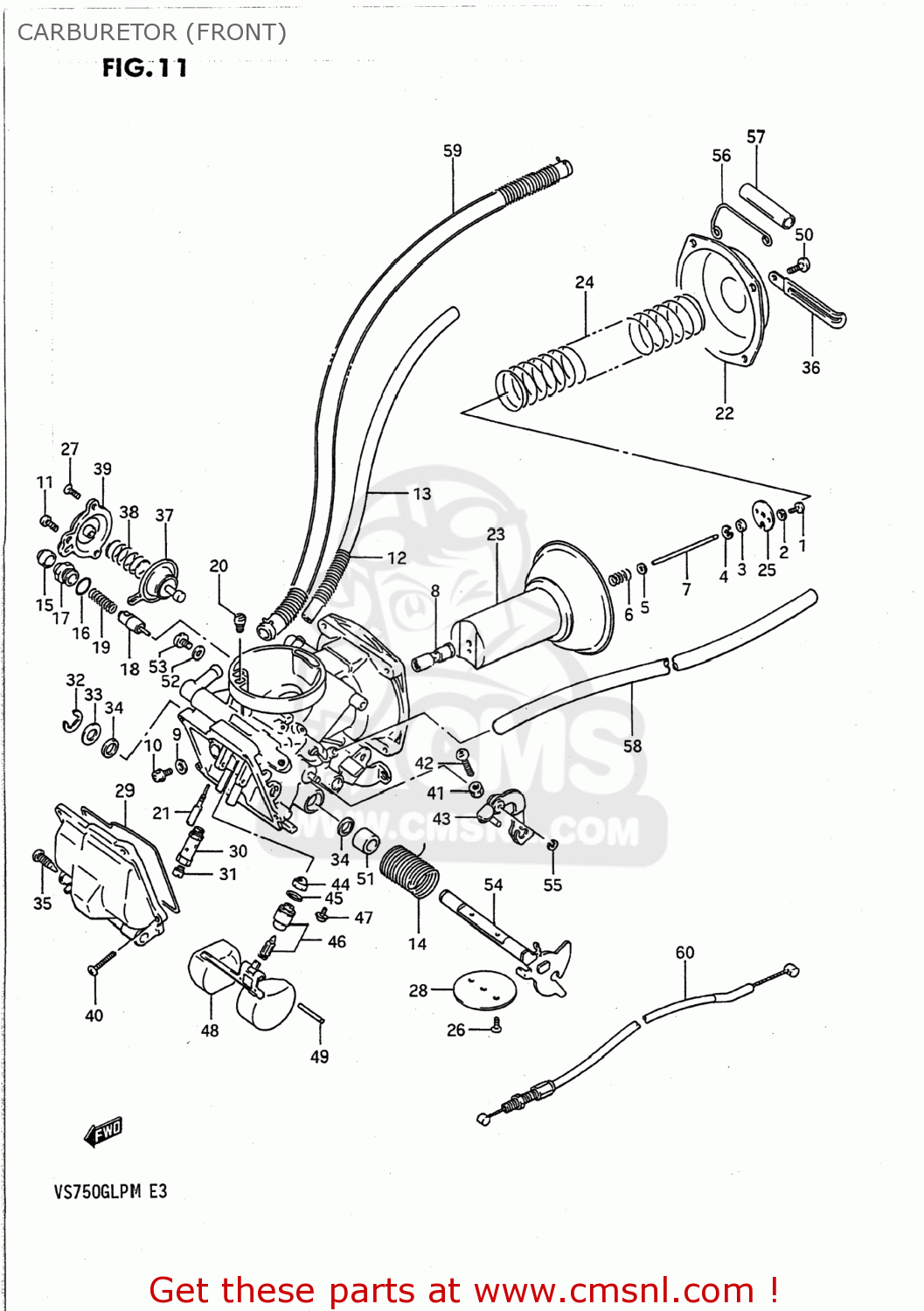

Carburetor (front) diagram VS700GLP INTRUDER 1990 (L) USA (E03)
CARBURETOR (FRONT) VS700GLP INTRUDER 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1321039A00
ref:
CARBURETOR ASSEMBLY,FRONT
€ 278.50
1321039A10
ref:
CARBURETOR ASSEMBLY,FRONT
€ 276.00
1
0211203066
ref: 1
02112-0306B
SCREW
€ 2.00
2
0832121036
ref: 2
08321-2103B
LOCK WASHER
€ 1.50
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7
1338338A00
ref: 7
NEEDLE JET
€ 10.00
8
0949400592
ref: 8
JET,NEEDLE(P-4)
€ 32.50
9
1333244080
ref: 9
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
10
1360505A10
ref: 10
SCREW
€ 8.50
11
0211204106
ref: 11
02112-0410A
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
€ 8.50
13
1368438A20
ref: 13
44420-44AR0
HOSE
€ 13.00
14
1357338A01
ref: 14
SPRING,SHAFT RETURN
€ 0.00
15
1368104010
ref: 15
CAP
€ 3.00
16
1327847090
ref: 16
O RING
€ 2.00
17
1341838A00
ref: 17
HOLDER,GUIDE
€ 11.50
18
1341138400
ref: 18
13411-01400
PLUNGER
€ 11.50
19
1341708210
ref: 19
SPRING
€ 4.50
20
0949270004
ref: 20
JET,PILOT(70)
€ 9.50
21
0949225007
ref: 21
JET,PILOT(25)
€ 8.50
22
1350238A00
ref: 22
COVER,DIAPHRAGM
€ 34.00
23
1350005A10
ref: 23
DIAPHRAGM,CARBURETOR
€ 178.00
24
1350305A10
ref: 24
SPRING,DIAPHRAGM
€ 12.00
25
1338937400
ref: 25
PLATE
€ 5.50
26
1360444080
ref: 26
SCREW
€ 3.50
27
1360338A00
ref: 27
02122-0410A
SCREW
€ 2.50
28
1355138A00
ref: 28
VALVE,THROTTLE
€ 0.00
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
€ 14.00
31
0949126013
ref: 31
09491-26019
JET,MAIN (132.5)
€ 18.50
32
1361744080
ref: 32
E RING
€ 3.50
33
1355747070
ref: 33
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
34
1355605A10
ref: 34
SEAL,THROTTLE SHAFT
€ 3.50
35
1324702340
ref: 35
PLUG,DRAIN
€ 5.50
36
0940406401
ref: 36
09404-06432
CLAMP L:35
€ 2.50
37
1348005A10
ref: 37
DIAPHRAGM ASSY
€ 54.50
38
1348105A10
ref: 38
13481-45C10
SPRING
€ 5.50
39
1348438A00
ref: 39
COVER
€ 20.50
40
1360104148
ref: 40
SCREW
€ 2.50
41
1360705A10
ref: 41
08310-00047
NUT
€ 2.00
42
0211204306
ref: 42
02112-0430B
SCREW
€ 2.00
43
1355438B10
ref: 43
13554-45C20
LEVER,ASSEMBLY
€ 38.50
44
1337684110
ref: 44
13376-19F00
FILTER
€ 6.50
45
1337444080
ref: 45
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
46
1337001401
ref: 46
VALVE ASSY,NEEDLE
€ 57.50
47
1360205A10
ref: 47
SCREW
€ 4.00
48
1325005A10
ref: 48
FLOAT
€ 34.00
49
1325420010
ref: 49
PIN,FLOAT
€ 3.00
50
0211205126
ref: 50
02112-0512A
SCREW 5X12
€ 1.50
51
1357401400
ref: 51
RING,THROTTLE VALVE
€ 0.00
52
1353138A00
ref: 52
09168-05010
WASHER
€ 2.00
53
1360573000
ref: 53
SCREW
€ 10.50
54
1355038A00
ref: 54
SHAFT ASSEMBLY,THROTTLE
€ 0.00
55
1329849000
ref: 55
13415-38300
E-RING
€ 2.00
56
1367138A00
ref: 56
CLIP
€ 10.50
57
1368438A00
ref: 57
09352-60103-600
HOSE
€ 18.00
58
1368038A10
ref: 58
13683-38B01
HOSE
€ 19.50
59
1368338A20
ref: 59
13683-38A21
HOSE ASSEMBLY
€ 70.00
60
1364138A00
ref: 60
13641-38A01
CABLE,IDLE SYNCRO
€ 16.50
