CARBURETOR (REAR)
VS700GLP INTRUDER 1990 (L) USA (E03)

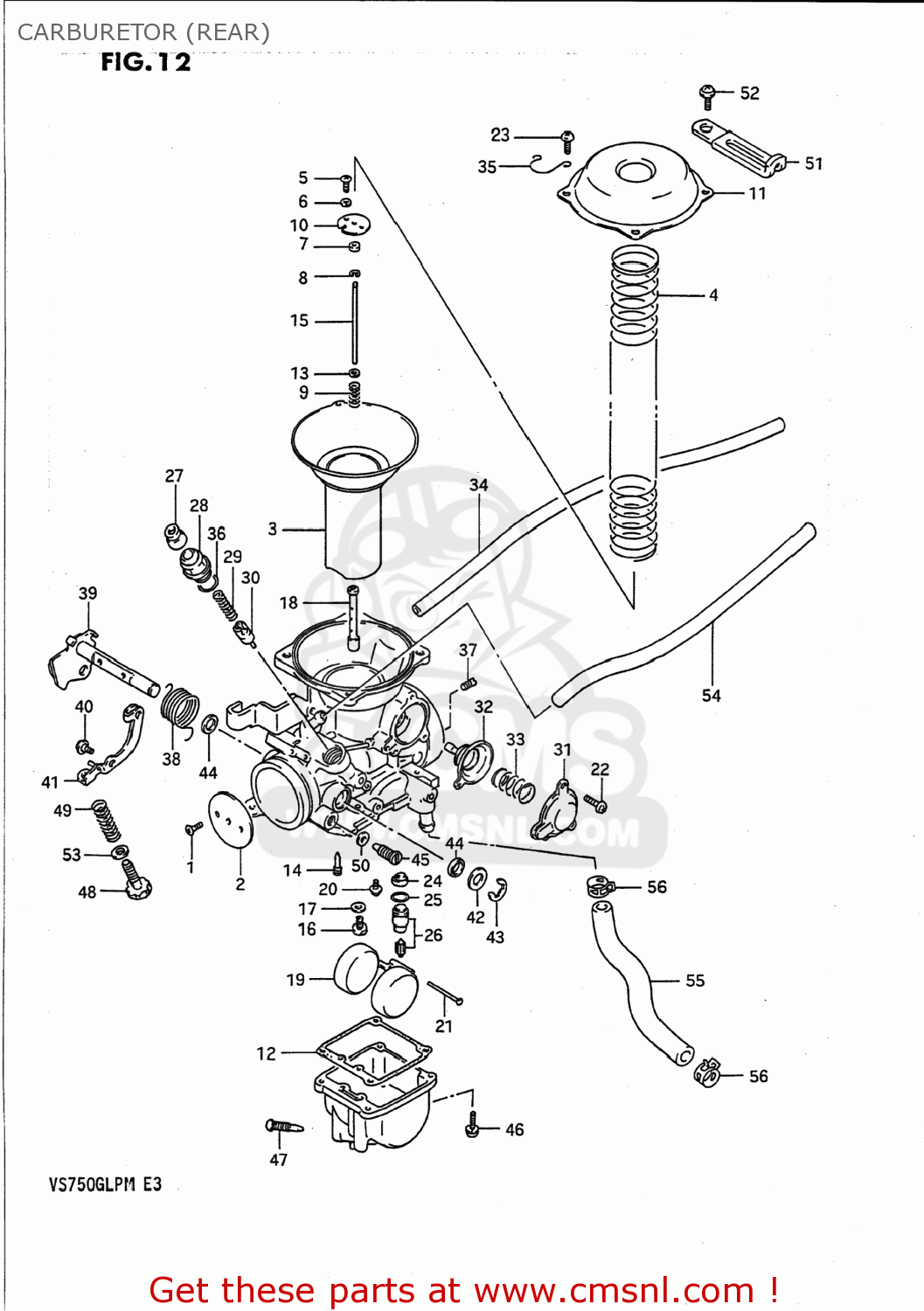

Carburetor (rear) diagram VS700GLP INTRUDER 1990 (L) USA (E03)
CARBURETOR (REAR) VS700GLP INTRUDER 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1322039A00
ref:
CARBURETOR ASSEMBLY,REAR
€ 302.00
1322039A10
ref:
CARBURETOR ASSEMBLY,REAR
€ 276.00
1
1360444080
ref: 1
SCREW
€ 3.50
2
1355138A00
ref: 2
VALVE,THROTTLE
€ 0.00
3
1350038A10
ref: 3
DIAPHRAGM,CARBURETOR
€ 222.50
4
1350305A10
ref: 4
SPRING,DIAPHRAGM
€ 12.00
5
0211203066
ref: 5
02112-0306B
SCREW
€ 2.00
6
0832121036
ref: 6
08321-2103B
LOCK WASHER
€ 1.50
7
1338747010
ref: 7
RING
€ 7.50
8
1339410010
ref: 8
CLIP
€ 4.50
9
1338844030
ref: 9
SPRING
€ 6.00
10
1338937400
ref: 10
PLATE
€ 5.50
11
1350238A10
ref: 11
13502-45CE0
COVER,DIAPHRAGM
€ 37.50
12
1325138A10
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
13
1338244030
ref: 13
WASHER
€ 3.50
14
0949240014
ref: 14
JET(40)
€ 8.50
15
1338338A10
ref: 15
NEEDLE JET
€ 9.00
16
0949126012
ref: 16
JET,MAIN(132.5)
€ 11.50
17
1333244080
ref: 17
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
18
0949400502
ref: 18
JET,NEEDLE
€ 18.00
19
1325223010
ref: 19
FLOAT
€ 19.00
20
1360205A10
ref: 20
SCREW
€ 4.00
21
1325492311
ref: 21
PIN,FLOAT
€ 2.00
22
0211204106
ref: 22
02112-0410A
SCREWM4X0.7X10
€ 1.00
23
0211204086
ref: 23
02112-0408A
SCREW
€ 2.00
24
1337684110
ref: 24
13376-19F00
FILTER
€ 6.50
25
1337444080
ref: 25
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
26
1337001401
ref: 26
VALVE ASSY,NEEDLE
€ 57.50
27
1368104010
ref: 27
CAP
€ 3.00
28
1341843410
ref: 28
HOLDER,GUIDE
€ 6.50
29
1341722010
ref: 29
SPRING
€ 3.00
30
1341138400
ref: 30
13411-01400
PLUNGER
€ 11.50
31
1348438A10
ref: 31
COVER
€ 16.00
32
1348005A10
ref: 32
DIAPHRAGM ASSY
€ 54.50
33
1348105A10
ref: 33
13481-45C10
SPRING
€ 5.50
34
1368438A20
ref: 34
44420-44AR0
HOSE
€ 13.00
35
1369202500
ref: 35
CLIP
€ 7.00
36
1327847090
ref: 36
O RING
€ 2.00
37
0949265005
ref: 37
JET,AIR(65)
€ 7.50
38
1357338A11
ref: 38
SPRING,SHAFT RETURN
€ 0.00
39
1355038A10
ref: 39
SHAFT ASSEMBLY
€ 0.00
40
1360205A30
ref: 40
SCREW
€ 4.50
41
1355438A10
ref: 41
LEVER,ASSY
€ 25.00
42
1355747070
ref: 42
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
43
1361744080
ref: 43
E RING
€ 3.50
44
1355605A10
ref: 44
SEAL,THROTTLE SHAFT
€ 3.50
45
1360573000
ref: 45
SCREW
€ 10.50
46
1360104148
ref: 46
SCREW
€ 2.50
47
1324702340
ref: 47
PLUG,DRAIN
€ 5.50
48
1326738A10
ref: 48
13267-39E50
ADJUSTER
€ 13.00
49
1327193011
ref: 49
SPRING
€ 4.50
50
1353138A00
ref: 50
09168-05010
WASHER
€ 2.00
51
1367105A20
ref: 51
09404-06433
CLIP
€ 3.00
52
1360238A20
ref: 52
02142-0408B
SCREW
€ 1.50
53
1327737100
ref: 53
WASHER
€ 2.00
54
1368038A10
ref: 54
13683-38B01
HOSE
€ 19.50
54
1368038A10
ref: 54
13683-38B01
HOSE
€ 19.50
55
1368338A01
ref: 55
13683-38E01
HOSE
€ 21.50
56
0940113408
ref: 56
09401-13417
CLIP
€ 2.50
