STARTING MOTOR (MODEL J/K/L)

VS700GLP INTRUDER 1990 (L) USA (E03)

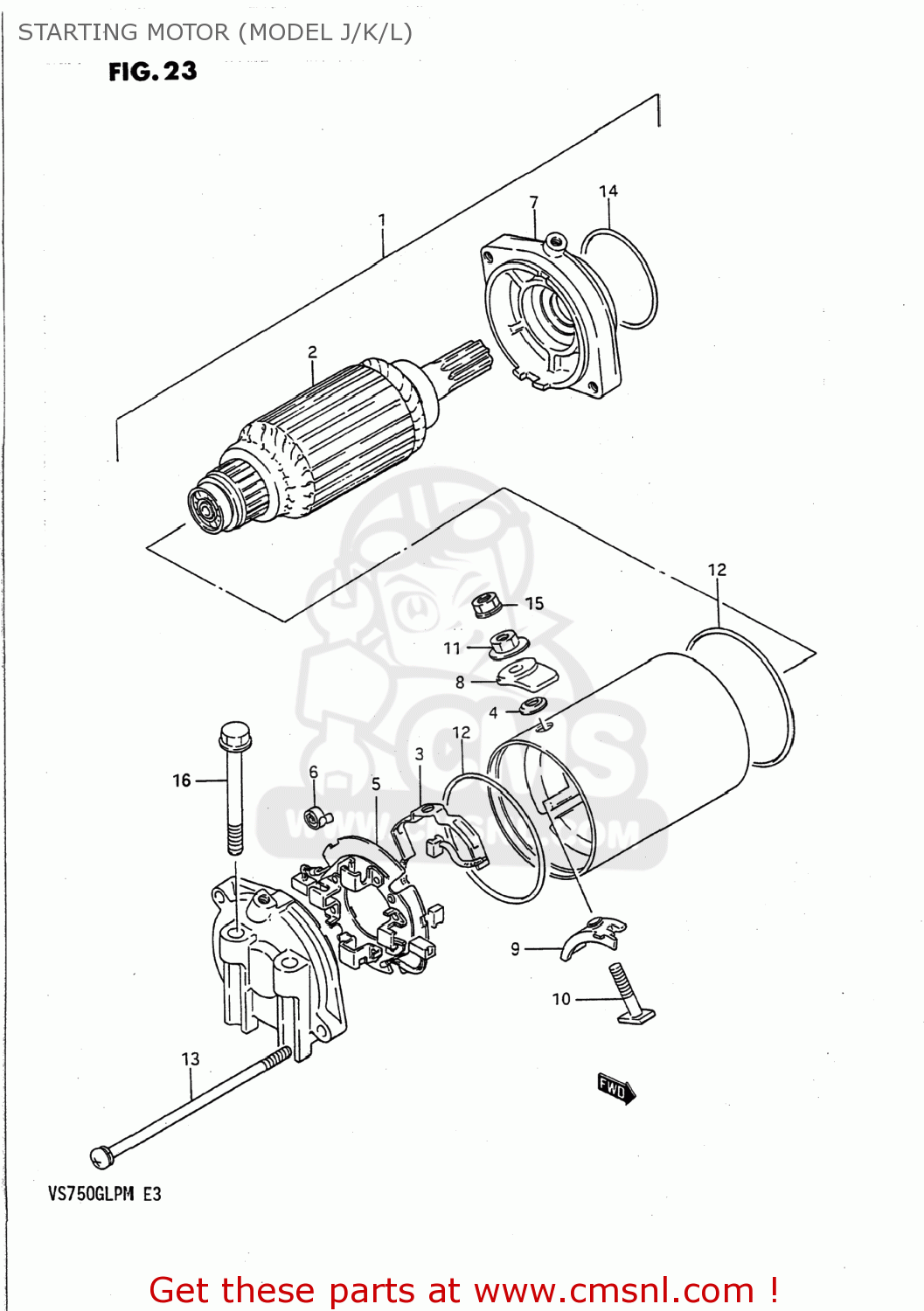

Starting motor (model j/k/l) diagram VS700GLP INTRUDER 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110038A10H17
ref: 1
31100-45C01

MOTOR ASSEMBLY,STARTING

€ 472.00

2-1

3131038A01H17
ref: 2-1
31310-24B01-H17

ARMATURE

€ 173.00

2-2

3131024B01H17
ref: 2-2

ARMATURE

€ 173.00

3113148B00
ref: 3

TERMINAL SET,BRUSH

€ 35.00

3114348B00
ref: 4

GASKET (NAS)

€ 6.50

3113238A00
ref: 5
31132-48B00

HOLDER SET,BRUSH (-)

€ 51.00

3113565010
ref: 6

SPRING

€ 3.00

3115038A00
ref: 7

BRACKET SET

€ 79.50

3117248B10
ref: 8

BUSHING

€ 3.00

3117248B20
ref: 9

BUSHING

€ 8.50

3113048B00
ref: 10

BOLT

€ 4.50

3114548B00
ref: 11

NUT

€ 1.50

3126444110
ref: 12

O RING

€ 8.00

3128138A00
ref: 13
31281-24B10

BOLT

€ 5.00

3115638A00
ref: 14

O RING

€ 8.00

0836135066
ref: 15
08361-3506A

NUT

€ 2.00

0154706607
ref: 16

BOLT

€ 2.50

0154706607
ref: 16

BOLT

€ 2.50
