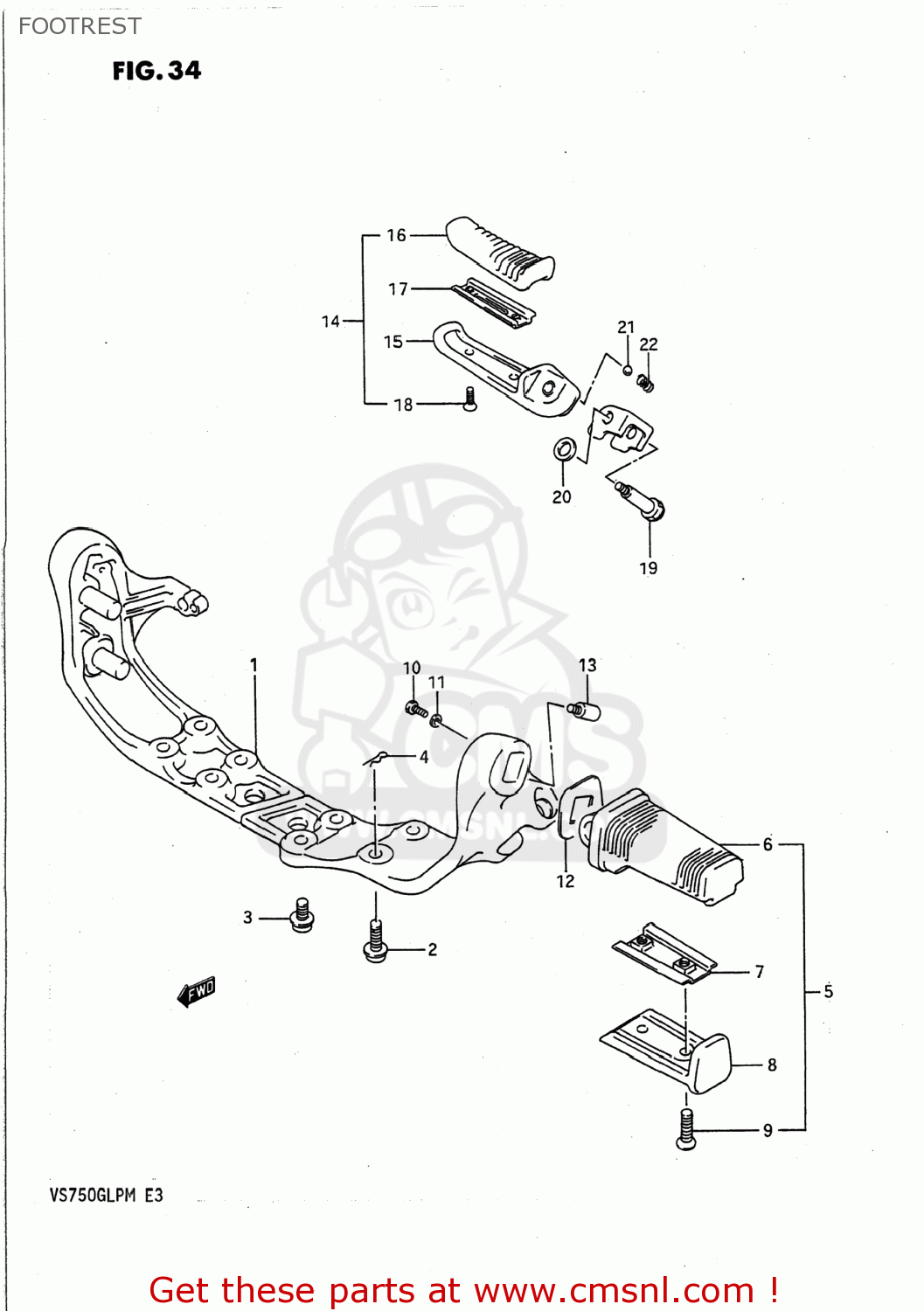

FOOTREST

ref

part #

description

quantity

1

4351038A41
ref: 1
43510-38E01

BRACKET COMP,FRONT FOOTREST

€ 968.00

2

0910608064
ref: 2

BOLT(8X25)

€ 4.50

3

0712008208
ref: 3
07120-0820A

BOLT

€ 3.00

4

0938508005
ref: 4

SNAP

€ 2.00

5-1

4350138B10
ref: 5-1
43501-38B11

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 97.00

5-2

4350238B10
ref: 5-2
43502-38B11

FOOTREST ASSEMBLY,FRONT,LEFT

€ 97.00

6

4355138B00
ref: 6

RUBBER,FR FOOTREST

€ 12.50

7

4358038B10
ref: 7

PLATE,RUBBER STOPPER

€ 8.50

8

4358538B10
ref: 8
43585-38B11

COVER,FRONT FOOTREST

€ 45.50

9

0912705018
ref: 9

SCREW(5X20)

€ 2.50

10

0110705127
ref: 10
01500-05127

BOLT 5X12

€ 2.00

11

0832121057
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

4354638B00
ref: 12
43546-38B01

WASHER,FRONT FOOTREST

€ 5.00

13

4364138B00
ref: 13
09106-06101

BOLT,FRONT FOOTREST

€ 4.50

14-1

4360038A01
ref: 14-1

FOOTREST ASSY RH

€ 39.50

14-2

4370038A01
ref: 14-2

FOOTREST ASSY PILLION LH

€ 35.50

15-1

4361038A00
ref: 15-1
43600-38A01

BAR COMP,PILLION FOOTREST

€ 39.50

15-2

4371038A00
ref: 15-2
43700-38A01

BAR COMP,PILLION FOOTREST

€ 35.50

16

4361238A00
ref: 16

RUBBER,PILLION FOOTREST

€ 12.00

17

4363238A00
ref: 17

PLATE,RUBBER STOPPER

€ 4.00

18

0912705017
ref: 18

SCREW(5X16)

€ 2.00

19

0911106050
ref: 19

BOLT(6X34.5)

€ 5.00

20

0822108164
ref: 20

SHIM

€ 1.50

21

0611107004
ref: 21

BALL

€ 1.50

22

0944005031
ref: 22

SPRING

€ 1.50

all assemblies
