Buy Suzuki VS Parts Online


REAR COMBINATION LAMP

VS700GLP INTRUDER 1991 (M) USA (E03)

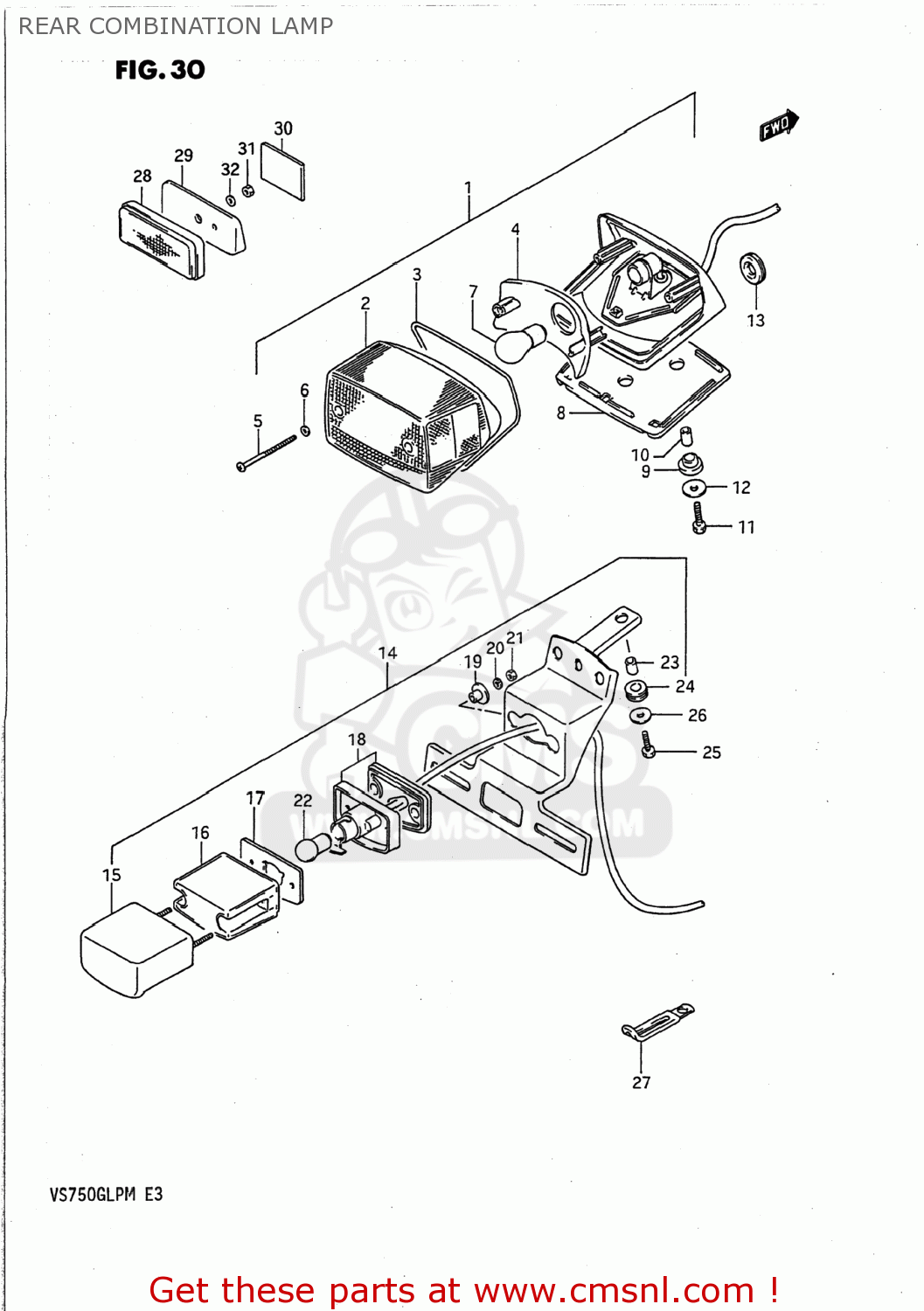

Rear combination lamp diagram VS700GLP INTRUDER 1991 (M) USA (E03)

REAR COMBINATION LAMP VS700GLP INTRUDER 1991 (M) USA (E03)
REAR COMBINATION LAMP VS700GLP INTRUDER 1991 (M) USA (E03)
REAR COMBINATION LAMP VS700GLP INTRUDER 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571039A00
ref: 1
35710-39A00-999
LAMP ASSEMBLY,REAR COMBINATION
€ 271.50
2
3571238A30
ref: 2
LENS
3571238A30
€ 54.50
3
3571338A00
ref: 3
35713-31D00
GASKET (NAS)
3571338A00
€ 9.50
4
3571438A00
ref: 4
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
3572344130
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112128
ref: 7
BULB(12V21/5W,BF141-49642A)
0947112128
€ 6.00
8
3576538A00
ref: 8
CUSHION
3576538A00
€ 13.50
9
3576426470
ref: 9
CUSHION
3576426470
€ 2.50
10
3576637190
ref: 10
SPACER
3576637190
€ 2.00
11-1
0110706256
ref: 11-1
01500-0625A
BOLT
€ 2.50
11-2
0911606087
ref: 11-2
09116-06047
BOLT 6X25
€ 2.00
12-1
0916006020
ref: 12-1
09160-06066
WASHER
0916006020
€ 2.00
13
0930809013
ref: 13
GROMMET
€ 2.00
14
3591038A33
ref: 14
LAMP ASSY,LICENSE
3591038A33
€ 149.00
15
3591738A20
ref: 15
COVER,LICENSE LAMP
3591738A20
€ 121.50
16
3591238A30
ref: 16
LENS
3591238A30
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
18
3591538A31
ref: 18
HOUSING,LICENSE LAMP
3591538A31
€ 39.50
19
3576638A30
ref: 19
SPACER
3576638A30
€ 2.00
20
0832121047
ref: 20
08321-0104A
WASHER,LOCK 4M
0832121047
€ 2.00
21
0831011047
ref: 21
08310-00047
NUT
0831011047
€ 2.00
22-1
0947112037
ref: 22-1
09471-12141
BULB
€ 7.00
22-2
0947112141
ref: 22-2
BULB(12V8W)
0947112141
€ 7.00
23
3576638A00
ref: 23
SPACER
3576638A00
€ 3.00
24
3576538A30
ref: 24
CUSHION
3576538A30
€ 4.00
25
0110706206
ref: 25
01500-0620A
BOLT,M6X1X20
0110706206
€ 2.00
26
0916006057
ref: 26
09160-06109
WASHER
€ 2.00
27
0940406401
ref: 27
09404-06432
CLAMP L:35
0940406401
€ 2.50
28-1
3597038B00
ref: 28-1
REFLEX REFLECTOR ASSY,RR
3597038B00
€ 27.00
28-2
3597038A00
ref: 28-2
REFLEX REFLECTOR ASSY,RR
3597038A00
€ 25.50
29
3597738B00
ref: 29
35977-38B30
SPACER
€ 3.00
30
3692006400
ref: 30
36920-02200
COVER,HARNESS
€ 3.00
31-1
0831022056
ref: 31-1
08310-0005A
NUT 5MM
0831022056
€ 2.50
31-2
0831616056
ref: 31-2
08316-1005A
NUT
€ 2.50
32
0832221056
ref: 32
08322-0105A
WASHER
€ 2.50
