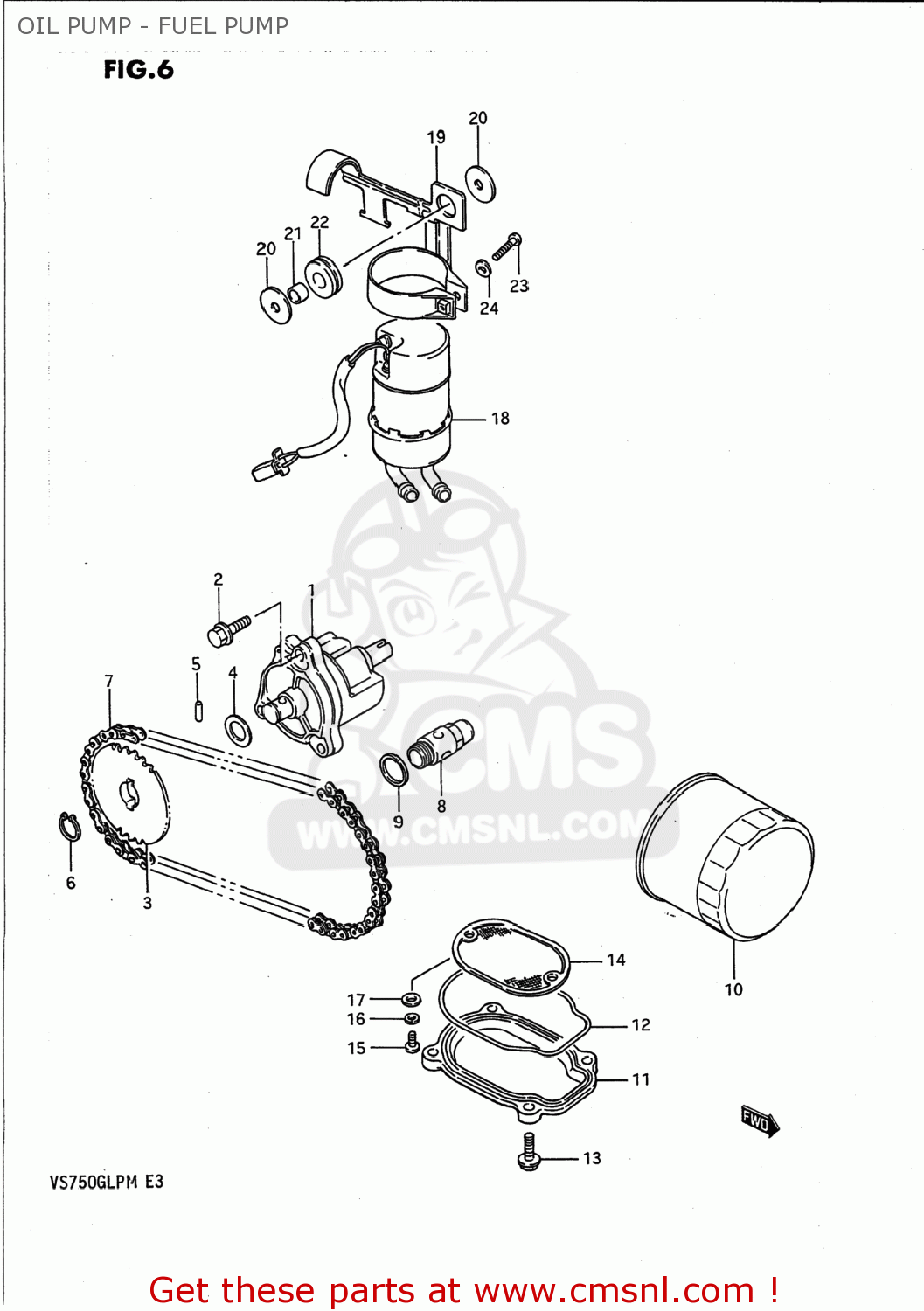

OIL PUMP - FUEL PUMP - VS700GLP INTRUDER 1991 (M) USA (E03)

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

0151706257
ref: 2
01550-06257

BOLT 6X25

€ 2.50

3

1633138A00
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 21.00

4

0822112205
ref: 4

SHIM

€ 1.50

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

0833131128
ref: 6
08331-3112A

CIRCLIP

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8

1644024A01
ref: 8

VALVE ASSY,OIL RELIEF

€ 52.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10

1651006B00
ref: 10
16510-07J00

FILTER,OIL

€ 12.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

0151706207
ref: 13
01550-06207

BOLT 6X20

€ 2.50

14

1652038A00
ref: 14

STRAINER,ENGINE OIL

€ 7.50

15

0211205126
ref: 15
02112-0512A

SCREW 5X12

€ 1.50

16

0832121056
ref: 16
08321-0105A

LOCK WASHER

€ 3.00

17

0832221056
ref: 17
08322-0105A

WASHER

€ 2.50

18

1510038A10
ref: 18

PUMP ASSY,FUEL

€ 364.50

19

1511038A10
ref: 19

BRACKET,FUEL PUMP

€ 13.00

20

0916006004
ref: 20
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

21

0918006082
ref: 21

SPACER(6.5X10.5X6.5)

€ 2.50

22

0932010014
ref: 22

CUSHION

€ 4.00

23

0211204208
ref: 23
02112-0420A

SCREW

€ 1.00

24

0832221047
ref: 24
08322-01047

WASHER 4MM

€ 2.00
