SPEEDOMETER
VS700GLP INTRUDER 1991 (M) USA (E03)

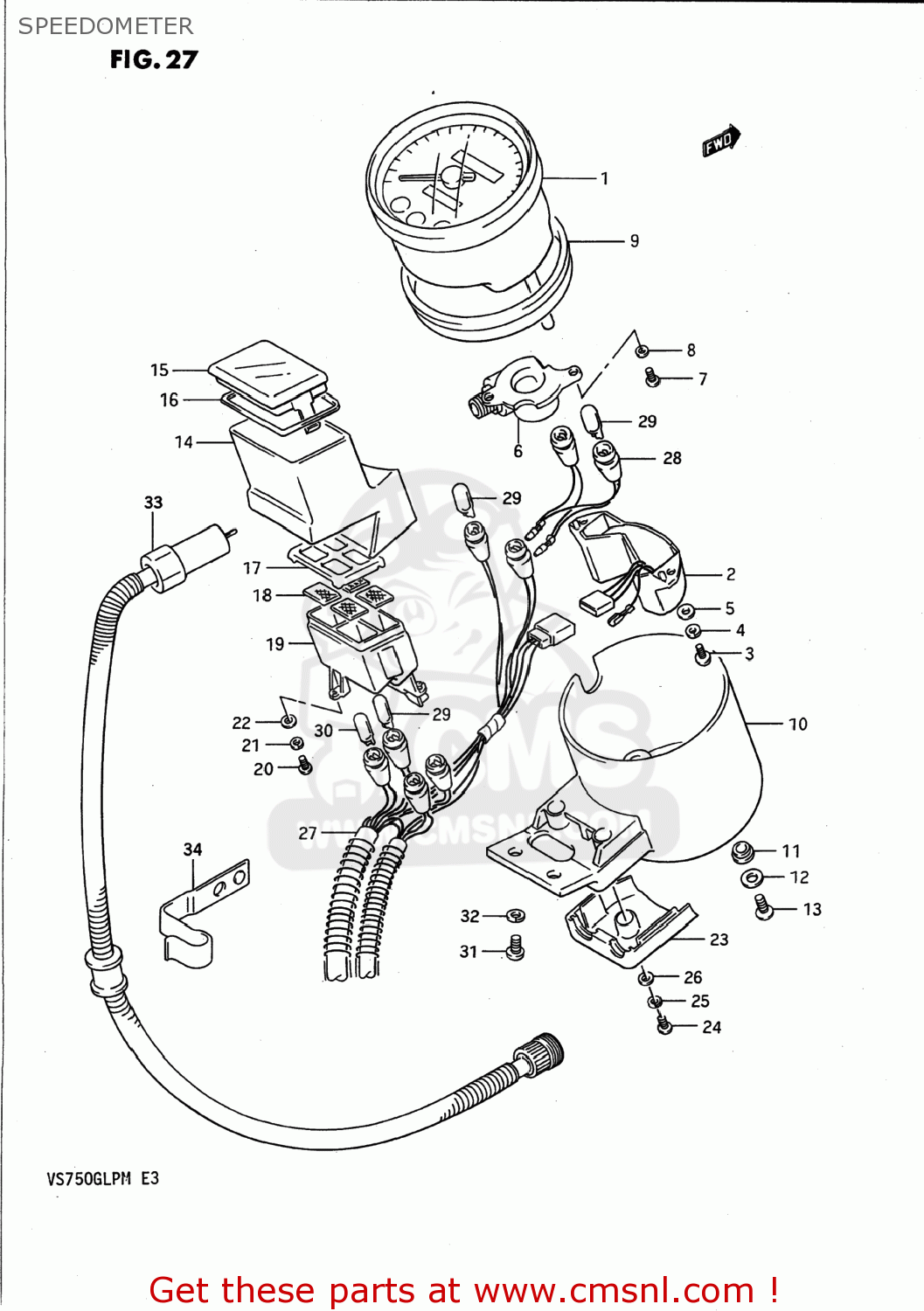

Speedometer diagram VS700GLP INTRUDER 1991 (M) USA (E03)
SPEEDOMETER VS700GLP INTRUDER 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411039A60
ref: 1
METER,SPEEDOMETER
€ 391.00
2
3449039A10
ref: 2
UNIT,WATER TEMP
€ 222.00
3
0211203086
ref: 3
02112-0308A
SCREW
€ 1.50
4
0832121036
ref: 4
08321-2103B
LOCK WASHER
€ 1.50
5
0832221036
ref: 5
08322-0103B
WASHER 3.3X8X0
€ 1.50
6
3413138B00
ref: 6
34131-38A00
BOX,METER GEAR
€ 150.00
7
0211204108
ref: 7
02112-04107
SCREW 4X10
€ 2.00
8
0832121047
ref: 8
08321-0104A
WASHER,LOCK 4M
€ 2.00
9
3428839A00
ref: 9
CUSHION
€ 14.00
10
3419339A20
ref: 10
COVER,METER
€ 182.00
11
3418905A30
ref: 11
CUSHION,METER
€ 4.50
12
3418138A00
ref: 12
WASHER
€ 3.50
13
3416438A00
ref: 13
02112-04087
SCREW
€ 1.50
14
3638139A20
ref: 14
BOX,PILOT
€ 98.00
15
3639338A00
ref: 15
LENS,PILOT BOX
€ 15.00
16
3639538A00
ref: 16
CUSHION
€ 7.00
17
3638638A00
ref: 17
PLATE,PILOT LENS
€ 6.50
18
3630038810
ref: 18
LENS SET
€ 10.50
19
3638238B30
ref: 19
CASE,PILOT LAMP
€ 19.50
20
0211203086
ref: 20
02112-0308A
SCREW
€ 1.50
21
0832121036
ref: 21
08321-2103B
LOCK WASHER
€ 1.50
22
0832221036
ref: 22
08322-0103B
WASHER 3.3X8X0
€ 1.50
23
3415239A20
ref: 23
34152-39A21
COVER,PILOT BOX
€ 67.50
24
0211204087
ref: 24
SCREW
€ 1.50
25
0832121047
ref: 25
08321-0104A
WASHER,LOCK 4M
€ 2.00
26
0832221047
ref: 26
08322-01047
WASHER 4MM
€ 2.00
27
3417339A20
ref: 27
34173-39A21
SOCKET,METER
€ 120.50
28
3417439A10
ref: 28
SOCKET
€ 19.50
29
0947112103
ref: 29
BULB(12V3W,T6.5)
€ 2.50
30
0947112108
ref: 30
BULB(12V1.7W,T6.5)
€ 2.00
31
0211206167
ref: 31
SCREW
€ 2.50
32
0832121067
ref: 32
08321-01067
WASHER,LOCK
€ 2.50
33
3491039A00
ref: 33
CABLE ASSY,SPEEDOMETER
€ 184.00
34
3493838A20
ref: 34
34938-38A02
CLAMP,SPEEDOMETER CABLE
€ 9.50
