FRONT BRAKE HOSE (MODEL J/K/L/M)

VS750GLF 1991 (M) GENERAL EXPORT (E01)

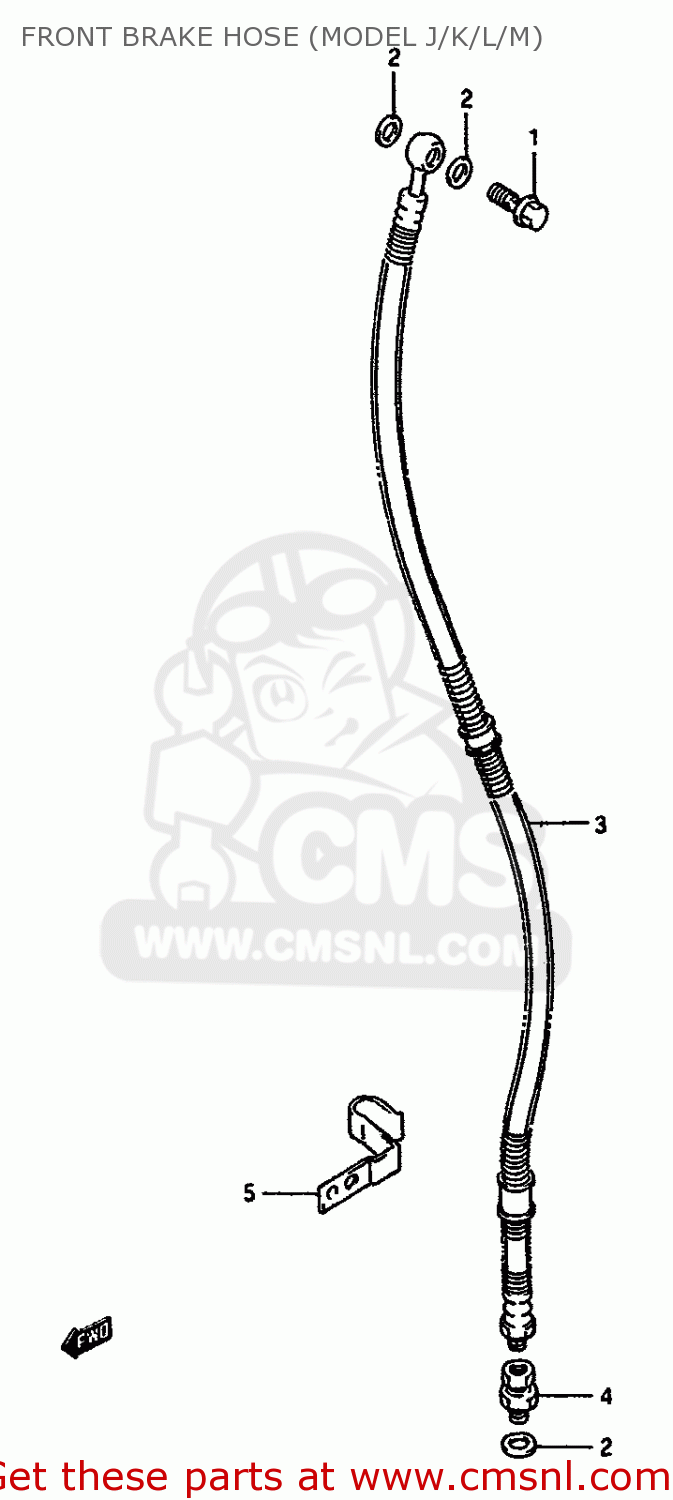

Front brake hose (model j/k/l/m) diagram VS750GLF 1991 (M) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (MODEL J/K/L/M) VS750GLF 1991 (M) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (MODEL J/K/L/M) VS750GLF 1991 (M) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (MODEL J/K/L/M) VS750GLF 1991 (M) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
0936010017
ref: 1
BOLT UNION
0936010017
€ 6.50
2
0916110009
ref: 2
WASHER(10X15X1.5)
0916110009
€ 2.00
3-1
5948038A52
ref: 3-1
VS750GLFJ/GLFK/GLFL/
HOSE COMP,FRONT BRAKE
€ 100.00
3-2
5948038A63
ref: 3-2
VS750GLPJ/GLPK/GLPL/
HOSE,FR BRAKE
5948038A63
€ 221.00
4
5929043500
ref: 4
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
5
5926838A20
ref: 5
CLAMP,FRONT BRAKE HOSE
5926838A20
€ 7.50
4
5929043500
ref: 4
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
5
5954138A00
ref: 5
GUIDE,BRAKE HOSE NO.1
5954138A00
€ 4.50
6
0154706107
ref: 6
BOLT
0154706107
€ 1.50
7
5926838A01
ref: 7
GUIDE,BRAKE HOSE NO.2
5926838A01
€ 6.50
