WIRING HARNESS
VS750GLF 1991 (M) GENERAL EXPORT (E01)

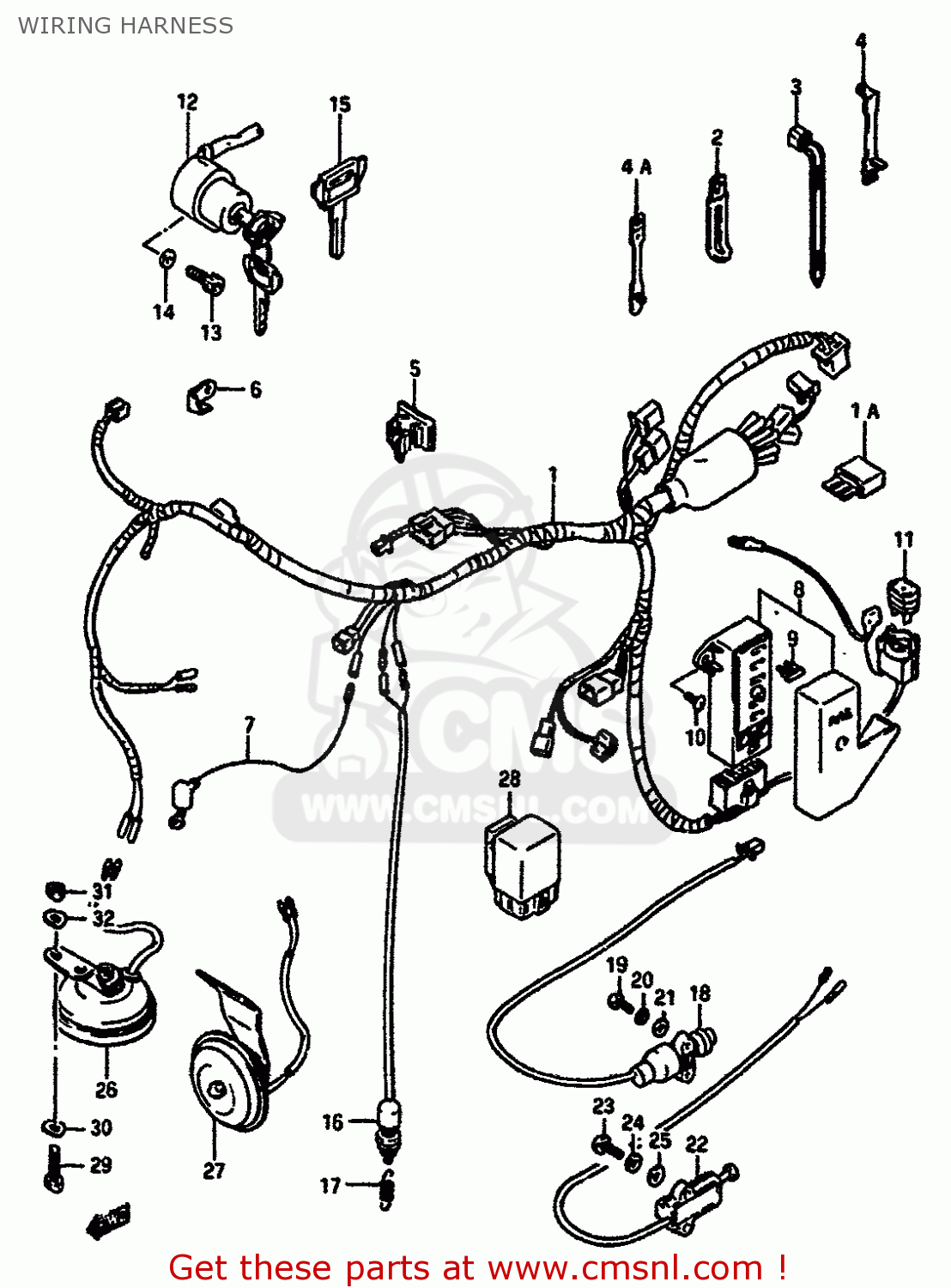

Wiring harness diagram VS750GLF 1991 (M) GENERAL EXPORT (E01)
WIRING HARNESS VS750GLF 1991 (M) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661038A20
ref: 1-1
MODEL F
HARNESS,WIRING
€ 0.00
1-2
3661038A41
ref: 1-2
MODEL G
HARNESS,WIRING
€ 152.50
1-3
3661039A10
ref: 1-3
MODEL H
HARNESS,WIRING
€ 180.00
1-4
3661039A50
ref: 1-4
MODEL J/K/L/M
HARNESS,WIRING
€ 253.00
1A
3661138A00
ref: 1A
MODEL J/K/L/M
DIODE(STANLEY DE8804)
€ 13.00
2-1
0940405401
ref: 2-1
CLAMP
€ 2.50
2-2
0940406401
ref: 2-2
MODEL H/J/K/L/M
CLAMP L:35
€ 2.50
2-3
0940406402
ref: 2-3
CLAMP
€ 2.50
2-4
0940406403
ref: 2-4
CLAMP
€ 2.50
2-5
0940406415
ref: 2-5
CLAMP
€ 3.00
3-1
0940714403
ref: 3-1
CLAMP(L:125)
€ 2.50
3-2
0940718402
ref: 3-2
CLAMP(L:165)
€ 2.50
4
0940707401
ref: 4
MODEL F/G
CLAMP(L:55)
€ 1.50
4A
0940705403
ref: 4A
MODEL H/J/K/L/M
CLAMP,L:88
€ 1.50
5
0940800074
ref: 5
MODEL F/G/H
CLAMP
€ 5.50
6
3668738A00
ref: 6
PLATE,COUPLER HOLDER
€ 2.00
7
3685138401
ref: 7
WIRE,WATER TEMPERATURE GAUGE
€ 4.50
8
3674038A00
ref: 8
BOX ASSY,FUSE
€ 75.00
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10-1
0214206206
ref: 10-1
MODEL F/G/H
SCREW
€ 2.00
10-2
0214206166
ref: 10-2
MODEL J/K/L/M
SCREW
€ 2.50
11
3675005A00
ref: 11
BREAKER ASSY,CIRCUT
€ 36.50
12-1
3711038A01
ref: 12-1
MODEL F/G/H/J/K
SWITCH ASSEMBLY,IGNITION
€ 74.50
12-2
3711038A02
ref: 12-2
MODEL L/M
SWITCH ASSEMBLY,IGNITION
€ 74.50
13-1
0711005128
ref: 13-1
BOLT 5X12
€ 2.00
13-2
0711005167
ref: 13-2
BOLT
€ 2.50
14
0832121057
ref: 14
LOCK WASHER
€ 2.00
15-1
3714603A00
ref: 15-1
OPT
KEY,BLANK(TYPE:C)
€ 6.00
15-2
3714603A10
ref: 15-2
OPT
KEY,BLANK(TYPE:D)
€ 6.00
15-3
3714603A20
ref: 15-3
OPT
KEY,BLANK(TYPE:E)
€ 6.00
15-4
3714603A30
ref: 15-4
OPT
KEY,BLANK(TYPE:F)
€ 6.00
16
3774004A10
ref: 16
SWITCH ASSY,STOP LAMP
€ 22.00
17
0944306046
ref: 17
SPRING
€ 3.50
18
3784038A01
ref: 18
MODEL F E2,MODEL G E
SWITCH ASSEMBLY,SIDE STAND
€ 83.50
19
0211205165
ref: 19
MODEL F/G
SCREW
€ 2.00
20
0832121055
ref: 20
MODEL F/G
WASHER,LOCK
€ 3.00
21
0832221055
ref: 21
MODEL F/G
WASHER,5MM
€ 2.50
22-1
3784039A00
ref: 22-1
MODEL H E4,E17,E21,E
SWITCH ASSY,SIDE STAND
€ 54.50
22-2
3784039A20
ref: 22-2
MODEL J/K
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
22-3
3784039A21
ref: 22-3
MODEL L/M
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
23-1
0211206164
ref: 23-1
MODEL H
SCREW
€ 2.00
23-2
0211206205
ref: 23-2
MODEL J/K/L/M
SCREW
€ 2.00
24
0832121064
ref: 24
MODEL H/J/K/L/M
WASHER,LOCK
€ 2.00
25
0832221064
ref: 25
MODEL H/J/K/L/M
WASHER
€ 2.00
26-1
3850038A20
ref: 26-1
MODEL F E2,TO 38500-
HORN ASSEMBLY
€ 87.50
26-2
3850038A30
ref: 26-2
E1,E75,MODEL G/H E2,
HORN ASSY
€ 87.50
27
3850038A10
ref: 27
E4,E15,E16,E17,E18,E
HORN ASSY
€ 68.50
28
3874039A00
ref: 28
MODEL J/K/L/M
RELAY ASSEMBLY
€ 37.50
29
0110706307
ref: 29
BOLT 6X30
€ 2.50
30
0832221067
ref: 30
WASHER
€ 2.00
31
0831011067
ref: 31
NUT 6MM
€ 2.50
32
0832221067
ref: 32
WASHER
€ 2.00
