FRONT MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM)

VS750GLF 1991 (M) GENERAL EXPORT (E01)

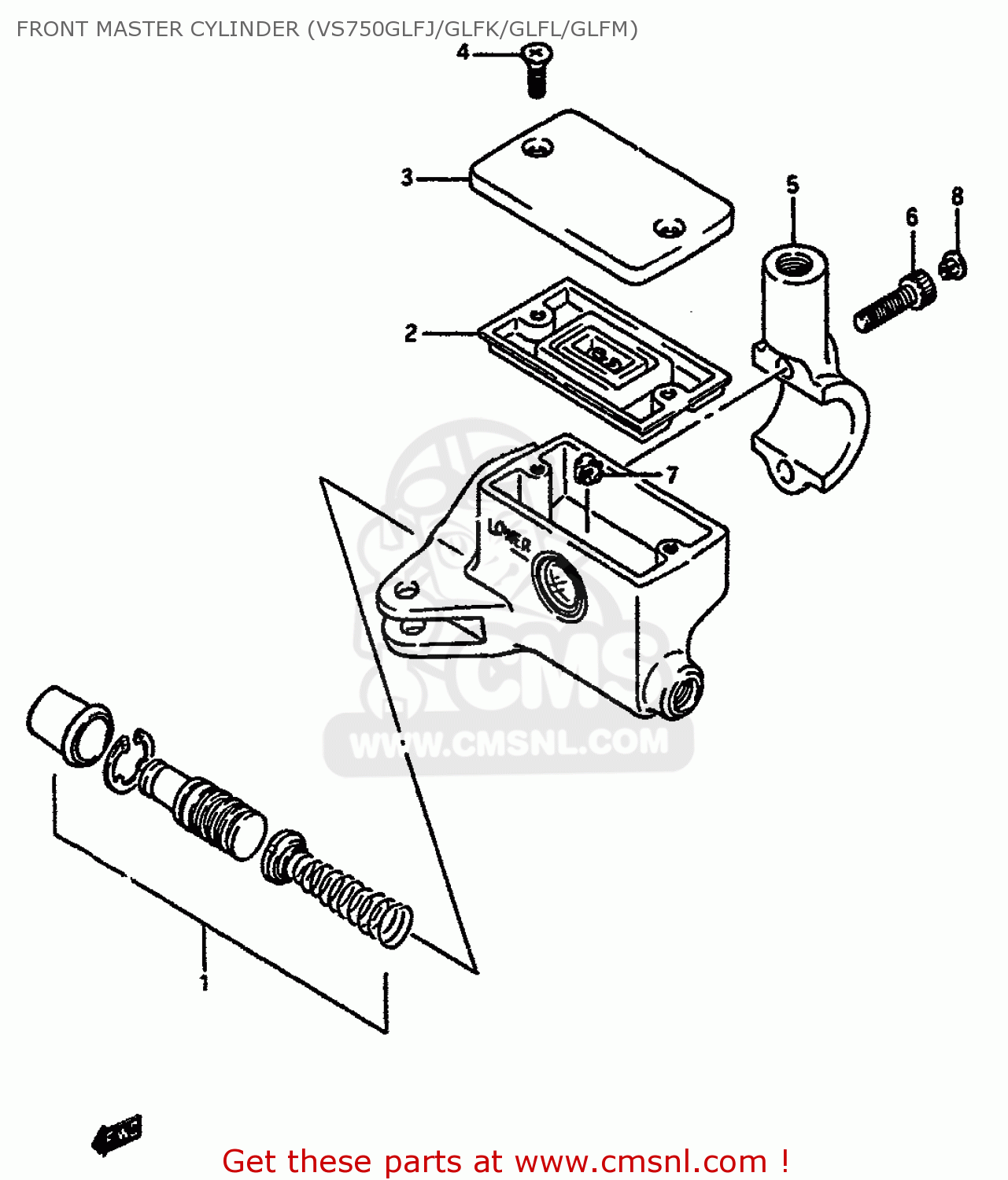

Front master cylinder (vs750glfj/glfk/glfl/glfm) diagram VS750GLF 1991 (M) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1991 (M) GENERAL EXPORT (E01)
FRONT MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1991 (M) GENERAL EXPORT (E01)
FRONT MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1991 (M) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5960038A40
ref: 0
VS750GLFJ
CYLINDER ASSY,FRONT MASTER (FLAT TYPE)
€ 211.00
0
5960038A90
ref: 0
VS750GLFK/GLFL/GLFM
CYLINDER ASSY,FR MASTER
5960038A90
€ 365.00
1
5960036820
ref: 1
CUP SET,MASTER CYLINDER
5960036820
€ 37.50
2
5966749460
ref: 2
5966749460
3-1
5966938A30
ref: 3-1
VS750GLFJ
CAP
5966938A30
€ 45.50
3-2
5966924B00
ref: 3-2
VS750GLFK/GLFL/GLFM
CAP
5966924B00
€ 59.00
4
5969138A00
ref: 4
SCREW,RESERVOIR CAP
5969138A00
€ 2.00
5
5967138A00
ref: 5
HOLDER
5967138A00
€ 37.50
6
0711006208
ref: 6
BOLT ,6X20
0711006208
€ 3.50
7
5966448B00
ref: 7
VS750GLFK/GLFL/GLFM
PROTECTOR
5966448B00
€ 8.00
8
0925005008
ref: 8
CAP(OD:10)
0925005008
€ 5.00
