REAR COMBINATION LAMP (EXCEPT:MODEL F,MODEL K/L/M E1,E24)

VS750GLF 1991 (M) GENERAL EXPORT (E01)

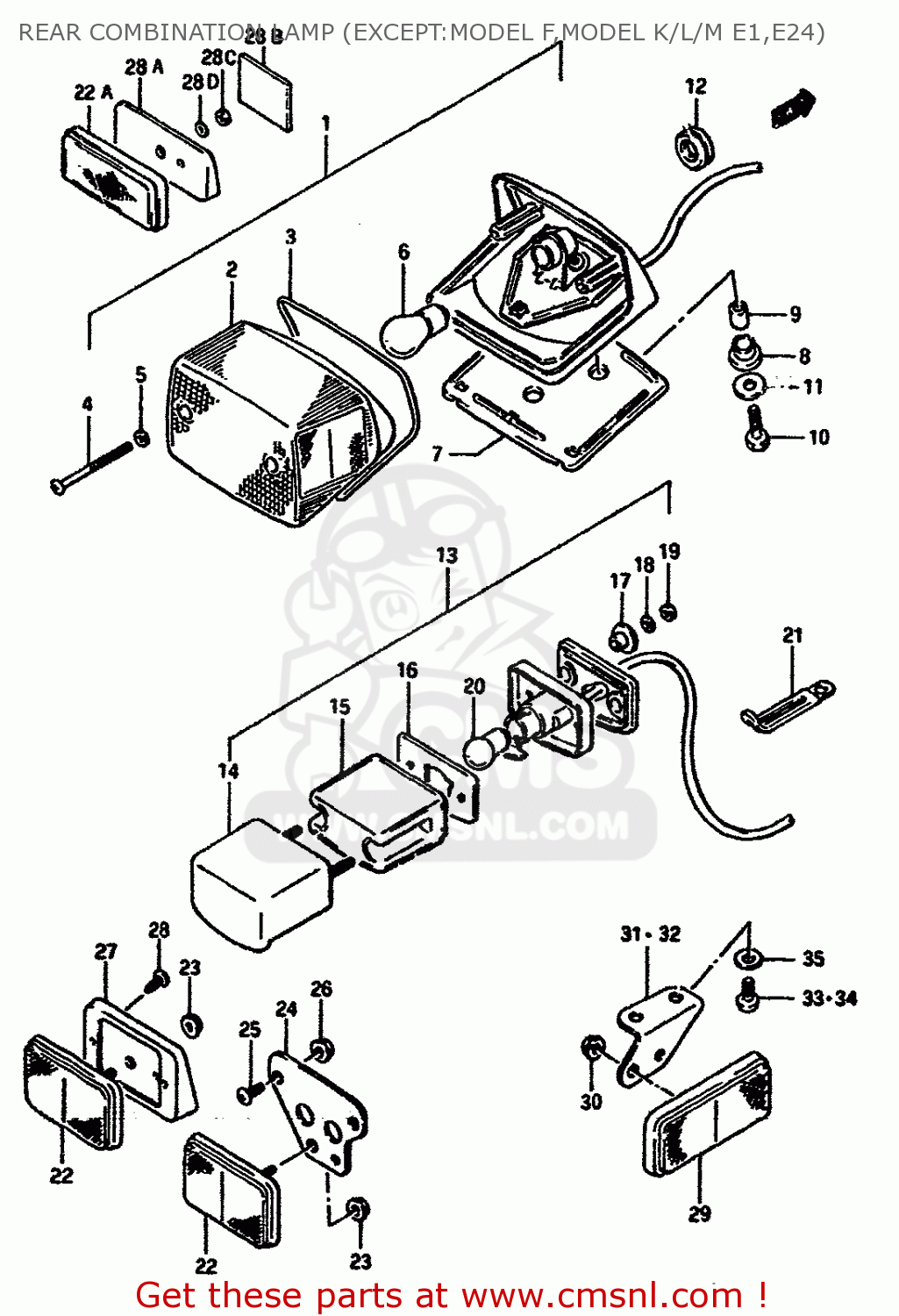

Rear combination lamp (except:model f,model k/l/m e1,e24) diagram VS750GLF 1991 (M) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (EXCEPT:MODEL F,MODEL K/L/M E1,E24) VS750GLF 1991 (M) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (EXCEPT:MODEL F,MODEL K/L/M E1,E24) VS750GLF 1991 (M) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (EXCEPT:MODEL F,MODEL K/L/M E1,E24) VS750GLF 1991 (M) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571038A20
ref: 1
LAMP ASSY,RR COMBINATION
3571038A20
€ 303.00
2
3571238A20
ref: 2
LENS
3571238A20
€ 81.00
3
3571338A00
ref: 3
GASKET (NAS)
3571338A00
€ 9.50
4
3572344130
ref: 4
SCREW
3572344130
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112083
ref: 6
BULB(12V21/5W)
0947112083
€ 6.00
7
3576538A00
ref: 7
CUSHION
3576538A00
€ 13.50
8
3576426470
ref: 8
CUSHION
3576426470
€ 2.50
9
3576637190
ref: 9
SPACER
3576637190
€ 2.00
10
0110706256
ref: 10
BOLT
€ 2.50
11
0916006020
ref: 11
WASHER
0916006020
€ 2.00
12
0930809013
ref: 12
GROMMET
€ 2.00
13
3591038A21
ref: 13
LAMP ASSY,LICENSE
3591038A21
€ 240.00
14
3591738A20
ref: 14
COVER,LICENSE LAMP
3591738A20
€ 121.50
15
3591238A20
ref: 15
LENS
3591238A20
€ 13.00
16
3591338A30
ref: 16
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
17
3576638A30
ref: 17
SPACER
3576638A30
€ 2.00
18
0832121047
ref: 18
WASHER,LOCK 4M
0832121047
€ 2.00
19
0831011047
ref: 19
NUT
0831011047
€ 2.00
20-1
0947112059
ref: 20-1
MODEL G/H/J
BULB
€ 4.00
20-2
0947112140
ref: 20-2
MODEL K/L/M
BULB(12V5W,BF150-40160A)
€ 4.00
21
0940406401
ref: 21
CLAMP L:35
0940406401
€ 2.50
22
3597001A00
ref: 22
MODEL F/G/H,MODEL K/
REFLEX REFLECTOR ASSY,RR
3597001A00
€ 85.00
22A
3597038B00
ref: 22A
MODEL J/K/L/M
REFLEX REFLECTOR ASSY,RR
3597038B00
€ 27.00
23
0831616056
ref: 23
MODEL F/G/H,MODEL K/
NUT
€ 2.50
24
3597438A01
ref: 24
MODEL G
BRACKET
€ 0.00
25
0214205104
ref: 25
MODEL G
SCREW 5X10
0214205104
€ 2.50
26
0831616056
ref: 26
MODEL G
NUT
€ 2.50
27
3597738A00
ref: 27
MODEL H,MODEL K/L/M
SPACER
€ 0.00
28
0354104126
ref: 28
MODEL H,MODEL K/L/M
SCREW
0354104126
€ 1.50
28A
3597738B00
ref: 28A
MODEL J/K/L/M
SPACER
€ 3.00
28B
3692006400
ref: 28B
MODEL J/K/L/M
COVER,HARNESS
€ 3.00
28C
0831022056
ref: 28C
MODEL J/K/L/M
NUT 5MM
0831022056
€ 2.50
28D
0832221056
ref: 28D
MODEL J/K/L/M
WASHER
€ 2.50
29
3595043431
ref: 29
E39,E77
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
30
0831616056
ref: 30
E39,E77
NUT
€ 2.50
31
3597438A20
ref: 31
E39,E77
BRACKET,RR SIDE RR,L
€ 10.50
32
3597538A20
ref: 32
E39,E77
BRACKET,RR SIDE RR,R
€ 10.50
33
0211206087
ref: 33
E39,E77
SCREW
0211206087
€ 2.00
34
0211206128
ref: 34
E39,E77
SCREW 6X12
0211206128
€ 2.00
35
0916006031
ref: 35
E39,E77
WASHER (6.3X14X1.6)
€ 2.00
