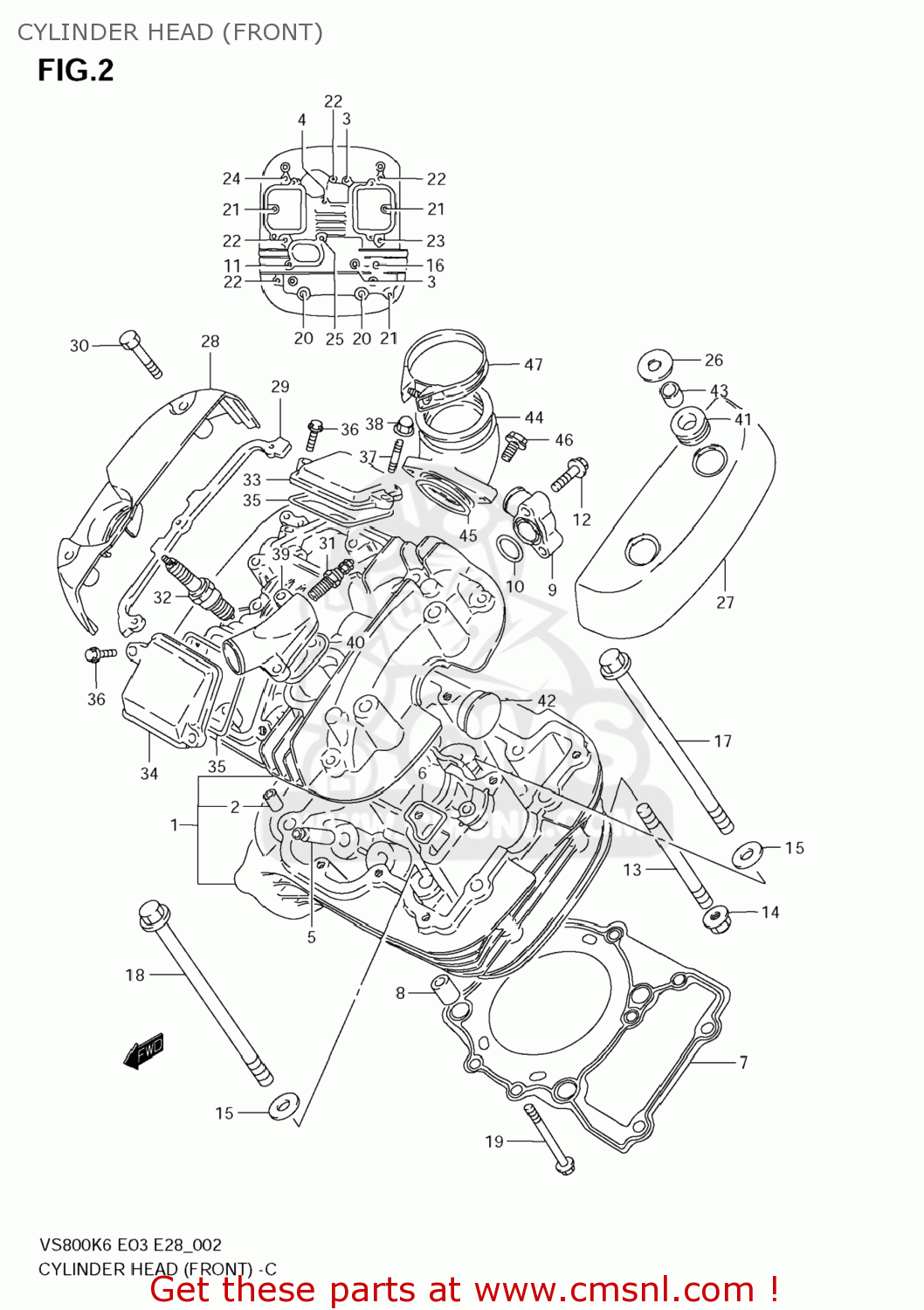

CYLINDER HEAD (FRONT)

ref

part #

description

quantity

1-1

1110139A50
ref: 1-1

HEAD ASSY,CYLINDER FR

€ 0.00

1-2

1110139A60
ref: 1-2

HEAD ASSY,CYLINDER FR

€ 615.00

2

0920611004
ref: 2

PIN(8.4X11X14)

€ 6.00

3

0910306101
ref: 3

BOLT(6X50)

€ 2.00

4

0910306102
ref: 4

BOLT(6X55)

€ 2.50

5

1111538A71
ref: 5
11115-41F70

GUIDE,VALVE

€ 18.50

6

1112338A00
ref: 6

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

7

1114145C00
ref: 7

GASKET,CYLINDER HEAD FR (NAS)

€ 51.50

8

0421113189
ref: 8

PIN

€ 2.50

9

1116945C10
ref: 9

UNION,CYLINDER HEAD WATER

€ 28.50

10

0928018004
ref: 10

O RING(D:2.4,ID:17.8)

€ 5.50

11

015500620B
ref: 11

BOLT

€ 2.50

12

015470625B
ref: 12

BOLT

€ 2.50

13

014210840A
ref: 13

BOLT,STUD

€ 2.50

14

083161008B
ref: 14

NUT

€ 3.00

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.50

16

0910308040
ref: 16

BOLT(8X140)

€ 4.00

17

0910310133
ref: 17

BOLT(10X155)

€ 7.50

18

0910310134
ref: 18

BOLT(10X165)

€ 7.50

19

015500640B
ref: 19

BOLT

€ 2.00

20

0910308180
ref: 20

BOLT(8X245)

€ 13.00

21

015500625B
ref: 21

BOLT

€ 2.50

22

015500630B
ref: 22

BOLT

€ 2.00

23

071200630B
ref: 23

BOLT

€ 3.00

24

015500640B
ref: 24

BOLT

€ 2.00

25

0910306102
ref: 25

BOLT(6X55)

€ 2.50

26

0916008130
ref: 26

WASHER(8.5X24X1.6)

€ 2.00

27

1117138A02
ref: 27

CAP,CYLINDER HEAD COVER FR,L

€ 72.50

28

1117238A03
ref: 28

CAP,CYLINDER HEAD COVER FR,R

€ 98.50

29

1127238A00
ref: 29

CUSHION,FR,R CAP

€ 10.50

30

0124406407
ref: 30

BOLT

€ 3.00

31

3485021E00
ref: 31

GAUGE ASSY,WATER TEMP

€ 80.00

32-1

0948200334
ref: 32-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

32-2

0948200335
ref: 32-2

PLUG,SPARK(X24EPR-U9)

€ 4.00

32-3

0948200354
ref: 32-3

PLUG,SPARK(DPR7EA-9)

€ 4.00

32-4

0948200355
ref: 32-4
09482-00354

SPARK PLUG X22E

€ 4.00

32-5

0948200330
ref: 32-5

PLUG,SPARK(DPR9EA-9)

€ 4.00

32-6

0948200331
ref: 32-6

PLUG,SPARK(X27EPR-U9)

€ 4.00

33

1117538A11
ref: 33

CAP,INSPECTION INTAKE

€ 14.50

34

1117638A11
ref: 34

CAP,INSPECTION EXHAUST

€ 14.50

35

1117738A00
ref: 35

GASKET,INSPECTION CAP (NAS)

€ 5.00

36

015470620B
ref: 36

BOLT

€ 2.50

37

0910806102
ref: 37

BOLT,STUD

€ 3.00

38

083132006B
ref: 38

NUT

€ 2.00

39

1118138A02
ref: 39

UNION,WATER OUTLET

€ 34.50

40

1118238A00
ref: 40

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

41

0932013015
ref: 41

CUSHION

€ 3.00

42

0924130004
ref: 42

PLUG(OD:30)

€ 6.50

43

0930108007
ref: 43

BUSH

€ 4.00

44

1310138E00
ref: 44

PIPE ASSY,INTAKE FR

€ 89.00

45

0928040010
ref: 45

O RING(D:2.4,ID:39.7)

€ 3.50

46

021220620B
ref: 46

SCREW

€ 2.00

47

0940252501
ref: 47

CLAMP

€ 9.00
