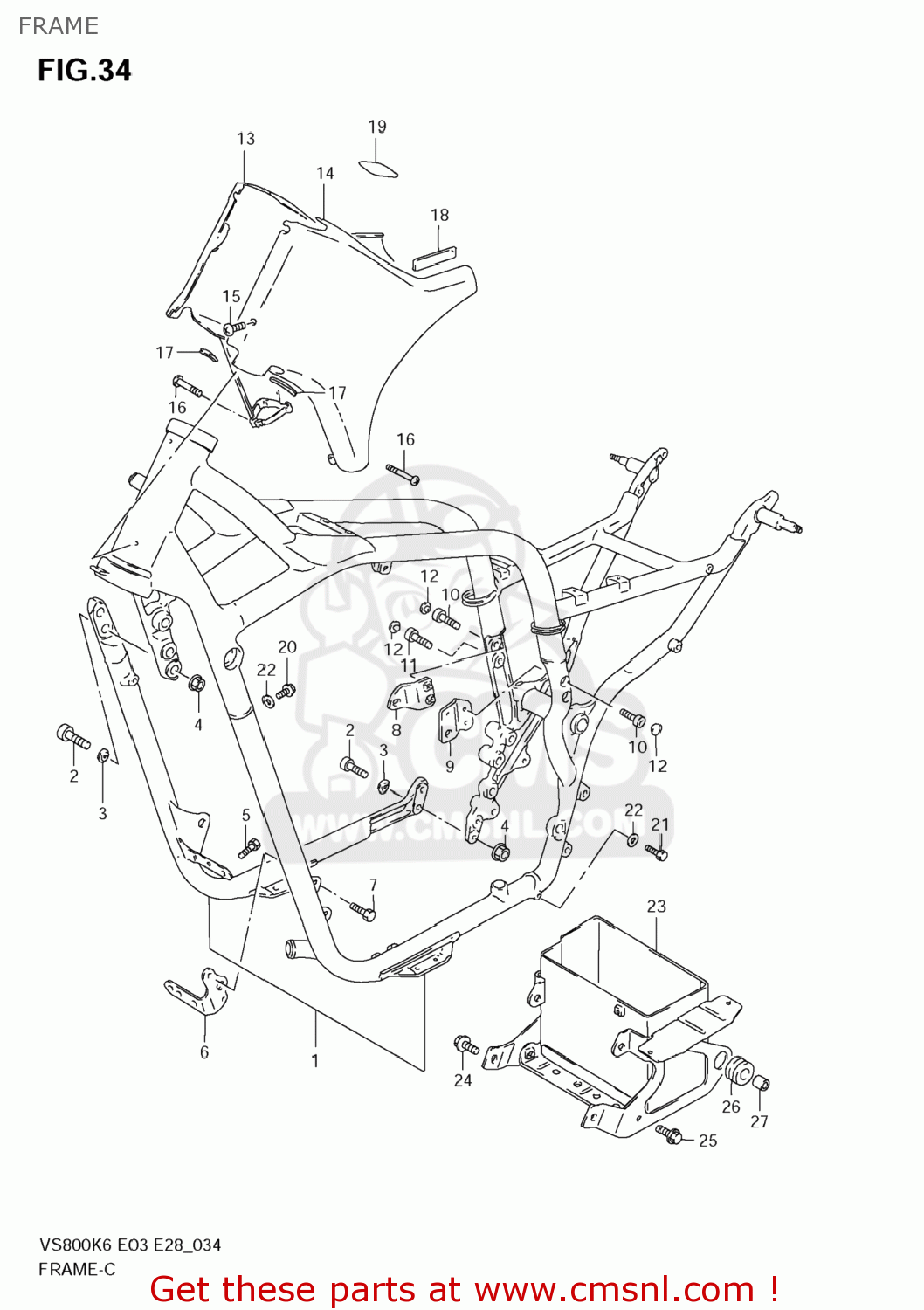

FRAME

ref

part #

description

quantity

1-1

4110139813YAY
ref: 1-1

FRAME SET(BLACK)

€ 0.00

1-2

4110139813YDV
ref: 1-2

FRAME SET(SILVER)

€ 0.00

1-3

4110139813YHL
ref: 1-3

FRAME(RED)

€ 0.00

1-4

4110139813YC3
ref: 1-4

FRAME(WHITE)

€ 0.00

1-5

4110139813YMD
ref: 1-5

FRAME SET(SILVER)

€ 1,796.50

1-6

4110139813YRB
ref: 1-6

FRAME SET(BLUE)

€ 1,796.50

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410010
ref: 3

WASHER

€ 6.50

4

083193110B
ref: 4

NUT

€ 3.00

5

015510820B
ref: 5

BOLT

€ 2.50

6

4192038A00019
ref: 6

PLATE,ENGINE MOUNT NO.1,L

€ 11.00

7

071300816B
ref: 7

BOLT

€ 2.50

8

4195038A11019
ref: 8

PLATE,ENGINE MOUNT NO.3,R

€ 32.50

9

4196038A10019
ref: 9

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

10

0910608070
ref: 10

BOLT(8X30)

€ 5.50

11

071300830B
ref: 11

BOLT

€ 3.00

12

0925006004
ref: 12

CAP(OD:14.5)

€ 1.50

13-1

4735038A01YAY
ref: 13-1

COVER,FRAME HEAD,R(BLACK)

€ 0.00

13-2

4735038A01YDV
ref: 13-2

COVER,FRAME HEAD,R(SILVER)

€ 0.00

13-3

4735038A01YHL
ref: 13-3

COVER,FRAME HEAD,R(RED)

€ 0.00

13-4

4735038A01YC3
ref: 13-4

COVER,FRAME HEAD,R(WHITE)

€ 0.00

13-5

4735038A01YMD
ref: 13-5

COVER,FRAME HEAD,R(SILVER)

€ 145.00

13-6

4735038A01YRB
ref: 13-6

COVER,FRAME HEAD,R(BLUE)

€ 145.00

14-1

4736038A01YAY
ref: 14-1

COVER,FRAME HEAD,L(BLACK)

€ 0.00

14-2

4736038A01YDV
ref: 14-2

COVER,FRAME HEAD,L(SILVER)

€ 0.00

14-3

4736038A01YHL
ref: 14-3

COVER,FRAME HEAD,L(RED)

€ 0.00

14-4

4736038A01YC3
ref: 14-4

COVER,FRAME HEAD,L(WHITE)

€ 0.00

14-5

4736038A01YMD
ref: 14-5

COVER,FRAME HEAD,L(SILVER)

€ 145.00

14-6

4736038A01YRB
ref: 14-6

COVER,FRAME HEAD,L(BLUE)

€ 145.00

15

0912506117
ref: 15

SCREW(6X10)

€ 2.00

16

021120425B
ref: 16

SCREW

€ 2.00

17

6824104X50300
ref: 17

MOLDING

€ 6.00

18

3365238A10
ref: 18
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

19

4735838A00
ref: 19

TAPE,FRAME HEAD COVER

€ 7.00

20

1756850F00
ref: 20

UNION BOLT,AIR VENT

€ 3.50

21

015500610B
ref: 21

BOLT

€ 2.50

22

0916806026
ref: 22

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

23

4154038A12
ref: 23

HOLDER,BATTERY

€ 103.50

24

015511016B
ref: 24

BOLT

€ 0.00

25

015500616B
ref: 25

BOLT

€ 2.50

26

0932012031
ref: 26

CUSHION

€ 3.00

27

0930108009
ref: 27

BUSH

€ 6.50
