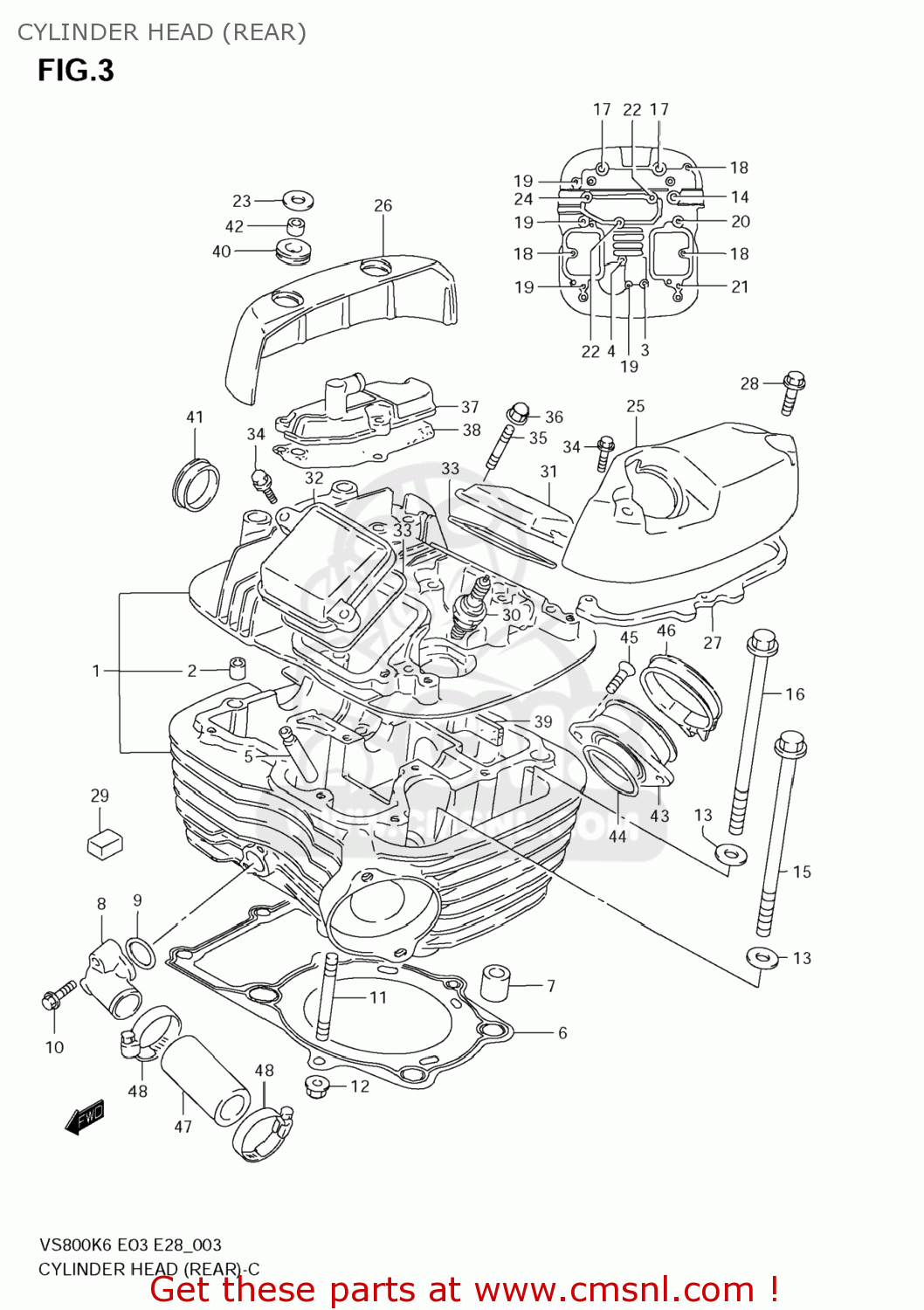

CYLINDER HEAD (REAR)

ref

part #

description

quantity

1-1

1110339A50
ref: 1-1

HEAD ASSY,CYLINDER RR

€ 0.00

1-2

1110339A60
ref: 1-2

HEAD ASSY,CYLINDER RR

€ 615.00

2

0920611004
ref: 2

PIN(8.4X11X14)

€ 6.00

3

0910306101
ref: 3

BOLT(6X50)

€ 2.00

4

0910306102
ref: 4

BOLT(6X55)

€ 2.50

5

1111538A71
ref: 5
11115-41F70

GUIDE,VALVE

€ 18.50

6

1114245C00
ref: 6

GASKET,CYLINDER HEAD RR (NAS)

€ 54.00

7

0421113189
ref: 7

PIN

€ 2.50

8

1116945C10
ref: 8

UNION,CYLINDER HEAD WATER

€ 28.50

9

0928018004
ref: 9

O RING(D:2.4,ID:17.8)

€ 5.50

10

015470625B
ref: 10

BOLT

€ 2.50

11

014210840A
ref: 11

BOLT,STUD

€ 2.50

12

083161008B
ref: 12

NUT

€ 3.00

13

0916010039
ref: 13

WASHER(10.5X22X2.3)

€ 2.50

14

0910308040
ref: 14

BOLT(8X140)

€ 4.00

15

0910310133
ref: 15

BOLT(10X155)

€ 7.50

16

0910310134
ref: 16

BOLT(10X165)

€ 7.50

17

0910308180
ref: 17

BOLT(8X245)

€ 13.00

18

015500625B
ref: 18

BOLT

€ 2.50

19

015500630B
ref: 19

BOLT

€ 2.00

20

071200630B
ref: 20

BOLT

€ 3.00

21

015500640B
ref: 21

BOLT

€ 2.00

22

0910306102
ref: 22

BOLT(6X55)

€ 2.50

23

0916008130
ref: 23

WASHER(8.5X24X1.6)

€ 2.00

24

015500620B
ref: 24

BOLT

€ 2.50

25

1117338A03
ref: 25

CAP,CYLINDER HEAD COVER RR,L

€ 68.50

26

1117438A02
ref: 26

CAP,CYLINDER HEAD COVER RR,R

€ 75.00

27

1127338A01
ref: 27

CUSHION,RR,L CAP

€ 10.50

28

0124406357
ref: 28

BOLT

€ 3.00

29

1115238A00
ref: 29

PAD

€ 3.50

30-1

0948200334
ref: 30-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

30-2

0948200335
ref: 30-2

PLUG,SPARK(X24EPR-U9)

€ 4.00

30-3

0948200354
ref: 30-3

PLUG,SPARK(DPR7EA-9)

€ 4.00

30-4

0948200355
ref: 30-4
09482-00354

SPARK PLUG X22E

€ 4.00

30-5

0948200330
ref: 30-5

PLUG,SPARK(DPR9EA-9)

€ 4.00

30-6

0948200331
ref: 30-6

PLUG,SPARK(X27EPR-U9)

€ 4.00

31

1117538A11
ref: 31

CAP,INSPECTION INTAKE

€ 14.50

32

1117638A11
ref: 32

CAP,INSPECTION EXHAUST

€ 14.50

33

1117738A00
ref: 33

GASKET,INSPECTION CAP (NAS)

€ 5.00

34

015470620B
ref: 34

BOLT

€ 2.50

35

0910806102
ref: 35

BOLT,STUD

€ 3.00

36

083132006B
ref: 36

NUT

€ 2.00

37

1118638A02
ref: 37

COVER,BREATHER

€ 13.50

38

1118738A02H17
ref: 38

GASKET,BREATHER COVER (NAS)

€ 12.00

39

1117938A00
ref: 39

PLATE,HEAD COVER RR

€ 7.50

40

0932013015
ref: 40

CUSHION

€ 3.00

41

0924130004
ref: 41

PLUG(OD:30)

€ 6.50

42

0930108007
ref: 42

BUSH

€ 4.00

43

1310245C00
ref: 43

PIPE ASSY,INTAKE RR

€ 40.50

44

0928040010
ref: 44

O RING(D:2.4,ID:39.7)

€ 3.50

45

015500616B
ref: 45

BOLT

€ 2.50

46

0940252501
ref: 46

CLAMP

€ 9.00

47

1785438A00
ref: 47

HOSE,CYLINDER HEAD JOINT

€ 8.50

48

0940228511
ref: 48

CLAMP

€ 8.50
