CARBURETOR (FRONT:E18)

VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

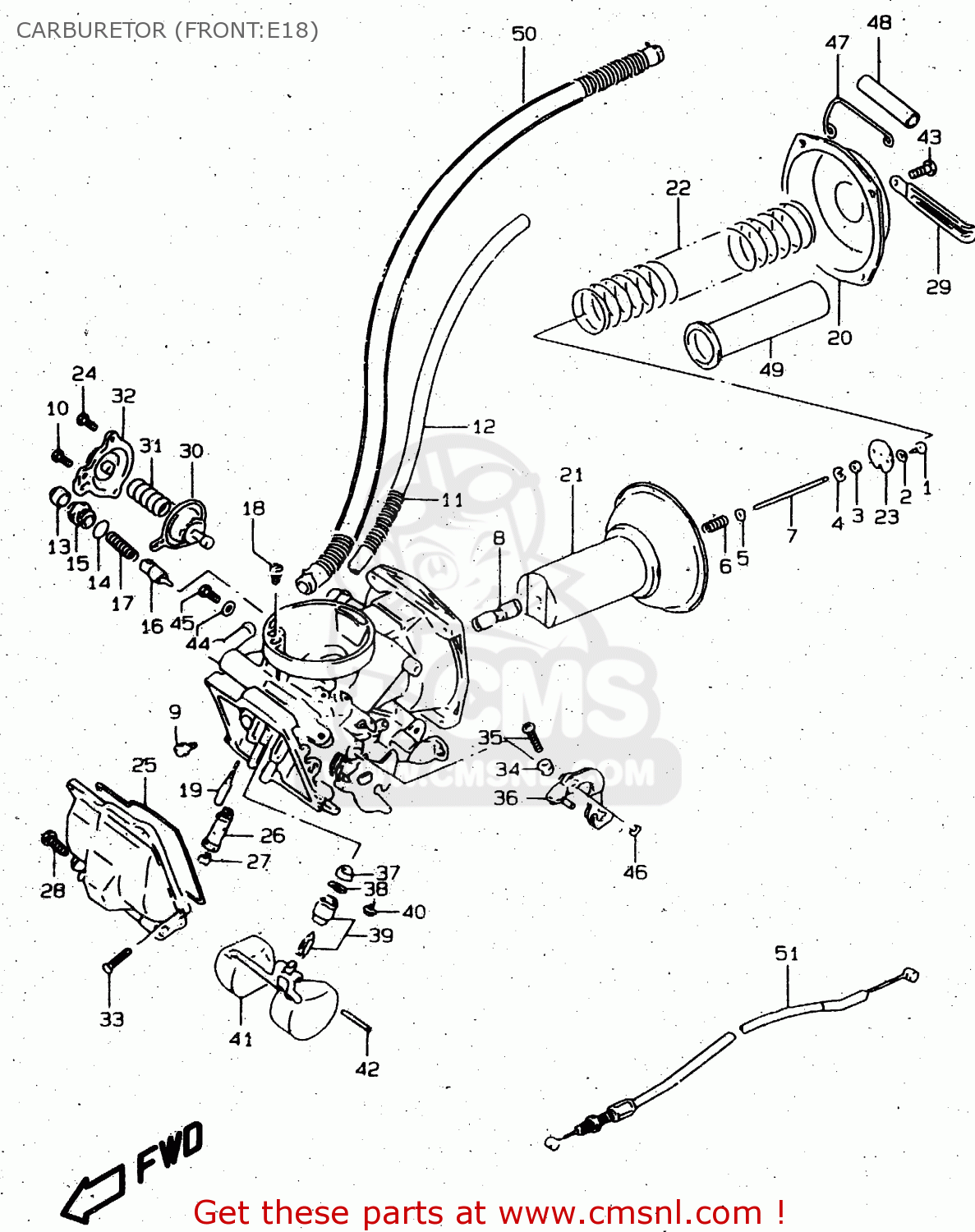

Carburetor (front:e18) diagram VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CARBURETOR (FRONT:E18) VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
CARBURETOR (FRONT:E18) VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
CARBURETOR (FRONT:E18) VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
0
1321038E20
ref: 0
CARBURETOR ASSY, FRONT
€ 648.00
1
0211203063
ref: 1
SCREW
0211203063
€ 2.00
2
0832121033
ref: 2
WASHER,LOCK
0832121033
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7
1338345C50
ref: 7
NEEDLE, JET (5D48-3)
€ 0.00
8
0949400752
ref: 8
JET,NEEDLE(P-1)
€ 0.00
9
1360538B00
ref: 9
SCREW
1360538B00
€ 7.50
10
0211204103
ref: 10
SCREW
0211204103
€ 1.00
11
1368938A00
ref: 11
SPRING
1368938A00
€ 8.50
12
0935250823600
ref: 12
L:600->185
HOSE(5X8.2X600)
0935250823600
€ 13.00
13
1368104010
ref: 13
CAP
1368104010
€ 3.00
14
1327847090
ref: 14
O RING
1327847090
€ 2.00
15
1341838A00
ref: 15
HOLDER,GUIDE
1341838A00
€ 11.50
16
1341101400
ref: 16
PLUNGER,STARTER
1341101400
€ 11.50
17
1341708210
ref: 17
SPRING
1341708210
€ 4.50
18
0949265005
ref: 18
JET,AIR(65)
0949265005
€ 7.50
19
0949240021
ref: 19
JET,PILOT(40)
0949240021
€ 17.50
20
1350245C10
ref: 20
COVER
1350245C10
€ 34.00
21
1350045C00
ref: 21
DIAPHRAGM ASSY
€ 211.00
22
1350338B00
ref: 22
SPRING,DIAPHRAGM
1350338B00
€ 12.00
23
1338937400
ref: 23
PLATE
1338937400
€ 5.50
24
0212204103
ref: 24
SCREW,UPPER
€ 2.50
25
1325138A00
ref: 25
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
26
1338505A11
ref: 26
HOLDER,MAIN JET
1338505A11
€ 14.00
27
0949197004
ref: 27
JET,MAIN(97.5)
0949197004
€ 18.50
28
1324713A00
ref: 28
SCREW,DRAIN
1324713A00
€ 5.50
29
0940406432
ref: 29
CLAMP(L:65)
0940406432
€ 2.50
30
1348005A10
ref: 30
DIAPHRAGM ASSY
1348005A10
€ 54.50
31
1348137300
ref: 31
SPRING
€ 0.00
32
1348438A00
ref: 32
COVER
1348438A00
€ 20.50
33
1360104148
ref: 33
SCREW
1360104148
€ 2.50
34
0831000047
ref: 34
NUT
0831000047
€ 2.00
35
0211204303
ref: 35
SCREW
0211204303
€ 2.00
36
1355438A00
ref: 36
LEVER,ASSY
€ 15.00
37
1337684110
ref: 37
FILTER
€ 6.50
38
1337444080
ref: 38
O-RING,NEEDLE VALVE
1337444080
€ 6.00
39
1337039A00
ref: 39
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
40
1360205A10
ref: 40
SCREW
1360205A10
€ 4.00
41
1325038B00
ref: 41
FLOAT
1325038B00
€ 32.00
42
1325420010
ref: 42
PIN,FLOAT
1325420010
€ 3.00
43
0211205127
ref: 43
SCREW
0211205127
€ 2.50
44
1352346110
ref: 44
GASKET,DRAIN PLUG (NAS)
1352346110
€ 3.00
45
0211205063
ref: 45
SCREW
€ 2.00
46
1341538300
ref: 46
E RING
1341538300
€ 2.00
47
1367138A00
ref: 47
CLIP
1367138A00
€ 10.50
48
0935260103600
ref: 48
L:600->50
HOSE(6X10X600)
0935260103600
€ 18.00
49
1348545C00
ref: 49
RING
1348545C00
€ 19.00
50
1368338A20
ref: 50
HOSE ASSEMBLY
1368338A20
€ 70.00
51
1364138A00
ref: 51
CABLE,IDLE SYNCRO
1364138A00
€ 16.50
