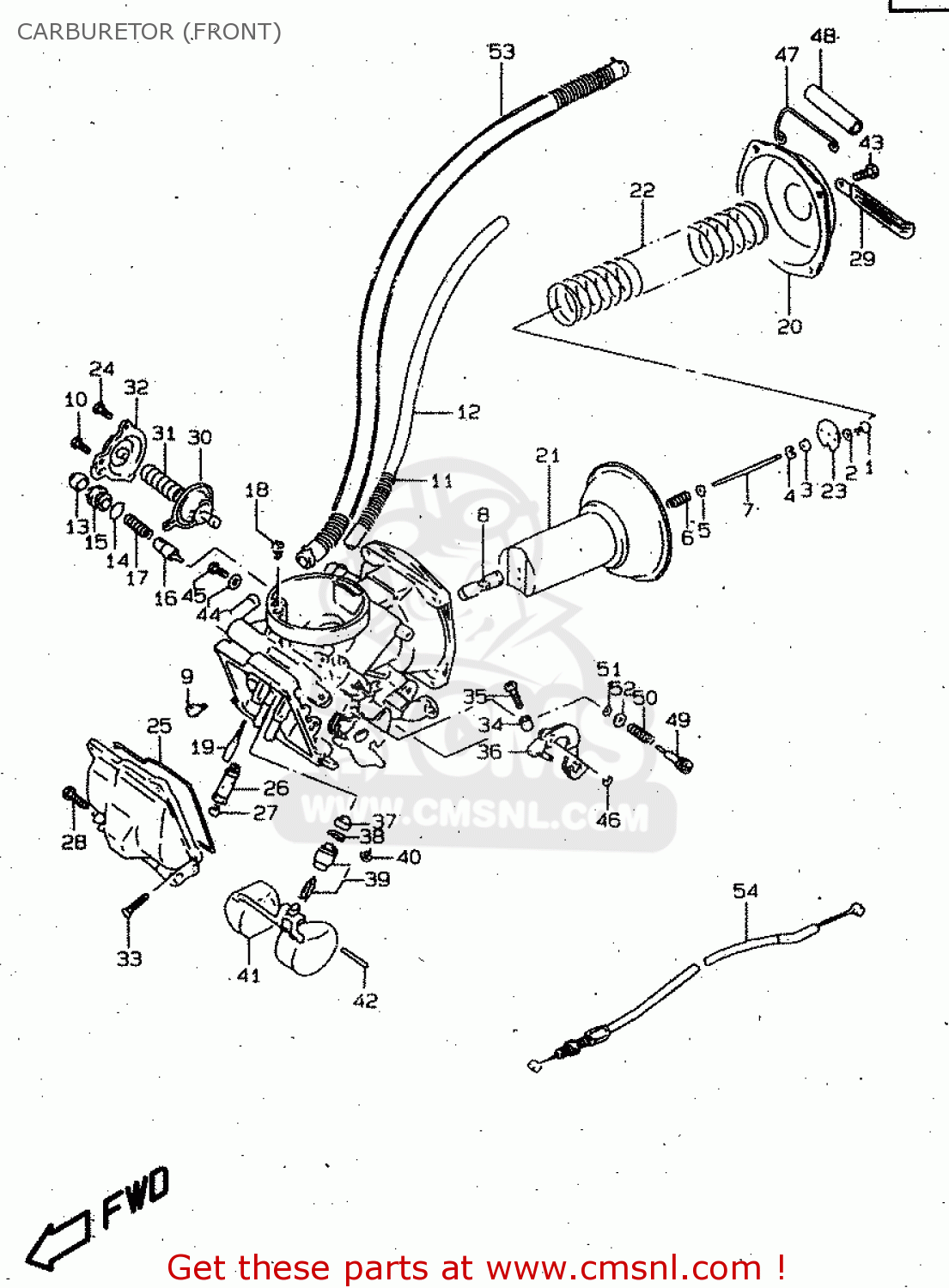

CARBURETOR (FRONT)

ref

part #

description

quantity

0

1321038E90
ref: 0

CARBURETOR ASSY, FRONT

€ 699.50

0

1321038EA0
ref: 0
E17, E22

CARBURETOR ASSY, FRONT

€ 0.00

0

1321038EB0
ref: 0
E37

CARBURETOR ASSY, FRONT

€ 0.00

1

0211203063
ref: 1

SCREW

€ 2.00

2

0832121033
ref: 2

WASHER,LOCK

€ 1.50

3

1338747010
ref: 3

RING

€ 7.50

4

1339410010
ref: 4

CLIP

€ 4.50

5

1338244030
ref: 5

WASHER

€ 3.50

6

1338844030
ref: 6

SPRING

€ 6.00

7

1338338E00
ref: 7

NEEDLE,JET

€ 17.50

8

0949400592
ref: 8

JET,NEEDLE(P-4)

€ 32.50

9

1360538B00
ref: 9

SCREW

€ 7.50

10

0211204107
ref: 10

SCREW

€ 2.00

11

1368938A00
ref: 11

SPRING

€ 8.50

12

0935250823600
ref: 12
L:600->185

HOSE(5X8.2X600)

€ 13.00

13

1368104010
ref: 13

CAP

€ 3.00

14

1327847090
ref: 14

O RING

€ 2.00

15

1341838A00
ref: 15

HOLDER,GUIDE

€ 11.50

16

1341101400
ref: 16

PLUNGER,STARTER

€ 11.50

17

1341708210
ref: 17

SPRING

€ 4.50

18

0949265005
ref: 18

JET,AIR(65)

€ 7.50

19

0949240021
ref: 19

JET,PILOT(40)

€ 17.50

20

1350245C10
ref: 20

COVER

€ 34.00

21

1350005A10
ref: 21

DIAPHRAGM,CARBURETOR

€ 178.00

21

1350045C00
ref: 21
E17, E22

DIAPHRAGM ASSY

€ 211.00

22

1350338B00
ref: 22

SPRING,DIAPHRAGM

€ 12.00

23

1338937400
ref: 23

PLATE

€ 5.50

24

0212204103
ref: 24

SCREW,UPPER

€ 2.50

25

1325138A00
ref: 25

O RING,FLOAT CHAMBER

€ 6.50

26

1338505A11
ref: 26

HOLDER,MAIN JET

€ 14.00

27

0949195008
ref: 27

JET,MAIN(95)

€ 9.00

27

0949120019
ref: 27
E17, E22

JET,MAIN(100)

€ 7.50

28

1324713A00
ref: 28

SCREW,DRAIN

€ 5.50

29

0940406432
ref: 29
<-09404-06429

CLAMP(L:65)

€ 2.50

30

1348005A10
ref: 30

DIAPHRAGM ASSY

€ 54.50

31

1348145C10
ref: 31

SPRING

€ 5.50

32

1348438A00
ref: 32

COVER

€ 20.50

33

1360104148
ref: 33

SCREW

€ 2.50

34

0831000047
ref: 34

NUT

€ 2.00

35

0211204307
ref: 35

SCREW

€ 0.00

36

1355445C20
ref: 36

LEVER ASSY

€ 38.50

37

1337684110
ref: 37

FILTER

€ 6.50

38

1337444080
ref: 38

O-RING,NEEDLE VALVE

€ 6.00

39

1337039A00
ref: 39

VALVE ASSY,NEEDLE

€ 67.50

39

1337038E00
ref: 39
E37

VALVE ASSY,NEEDLE(NI)

€ 67.50

40

1360205A10
ref: 40

SCREW

€ 4.00

41

1325038B00
ref: 41

FLOAT

€ 32.00

42

1325420010
ref: 42

PIN,FLOAT

€ 3.00

43

0211205127
ref: 43

SCREW

€ 2.50

44

1352346110
ref: 44

GASKET,DRAIN PLUG (NAS)

€ 3.00

45

0912505122
ref: 45

SCREW(5X6)

€ 4.00

46

1341538300
ref: 46

E RING

€ 2.00

47

1367138A00
ref: 47

CLIP

€ 10.50

48

0935260103600
ref: 48
L:600->50

HOSE(6X10X600)

€ 18.00

49

1327947070
ref: 49

SCREW,PILOT

€ 11.50

49

1327947070
ref: 49
E17, E22

SCREW,PILOT

€ 11.50

50

1326847070
ref: 50

SPRING

€ 5.00

51

1329529900
ref: 51

O RING,PILOT AIR SCREW

€ 4.00

52

1329129900
ref: 52

WASHER

€ 2.00

53

1368338A20
ref: 53

HOSE ASSEMBLY

€ 70.00

54

1364138A00
ref: 54

CABLE,IDLE SYNCRO

€ 16.50
