WIRING HARNESS

VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

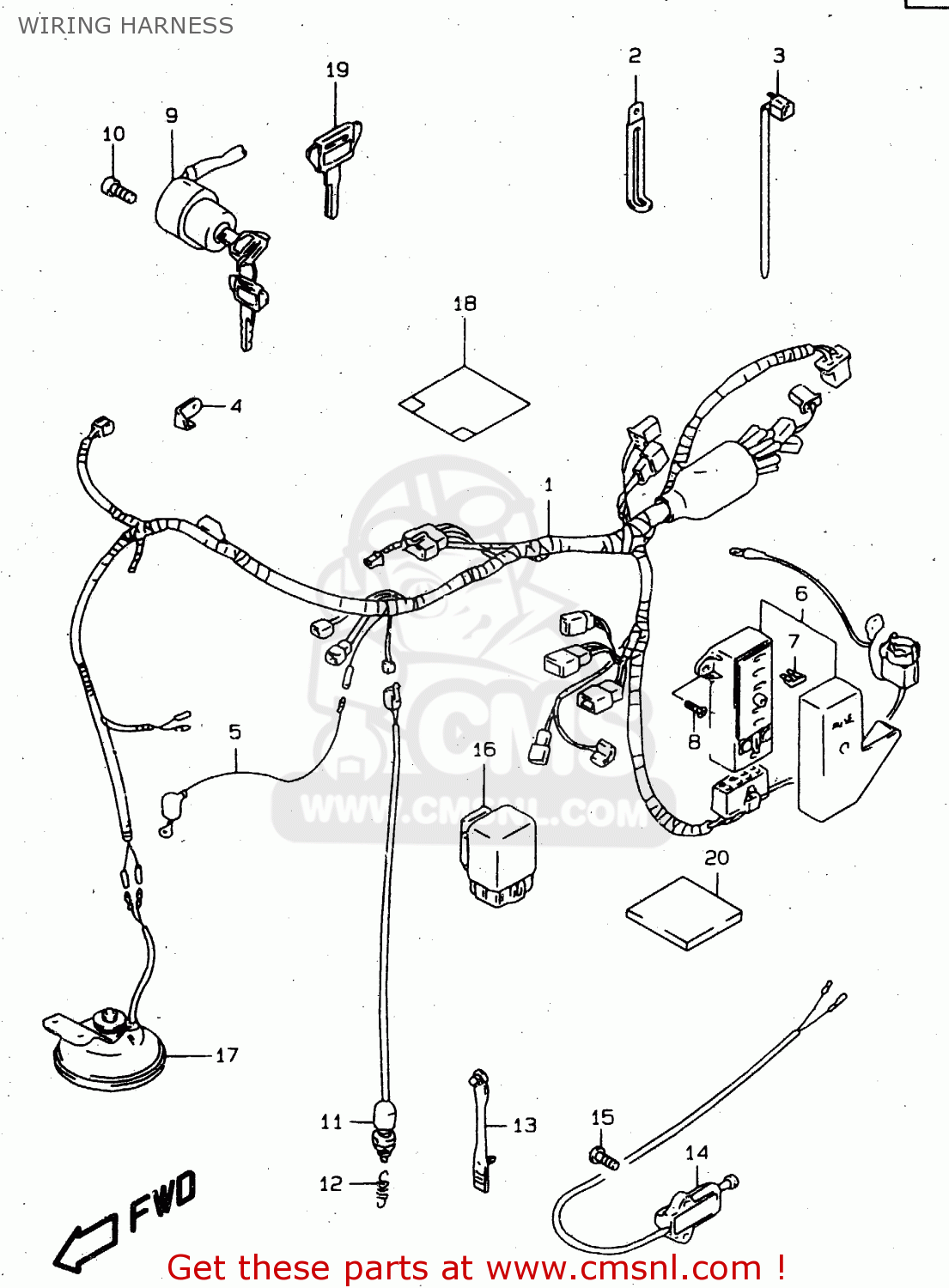

Wiring harness diagram VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

WIRING HARNESS VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
WIRING HARNESS VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
WIRING HARNESS VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3661039AE0
ref: 1
HARNESS,WIRING
3661039AE0
€ 544.00
2
0940406432
ref: 2
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
3
0940714403
ref: 3
CLAMP(L:125)
0940714403
€ 2.50
3
0940718403
ref: 3
CLAMP L:165
€ 2.50
4
3668738A00
ref: 4
PLATE,COUPLER HOLDER
€ 2.00
5
3685117E00
ref: 5
WIRE,WATER TEMP GAUGE LEAD
3685117E00
€ 7.50
6
3674039A00
ref: 6
BOX ASSY,FUSE
3674039A00
€ 93.50
7
0948110101
ref: 7
FUSE(10A)
0948110101
€ 2.50
7
0948125103
ref: 7
<-09481-25101
FUSE(25A)
0948125103
€ 2.50
8
0214206163
ref: 8
SCREW
0214206163
€ 2.50
9
3711038A04
ref: 9
SWITCH ASSY,IGNITION
3711038A04
€ 74.50
10
0713005163
ref: 10
BOLT
€ 2.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
0944306046
ref: 12
SPRING
0944306046
€ 3.50
13
0940705403
ref: 13
CLAMP,L:88
0940705403
€ 1.50
14
3784039A22
ref: 14
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
15
0211276203
ref: 15
SCREW
€ 2.50
16
3874024X50
ref: 16
RELAY ASSY
3874024X50
€ 37.50
17
3850039A00
ref: 17
HORN ASSY
3850039A00
€ 126.00
18
3661815D20
ref: 18
COVER,WIRING HARNESS
3661815D20
€ 12.00
19
3714603A00
ref: 19
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
19
3714603A10
ref: 19
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
19
3714603A20
ref: 19
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
19
3714603A30
ref: 19
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
20
3692002200
ref: 20
COVER,HARNESS
3692002200
€ 3.00
