FUEL COCK

VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

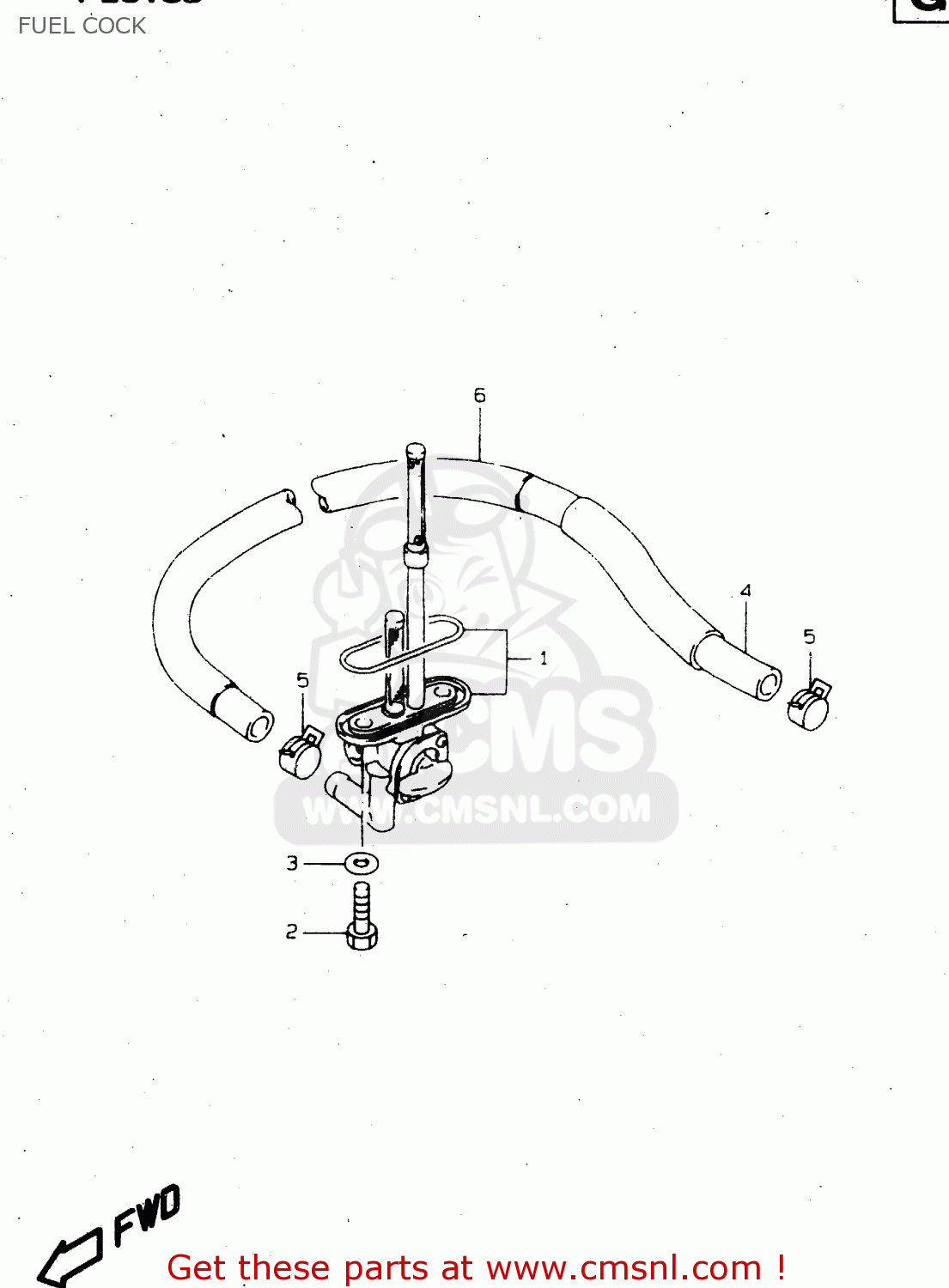

Fuel cock diagram VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

FUEL COCK VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

FUEL COCK VS800GL 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4430038A72
ref: 1

COCK ASSY,FUEL

€ 174.00

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

4432038A02
ref: 4

HOSE,FUEL PUMP & COCK

€ 11.00

5

0940111407
ref: 5

CLIP

€ 2.50

6

4431138A01
ref: 6

TUBE,FUEL HOSE

€ 13.50
