BATTERY

VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

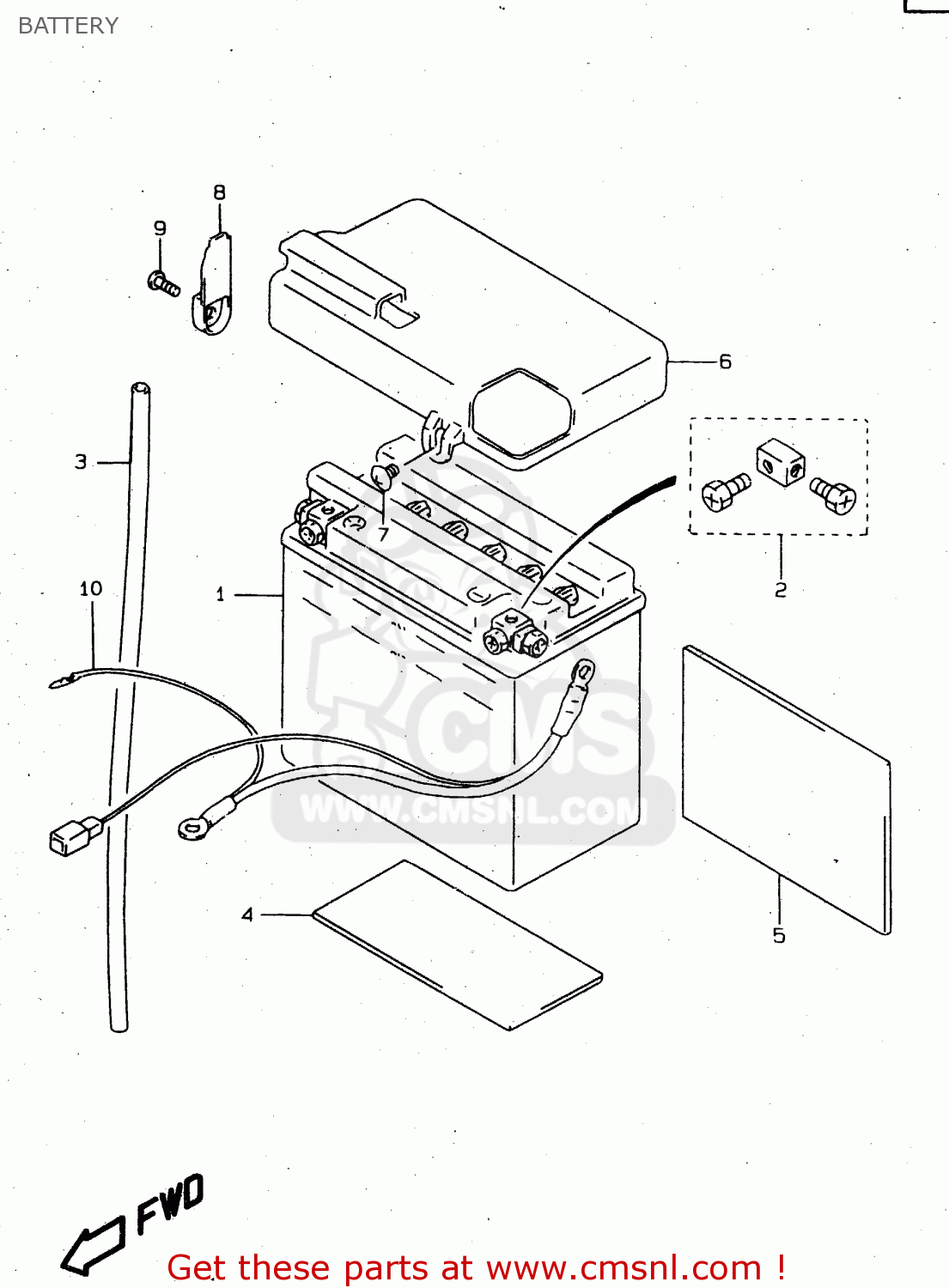

Battery diagram VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3361038A01
ref: 1

BATTERY ASSY (12V)

€ 119.50

3362638A01
ref: 2

BOLT SET,BATTERY TERMINAL

€ 22.00

3368016A10
ref: 3
L:780->200

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365207D00
ref: 5

PROTECTOR(80X80X2)

€ 4.50

3365838A30
ref: 6

COVER,BATTERY UPR

€ 8.50

0214205083
ref: 7

SCREW

€ 2.00

3365838A40
ref: 8

COVER,BATTERY TERMINAL

€ 2.00

0214205083
ref: 9

SCREW

€ 2.00

3386038A00
ref: 10

WIRE,BATTERY MINUS LEAD

€ 17.50

all assemblies
