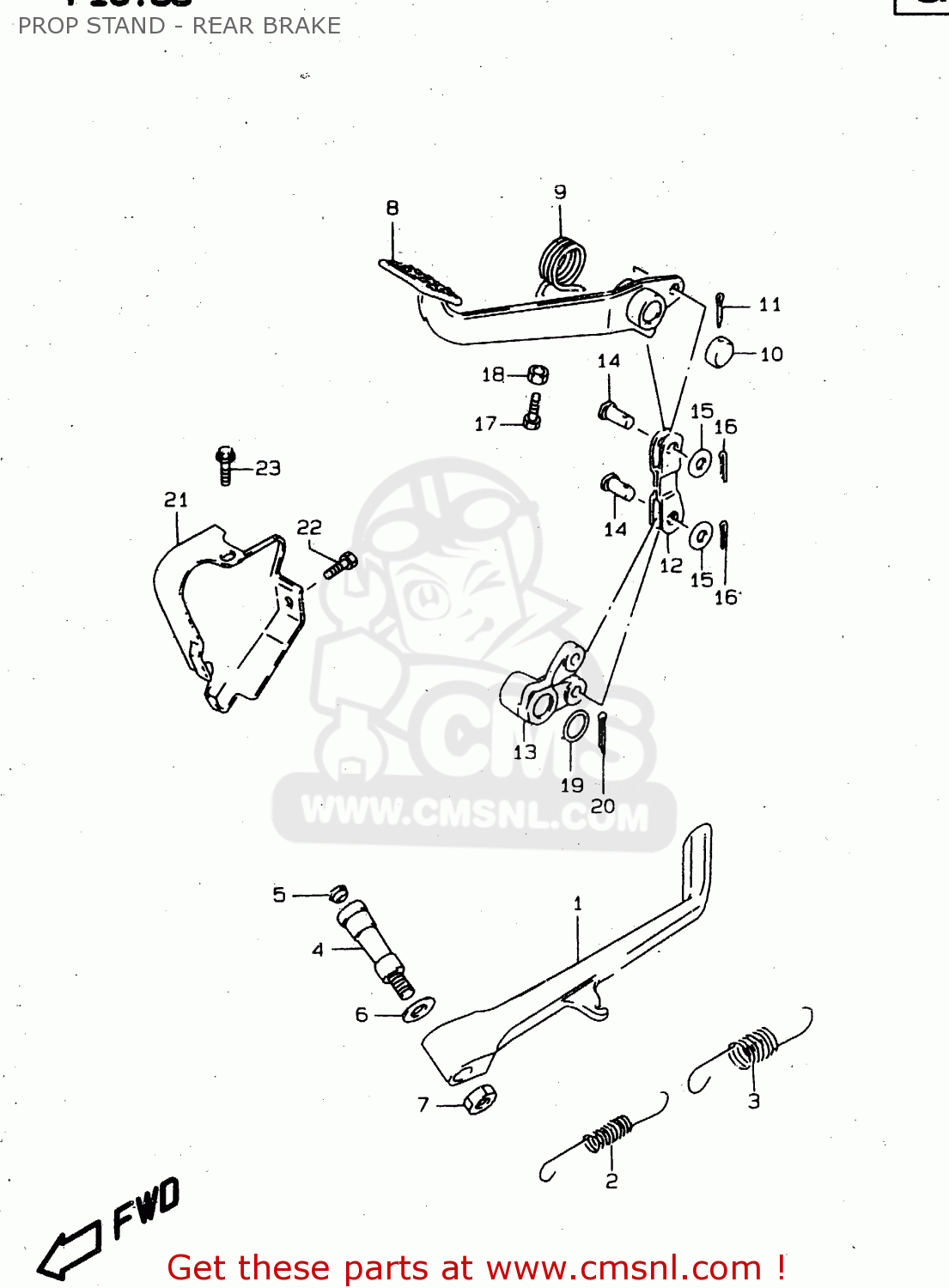

PROP STAND - REAR BRAKE - VS800GL 1999 (X) (E02 E04 E17 E18 E22 E25 E34)

ref

part #

description

quantity

1

4231038A11
ref: 1

STAND,PROP

€ 92.00

2

0944313025
ref: 2

SPRING

€ 7.50

3

0944318021
ref: 3

SPRING

€ 7.50

4

4234138B01
ref: 4

BOLT,PROP STAND

€ 9.00

5

4357534500
ref: 5

CAP

€ 1.50

6

0918115158
ref: 6

SHIM(15X24X0.5)

€ 2.50

7

0914010044
ref: 7

NUT

€ 2.50

8

4310038A31
ref: 8

PEDAL ASSY,BRAKE

€ 81.50

9

0944831034
ref: 9

SPRING

€ 5.50

10

4313507A02
ref: 10

CAP,BRAKE PEDAL

€ 7.00

11

0411130308
ref: 11

COTTER PIN

€ 1.50

12

4323038A02
ref: 12

LINK,BRAKE ROD NO.1

€ 18.50

13

4326038A22
ref: 13

ARM,BRAKE PEDAL LINK

€ 77.00

14

0920008055
ref: 14

PIN

€ 4.00

15

0832201087
ref: 15

WASHER

€ 2.00

16

0411120158
ref: 16

PIN

€ 1.50

17

0150006207
ref: 17

BOLT

€ 2.00

18

0831000067
ref: 18

NUT

€ 2.50

19

0916016043
ref: 19

WASHER(16.5X22X1)

€ 2.00

20

0411130308
ref: 20

COTTER PIN

€ 1.50

21

4329538A31
ref: 21

COVER,BRAKE

€ 57.50

22

0912806004
ref: 22
MODEL W

SCREW(6X10)

€ 1.50

22

0912806044
ref: 22
MODEL X

SCREW(6X10)

€ 1.50

23

0154706107
ref: 23

BOLT

€ 1.50

PROP STAND - REAR BRAKE

all assemblies
