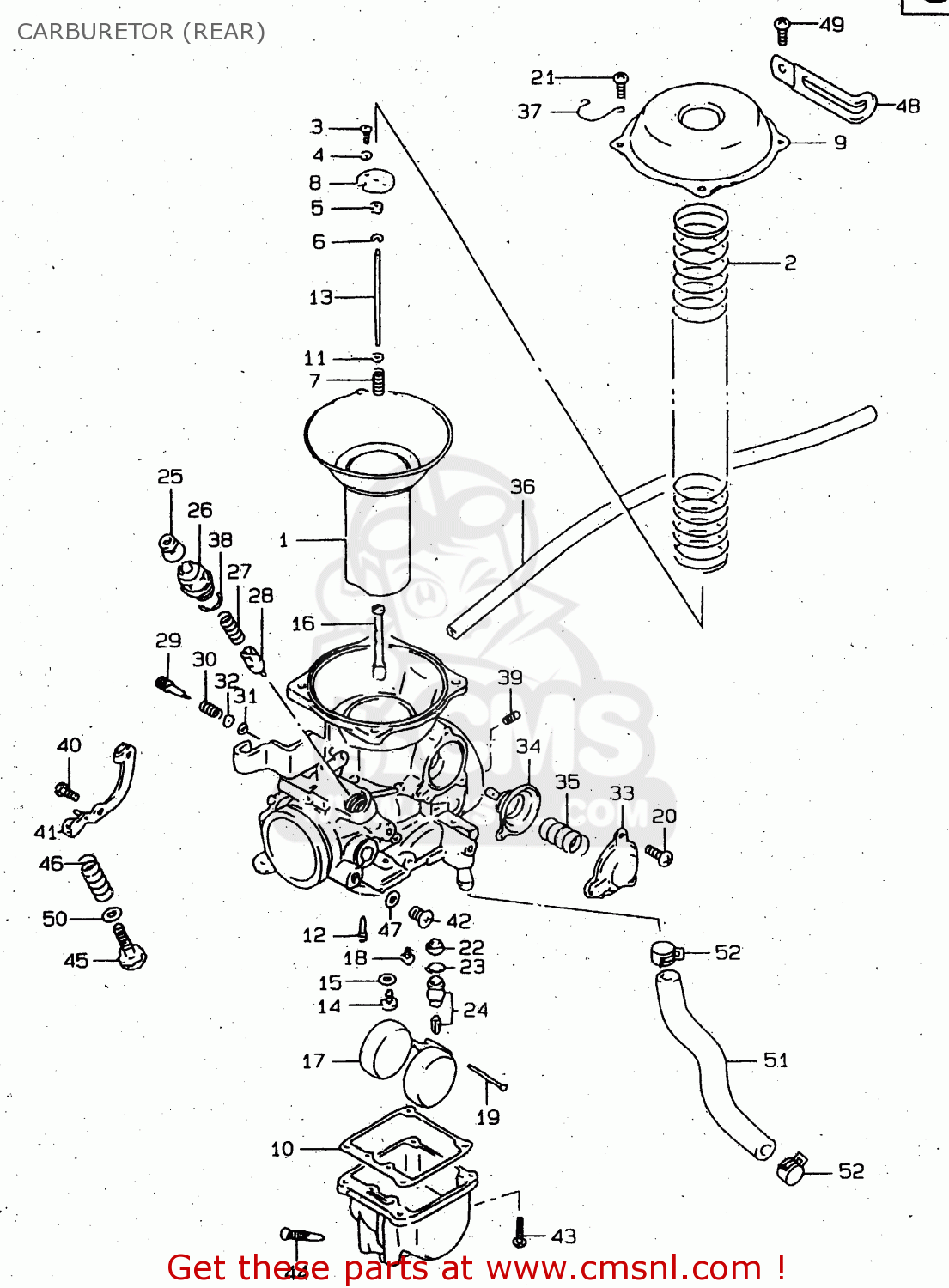

CARBURETOR (REAR)

ref

part #

description

quantity

0

1322038E90
ref: 0

CARBURETOR ASSY,RR

€ 696.00

0

1322038EA0
ref: 0
E17, E22

CARBURETOR ASSY,RR

€ 0.00

0

1322038EB0
ref: 0
E37

CARBURETOR ASSY, REAR

€ 0.00

1

1350038A10
ref: 1

DIAPHRAGM,CARBURETOR

€ 222.50

1

1350045C10
ref: 1
E17, E22

DIAPHRAGM ASSY

€ 205.00

2

1350338B00
ref: 2

SPRING,DIAPHRAGM

€ 12.00

3

0211203063
ref: 3

SCREW

€ 2.00

4

0832121033
ref: 4

WASHER,LOCK

€ 1.50

5

1338747010
ref: 5

RING

€ 7.50

6

1339410010
ref: 6

CLIP

€ 4.50

7

1338844030
ref: 7

SPRING

€ 6.00

8

1338937400
ref: 8

PLATE

€ 5.50

9

1350238A10
ref: 9

COVER,DIAPHRAGM

€ 37.50

10

1325138A10
ref: 10

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11

1338244030
ref: 11

WASHER

€ 3.50

12

0949242010
ref: 12

JET,PILOT(42.5)

€ 8.50

12

0949245016
ref: 12
E17, E22

JET,PILOT(45)

€ 12.00

13

1338345C10
ref: 13

NEEDLE,JET

€ 15.00

14

0949121014
ref: 14

JET,MAIN(107.5)

€ 8.50

15

1338203110
ref: 15

WASHER

€ 2.50

16

0949400750
ref: 16

JET,NEEDLE(P-3)

€ 37.00

17

1325223010
ref: 17

FLOAT

€ 19.00

18

1360205A10
ref: 18

SCREW

€ 4.00

19

1325492311
ref: 19

PIN,FLOAT

€ 2.00

20

0211204107
ref: 20

SCREW

€ 2.00

21

0211204087
ref: 21

SCREW

€ 1.50

22

1337684110
ref: 22

FILTER

€ 6.50

23

1337444080
ref: 23

O-RING,NEEDLE VALVE

€ 6.00

24

1337039A00
ref: 24

VALVE ASSY,NEEDLE

€ 67.50

24

1337038E00
ref: 24
E37

VALVE ASSY,NEEDLE(NI)

€ 67.50

25

1368104010
ref: 25

CAP

€ 3.00

26

1341843410
ref: 26

HOLDER,GUIDE

€ 6.50

27

1341722010
ref: 27

SPRING

€ 3.00

28

1341101400
ref: 28

PLUNGER,STARTER

€ 11.50

29

1327947070
ref: 29

SCREW,PILOT

€ 11.50

29

1327947070
ref: 29
E17, E22

SCREW,PILOT

€ 11.50

30

1326847070
ref: 30

SPRING

€ 5.00

31

1329529900
ref: 31

O RING,PILOT AIR SCREW

€ 4.00

32

1329129900
ref: 32

WASHER

€ 2.00

33

1348438A10
ref: 33

COVER

€ 16.00

34

1348005A10
ref: 34

DIAPHRAGM ASSY

€ 54.50

35

1348145C10
ref: 35

SPRING

€ 5.50

36

0935250823600
ref: 36
L:600->225

HOSE(5X8.2X600)

€ 13.00

37

1369202500
ref: 37

CLIP

€ 7.00

38

1327847090
ref: 38

O RING

€ 2.00

39

0949270004
ref: 39

JET,PILOT(70)

€ 9.50

40

1360205A30
ref: 40

SCREW

€ 4.50

41

1355445C20
ref: 41

LEVER ASSY

€ 38.50

42

0912505122
ref: 42

SCREW(5X6)

€ 4.00

43

1360104148
ref: 43

SCREW

€ 2.50

44

1324713A00
ref: 44

SCREW,DRAIN

€ 5.50

45

1326738A10
ref: 45

ADJUSTER

€ 13.00

46

1327193011
ref: 46

SPRING

€ 4.50

47

1352346110
ref: 47

GASKET,DRAIN PLUG (NAS)

€ 3.00

48

0940406432
ref: 48

CLAMP(L:65)

€ 2.50

49

0214204083
ref: 49

SCREW

€ 1.50

50

1327737100
ref: 50

WASHER

€ 2.00

51

1368338E00
ref: 51

HOSE,FUEL PUMP & CARBURETOR

€ 21.50

52

0940111407
ref: 52

CLIP

€ 2.50

all assemblies
